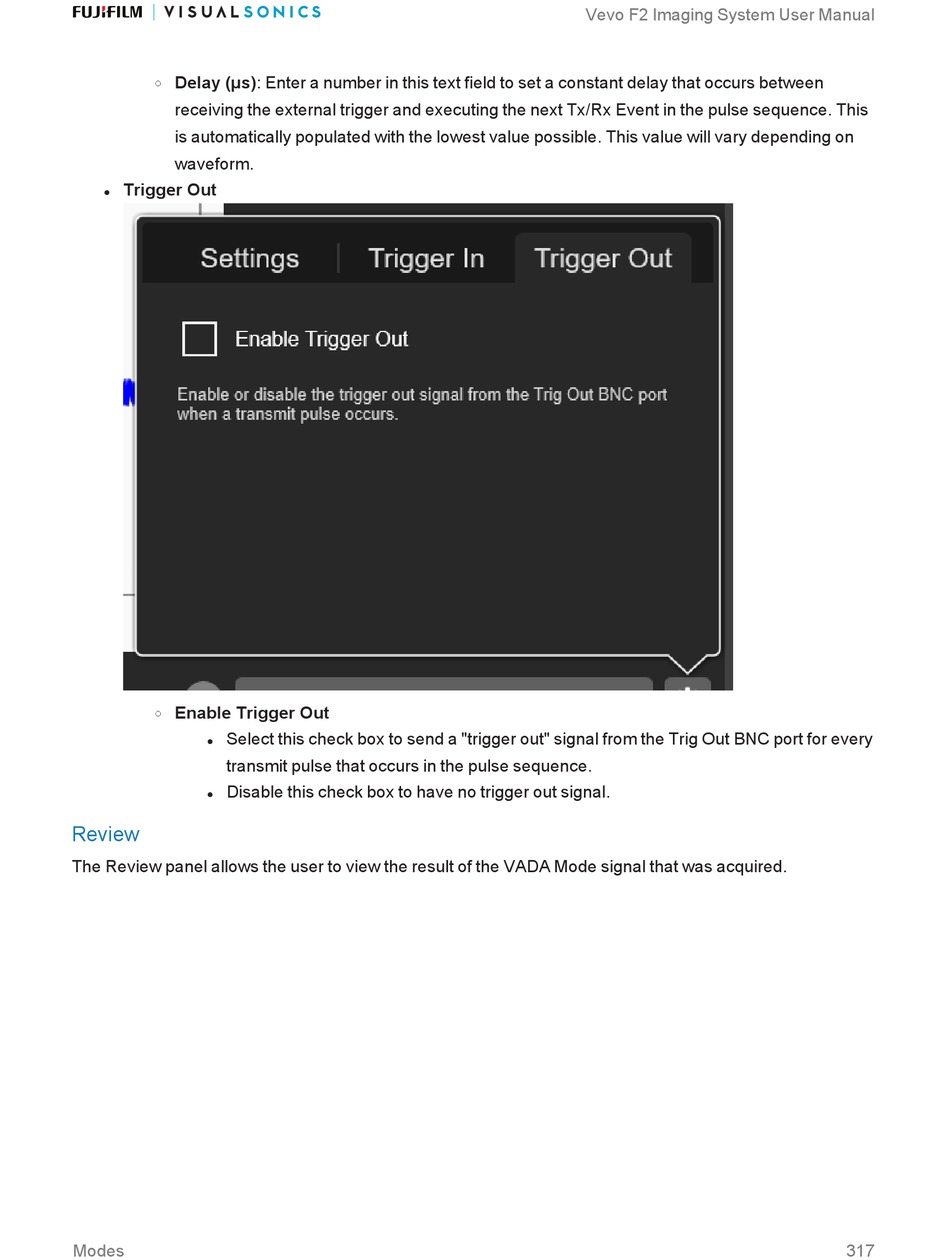

FujiFilm VisualSonics Vevo F2 User Manual page 317

Delay (µs): Enter a number in this text field to set a constant delay that occurs between
o
receiving the external trigger and executing the next Tx/Rx Event in the pulse sequence. This
is automatically populated with the lowest value possible. This value will vary depending on
waveform.
Trigger Out
l
Enable Trigger Out
o
Select this check box to send a "trigger out" signal from the Trig Out BNC port for every
l
transmit pulse that occurs in the pulse sequence.
Disable this check box to have no trigger out signal.
l
Review
The Review panel allows the user to view the result of the VADA Mode signal that was acquired.
