The TGC controls are five sliders that affect the gain applied at different depths. Use these controls to
compensate for minor attenuation of the ultrasound signal as it returns through deeper tissue.
The five sliders are arranged in order of depth. The top slider controls the gain of the field nearest to the
transducer, while the bottom slider controls the gain of the field furthest from the transducer.
From top (nearest) to bottom (furthest), the five sliders are named:
Near Gain
l
Near Middle Gain
l
Middle Gain
l
Far Middle Gain
l
Far Gain
l
Slide any of the TGC sliders left (darker) or right (brighter) to adjust the brightness of that band of the
ultrasound image.
Note: TGC settings can be saved using the Save Preset control. For more
information, refer to Presets on page 118.
Modes

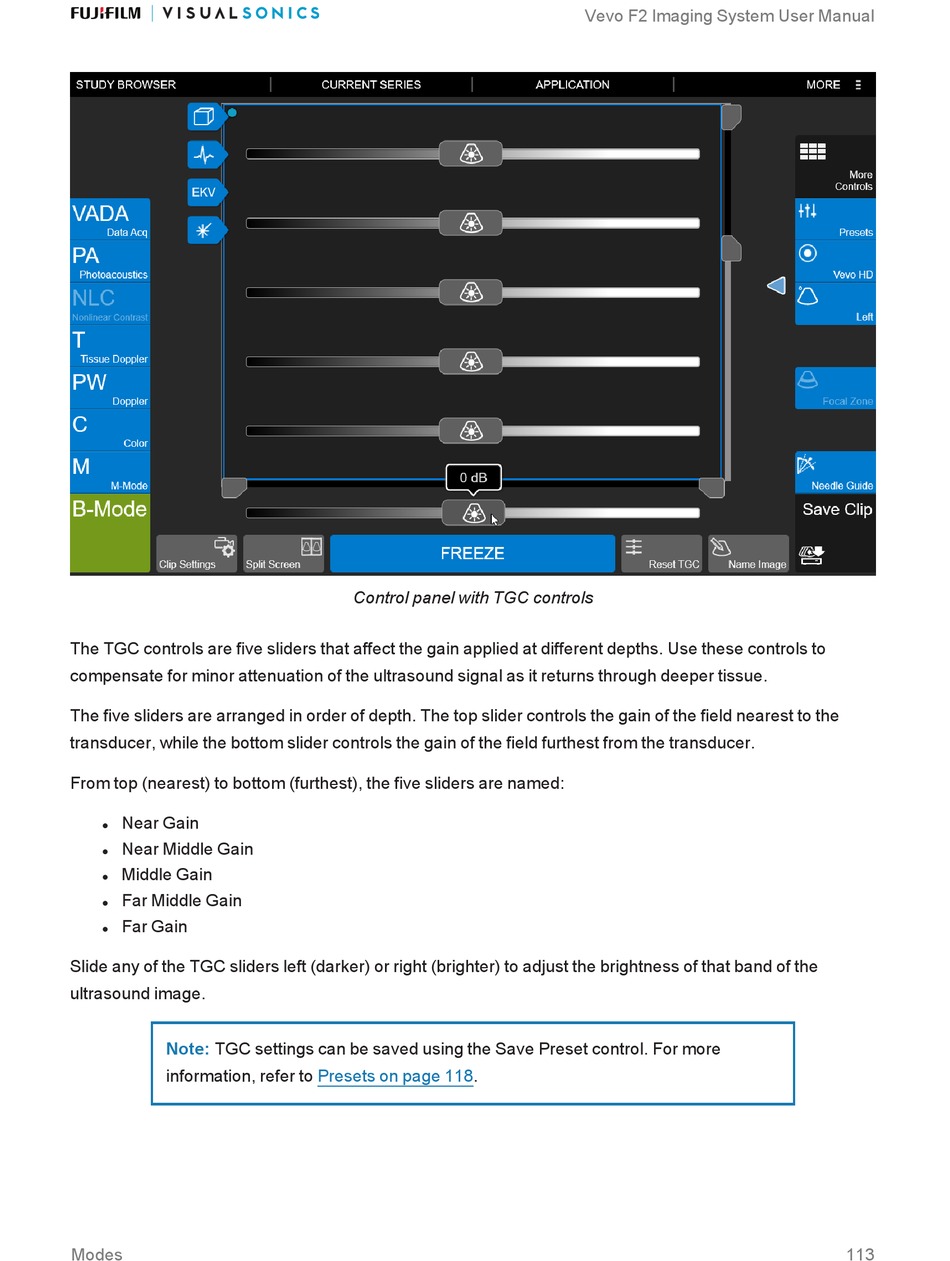

Control panel with TGC controls
