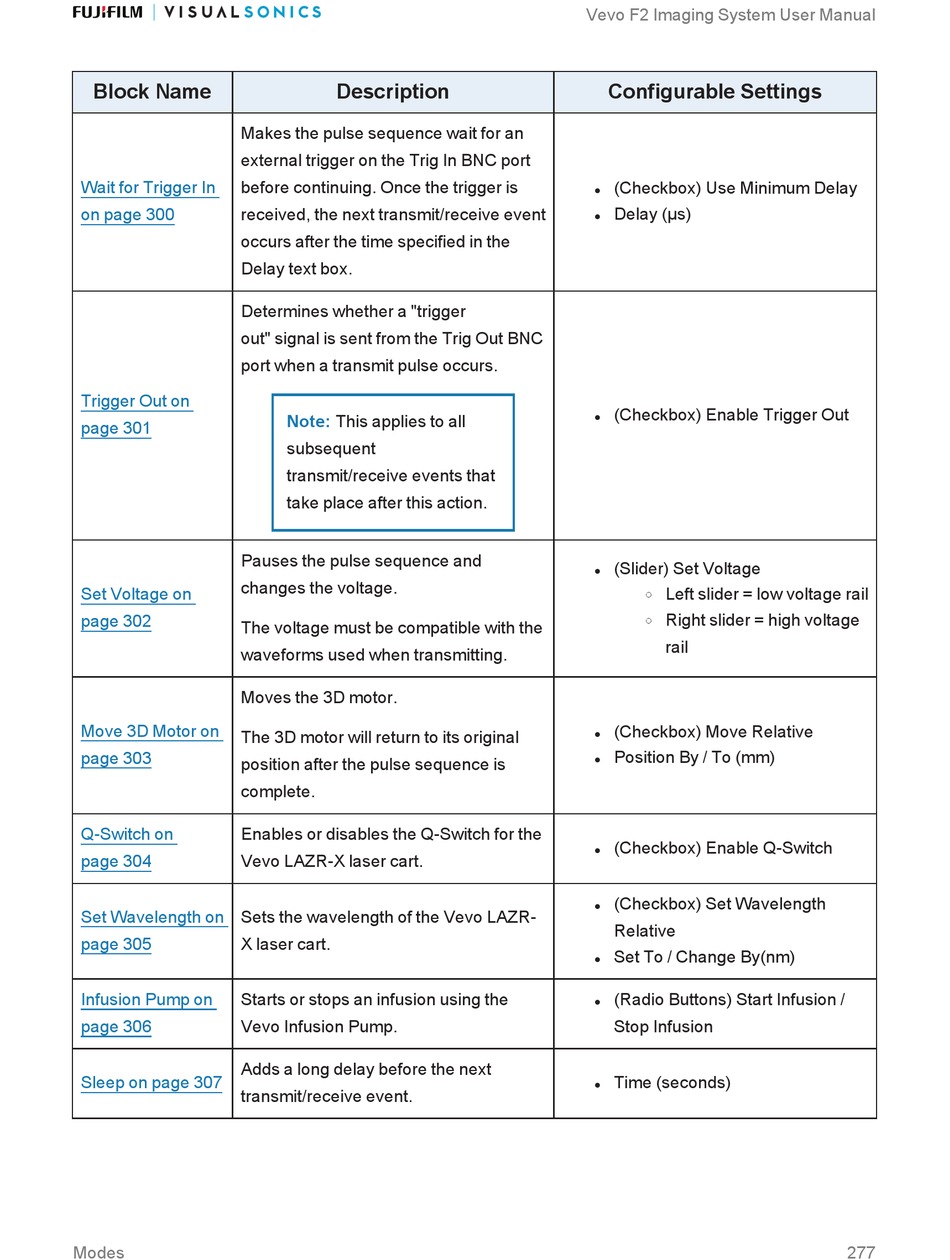

FujiFilm VisualSonics Vevo F2 User Manual page 277

Block Name
Makes the pulse sequence wait for an
external trigger on the Trig In BNC port
Wait for Trigger In before continuing. Once the trigger is
on page 300 received, the next transmit/receive event
occurs after the time specified in the
Delay text box.
Determines whether a "trigger
out" signal is sent from the Trig Out BNC
port when a transmit pulse occurs.
Trigger Out on
page 301
Pauses the pulse sequence and
changes the voltage.
Set Voltage on
page 302
The voltage must be compatible with the
waveforms used when transmitting.
Moves the 3D motor.
Move 3D Motor on
The 3D motor will return to its original
page 303
position after the pulse sequence is
complete.
Q-Switch on Enables or disables the Q-Switch for the
page 304 Vevo LAZR-X laser cart.
Set Wavelength on Sets the wavelength of the Vevo LAZR-
page 305 X laser cart.
Infusion Pump on Starts or stops an infusion using the
page 306 Vevo Infusion Pump.
Adds a long delay before the next
Sleep on page 307
transmit/receive event.
Modes
Description
Note: This applies to all
subsequent
transmit/receive events that
take place after this action.
Vevo F2 Imaging System User Manual
Configurable Settings
(Checkbox) Use Minimum Delay
l
Delay (µs)
l
(Checkbox) Enable Trigger Out
l
(Slider) Set Voltage
l
Left slider = low voltage rail
o
Right slider = high voltage
o
rail
(Checkbox) Move Relative
l
Position By / To (mm)
l
(Checkbox) Enable Q-Switch
l
(Checkbox) Set Wavelength
l
Relative
Set To / Change By(nm)
l
(Radio Buttons) Start Infusion /
l
Stop Infusion
Time (seconds)
l
