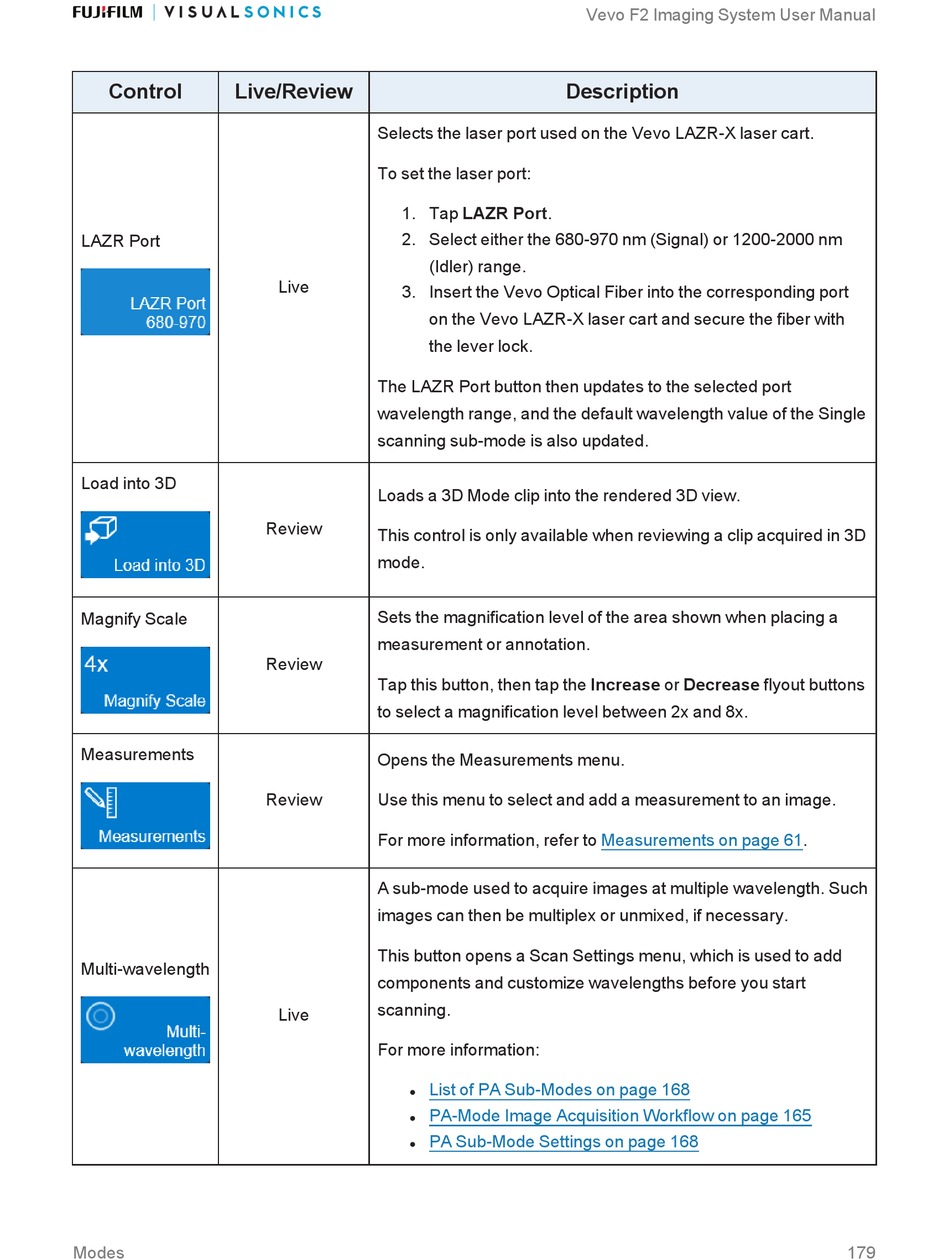

Control Live/Review
LAZR Port
Load into 3D
Magnify Scale
Measurements
Multi-wavelength
Modes
Selects the laser port used on the Vevo LAZR-X laser cart.
To set the laser port:
1. Tap LAZR Port.
2. Select either the 6 80-970 nm (Signal) or 1200-2000 nm
(Idler) range.
Live
3. Insert the Vevo Optical Fiber into the corresponding port
on the Vevo LAZR-X laser cart and secure the fiber with
the lever lock.
The LAZR Port button then updates to the selected port
wavelength range, and the default wavelength value of the Single
scanning sub-mode is also updated.
Loads a 3D Mode clip into the rendered 3D view.
Review
This control is only available when reviewing a clip acquired in 3D
mode.
Sets the magnification level of the area shown when placing a
measurement or annotation.
Review
Tap this button, then tap the Increase or Decrease flyout buttons
to select a magnification level between 2x and 8x.
Opens the Measurements menu.
Review Use this menu to select and add a measurement to an image.
For more information, refer to Measurements on page 61.
A sub-mode used to acquire images at multiple wavelength. Such
images can then be multiplex or unmixed, if necessary.
This button opens a Scan Settings menu, which is used to add
components and customize wavelengths before you start
scanning.
Live
For more information:
List of PA Sub-Modes on page 168
l
PA-Mode Image Acquisition Workflow on page 165
l
PA Sub-Mode Settings on page 168
l
