Vevo F2 Imaging System User Manual
VADA Mode
Vevo Advanced Data Acquisition (VADA) Mode is a unique mode specifically designed for ultrasound
research. It provides individual raw channel data from the transducer, before the data has been processed
to create an ultrasound image.

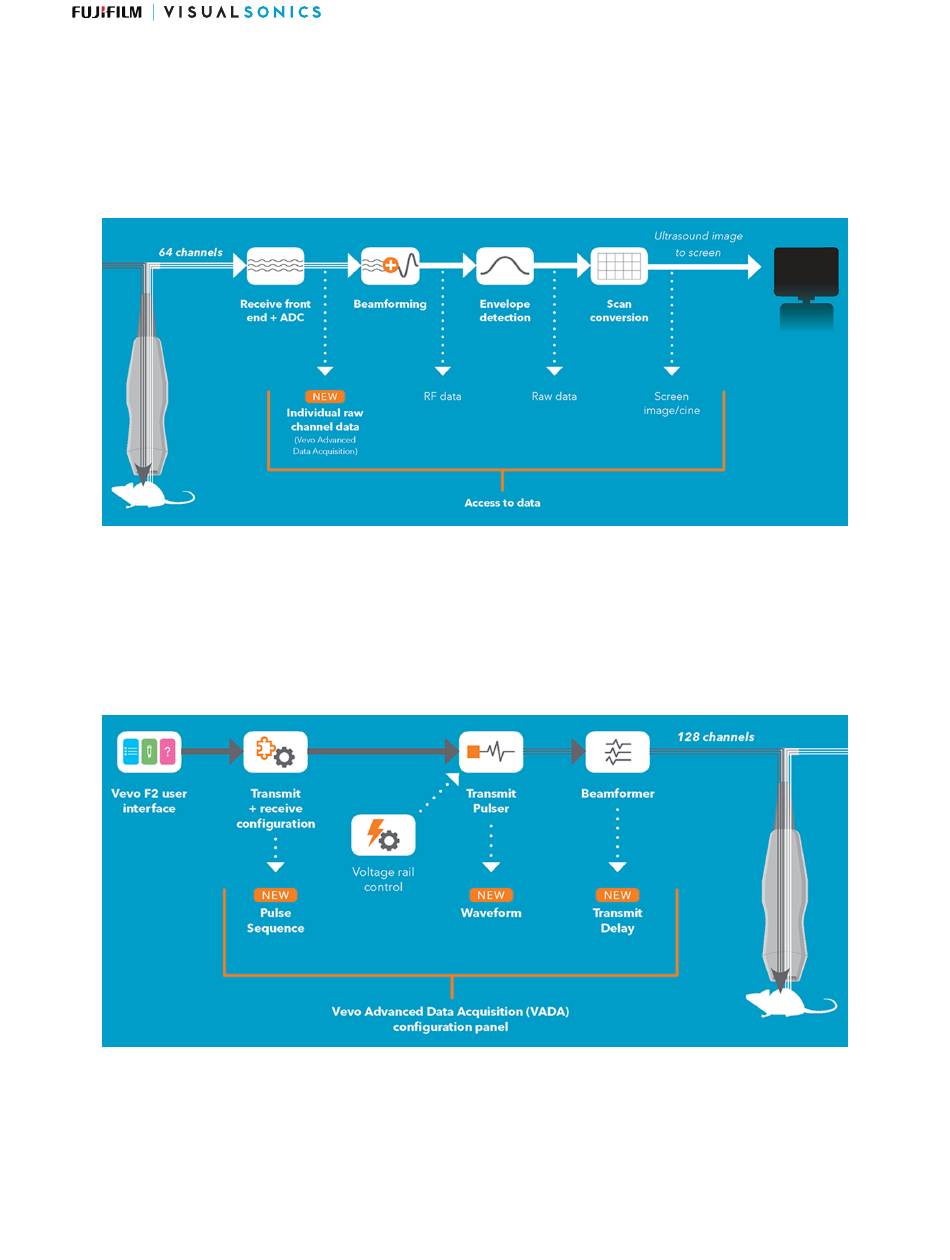

VADA Mode provides raw channel data, taken before any processing steps
Unlike other modes, VADA Mode does not display image data on the image display because it is a data
acquisition mode, and the acquired data is not reconstructed. Instead, VADA Mode displays raw channel
data on the image display.
Signal Customization in VADA Mode
The steps involved in forming an ultrasound signal
VADA Mode features a configuration panel that allows the user to customize what is transmitted by the
ultrasound system. The configuration panel consists of a set of subpanels:
Modes 236
