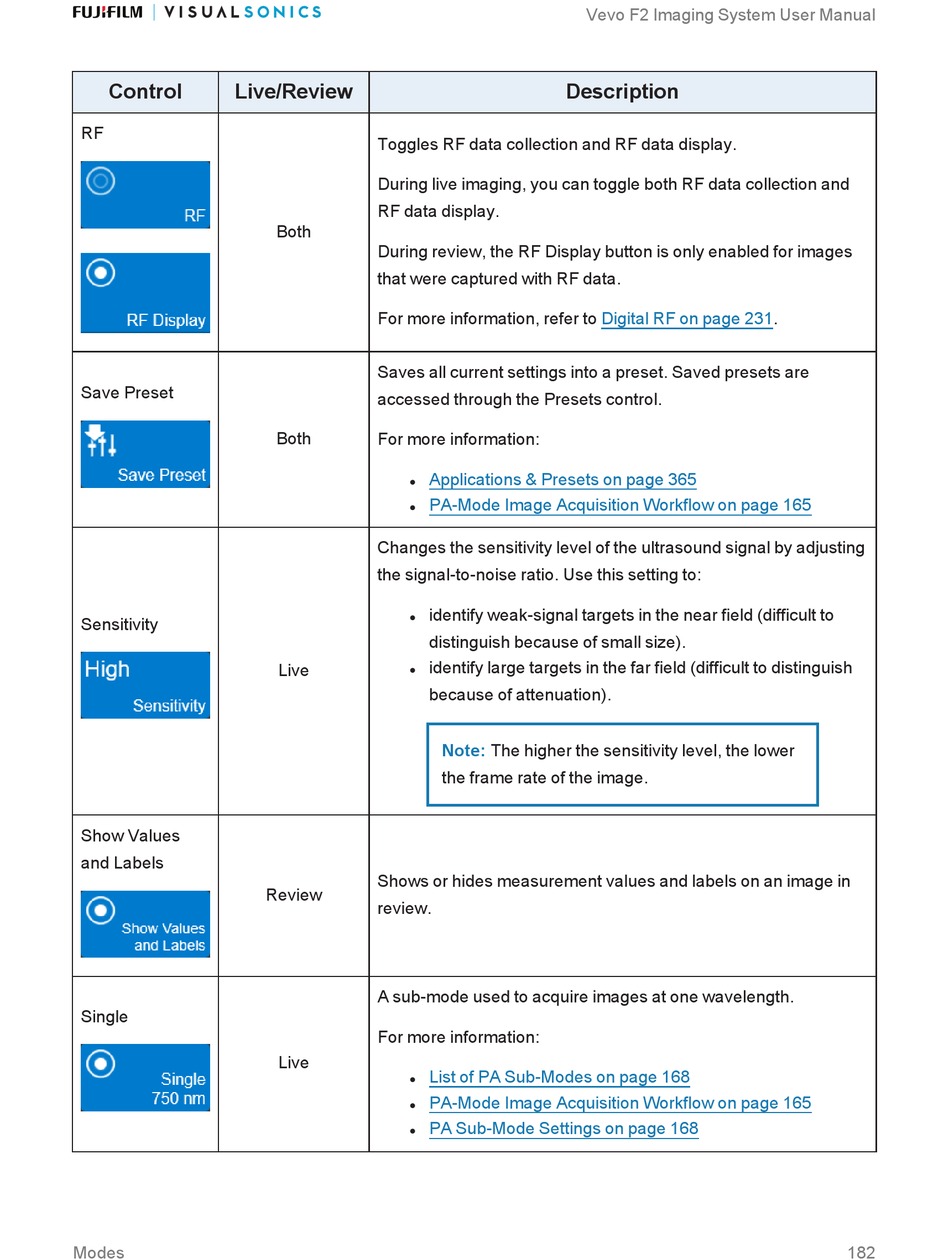

FujiFilm VisualSonics Vevo F2 User Manual page 182

Control Live/Review
RF
Save Preset
Sensitivity
Show Values
and Labels
Single
Modes
Toggles RF data collection and RF data display.
During live imaging, you can toggle both RF data collection and
RF data display.
Both
During review, the RF Display button is only enabled for images
that were captured with RF data.
For more information, refer to Digital RF o
Saves all current settings into a preset. Saved presets are
accessed through the Presets control.
Both For more information:
Applications & Presets on page 365
l
PA-Mode Image Acquisition Workflow on page 165
l
Changes the sensitivity level of the ultrasound signal by adjusting
the signal-to-noise ratio. Use this setting to:
identify weak-signal targets in the near field (difficult to
l
distinguish because of small size).
identify large targets in the far field (difficult to distinguish
Live
l
because of attenuation).
Note:
the frame rate of the image.
Shows or hides measurement values and labels on an image in
Review
review.
A sub-mode used to acquire images at one wavelength.
For more information:
Live
List of PA Sub-Modes on page 168
l
PA-Mode Image Acquisition Workflow on page 165
l
PA Sub-Mode Settings on page 168
l
Vevo F2 Imaging System User Manual
Description
The higher the sensitivity level, the lower
n page 231.
