The system starts scanning in the selected PA sub-mode, with the following changes:
The image display interface switches to PA-Mode, and shows additional data related to the
o
selected sub-mode (such as wavelength data when in Single mode).

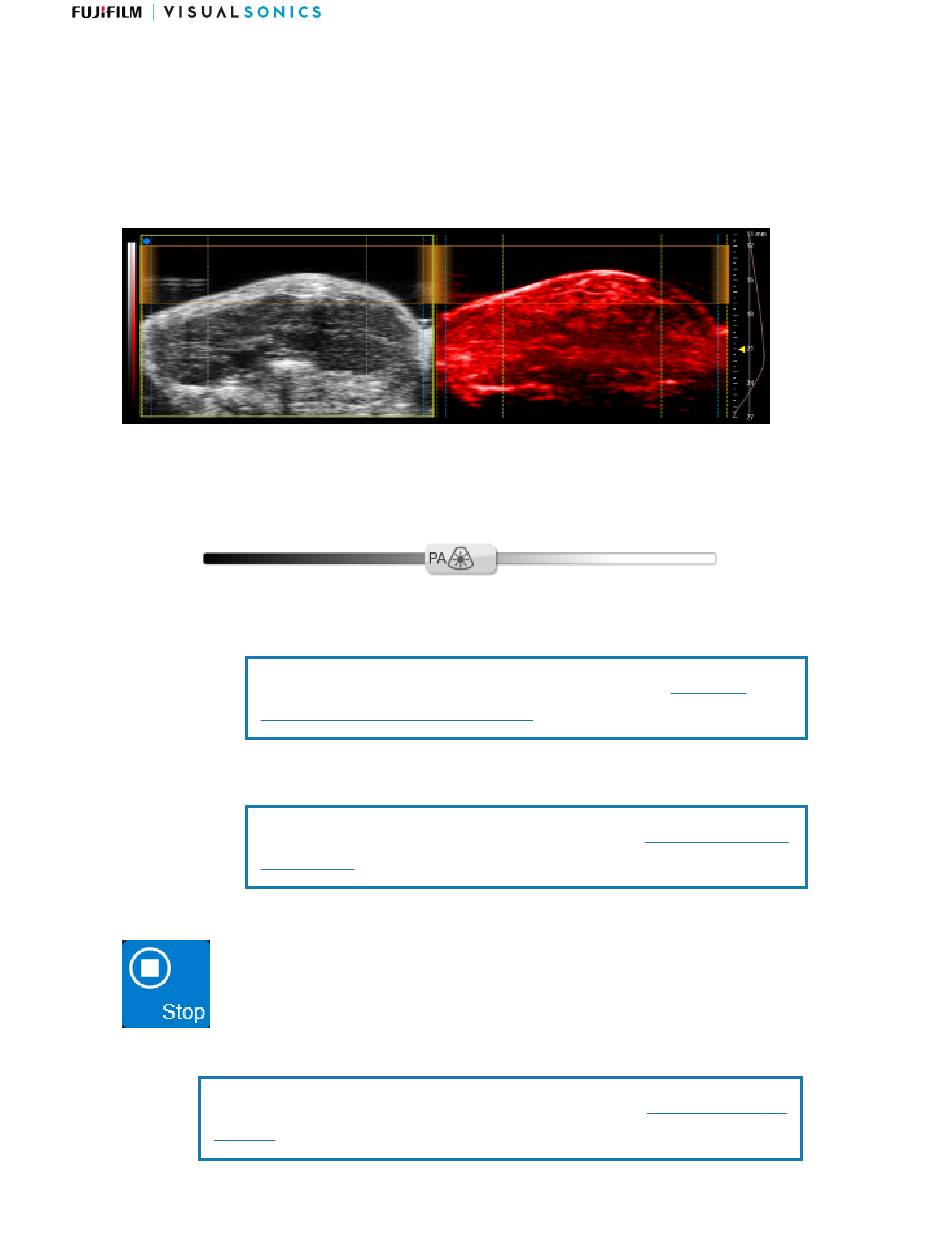

The imaging area switches to the side-by-side PA-Mode image area, with the B-Mode window
o
on the left and the PA-Mode window on the right. Both windows show live acquisition data.
The system begins storing data in the acquisition buffer.
o
11. Use the control panel to make any adjustments to the interface or scan as necessary. For example:
Change the display layout to B-Mode Only, Both, PA Only, or Side by Side.
o
Tap Freeze to freeze the live image.
o
Adjust the PA-Mode gain slider.
o
If the PA-Mode gain slider is adjusted, five Time Gain Compensation (TGC) sliders appear.
Adjust these as necessary.
Adjust any other controls as needed.
o
12. When imaging is complete, tap Stop.
13. To save the image, tap Save Clip or Save Frame.
Note: For more information about saving images, refer to Saving Images on
page 98
Modes
Note: For more information about gain sliders, refer to PA-Mode
Control Panel Interface on page 162.
Note: For more information about controls, refer to PA-Mode Controls
on page 176.
