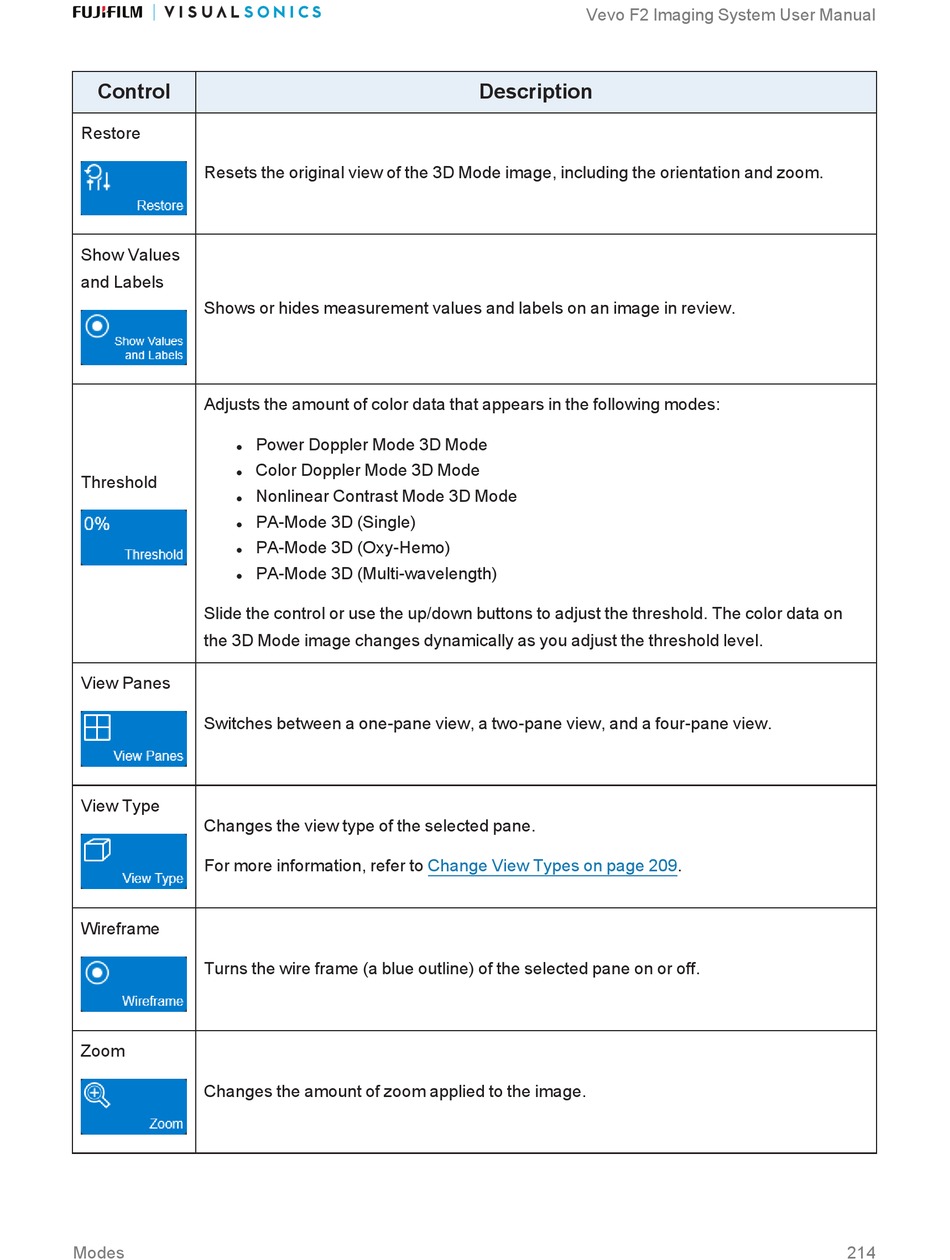

FujiFilm VisualSonics Vevo F2 User Manual page 214

Control
Restore
Resets the original view of the 3D Mode image, including the orientation and zoom.
Show Values
and Labels
Shows or hides measurement values and labels on an image in review.
Adjusts the amount of color data that appears in the following modes:
l
l
Threshold
l
l
l
l
Slide the control or use the up/down buttons to adjust the threshold. The color data on
the 3D Mode image changes dynamically as you adjust the threshold level.
View Panes
Switches between a one-pane view, a two-pane view, and a four-pane view.
View Type
Changes the view type of the selected pane.
For more information, refer to Change View Types on page 209.
Wireframe
Turns the wire frame (a blue outline) of the selected pane on or off.
Zoom
Changes the amount of zoom applied to the image.
Modes
Power Doppler Mode 3D Mode
Color Doppler Mode 3D Mode
Nonlinear Contrast Mode 3D Mode
PA-Mode 3D (Single)
PA-Mode 3D (Oxy-Hemo)
PA-Mode 3D (Multi-wavelength)
Vevo F2 Imaging System User Manual
Description
214
