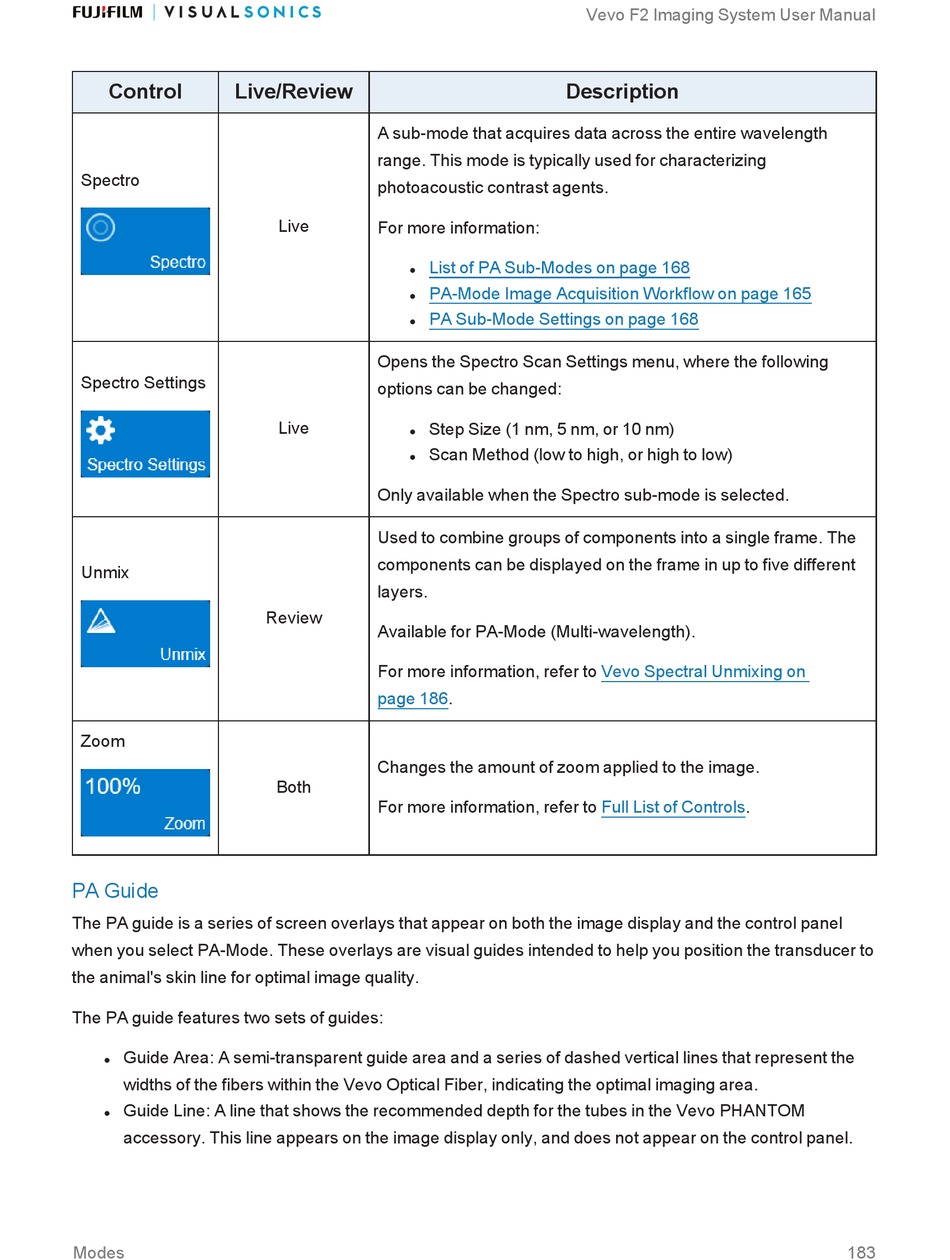

Control Live/Review
Spectro
Spectro Settings
Unmix
Zoom
PA Guide
The PA guide is a series of screen overlays that appear on both the image display and the control panel
when you select PA-Mode. These overlays are visual guides intended to help you position the transducer to
the animal's skin line for optimal image quality.
The PA guide features two sets of guides:
Guide Area: A semi-transparent guide area and a series of dashed vertical lines that represent the
l
widths of the fibers within the Vevo Optical Fiber, indicating the optimal imaging area.
Guide Line: A line that shows the recommended depth for the tubes in the Vevo PHANTOM
l
accessory. This line appears on the image display only, and does not appear on the control panel.
Modes
A sub-mode that acquires data across the entire wavelength
range. This mode is typically used for characterizing
photoacoustic contrast agents.
Live
For more information:
List of PA Sub-Modes on page 168
l
PA-Mode Image Acquisition Workflow on page 165
l
PA Sub-Mode Settings on page 168
l
Opens the Spectro Scan Settings menu, where the following
options can be changed:
Live
Step Size (1 nm, 5 nm, or 10 nm)
l
Scan Method (low to high, or high to low)
l
Only available when the Spectro sub-mode is selected.
Used to combine groups of components into a single frame. The
components can be displayed on the frame in up to five different
layers.
Review
Available for PA-Mode (Multi-wavelength).
For more information, refer to Vevo Spectral Unmixing on
page 186.
Changes the amount of zoom applied to the image.
Both
For more information, refer to Full List of Controls.
