FujiFilm FCR PRIMA T2 Operation Manual

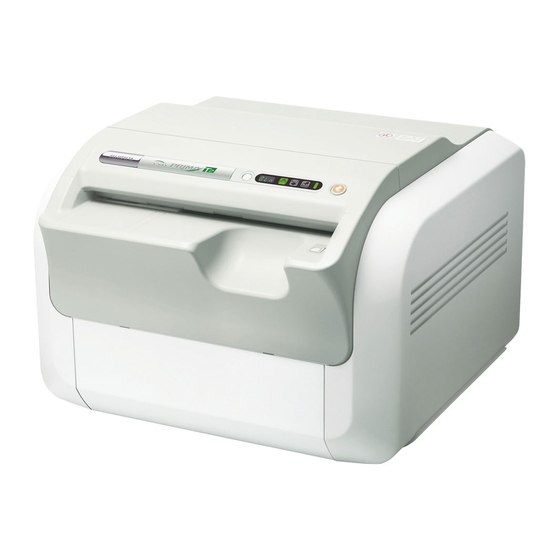

Fcr prima t2 (cr-ir 392) is equipment designed to scan an x-ray image formed on an imaging plate
Hide thumbs Also See for FCR PRIMA T2:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
(CR-IR 392)
Operation Manual
897N102546
1st Edition
This Operation Manual describes details on how to operate the FCR PRIMA
T2 (CR-IR 392) and cautions to be observed when operating it.
Please read the Operation Manual thoroughly before actually operating the
FCR PRIMA T2 (CR-IR 392) system. After reading this manual, store it nearby
the FCR PRIMA T2 (CR-IR 392) so that you can see it whenever necessary.
For Safe Operation
Product Overview

Basic Operation

Care and
Maintenance
Appendix
Maintenance and
Inspection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCR PRIMA T2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FujiFilm FCR PRIMA T2

Summary of Contents for FujiFilm FCR PRIMA T2

  • Page 1: Basic Operation

    T2 (CR-IR 392) and cautions to be observed when operating it. Please read the Operation Manual thoroughly before actually operating the FCR PRIMA T2 (CR-IR 392) system. After reading this manual, store it nearby the FCR PRIMA T2 (CR-IR 392) so that you can see it whenever necessary. 897N102546...
  • Page 2 FCR PRIMA T2 Operation Manual 897N102546...

  • Page 3: How To Read This Manual

    This Operation Manual is applicable to the following software. • FCR PRIMA T2 main unit software V2.0 or later The FCR PRIMA T2 (CR-IR 392) is equipment designed to scan an X-ray image formed on an imaging plate (IP), being an image reading unit used for the CR-IR 392 Fuji Computed Radiography system.

  • Page 4: Table Of Contents

    Precautions to be Observed When Using the Electric Medical Equipment ..... 1-2 Safety ........................1-3 Electromagnetic Compatibility (EMC) ..............1-5 Precautions to Take When Using the FCR PRIMA T2 (CR-IR 392) ......1-9 Location of Each Label and Mark ................1-10 1.6.1 Locations .......................

  • Page 5: Chapter 1 For Safe Operation

    This equipment has been designed on the assumption that the patient would not come into direct contact with it or for operation by appropriately trained operator. Process waste correctly, as stipulated by local law or any regulations that apply. FCR PRIMA T2 Operation Manual 897N102546...

  • Page 6: Precautions To Be Observed When Using The Electric Medical Equipment

    8-1. When subjecting patients (particularly infants and pregnant women) to radiation, make sure not to exceed the necessary time and dose. Also, ensure that radiation is contained within the region for exposure. 8-2. Follow the Operation Manual and operate the equipment correctly. FCR PRIMA T2 Operation Manual 897N102546...

  • Page 7: Safety

    (perpendicular) : 14°~20° WARNING The FCR PRIMA T2 (CR-IR 392) incorporates a Class 3B laser with maximum output of 68.2 mW. To prevent exposure to its laser beams, observe the following precautions. ● Never open or remove the protective covers.
  • Page 8 ● Check that all the cables are properly and perfectly connected. ● When using the equipment within the environment where the patient may get into touch with it, optionally connect additional protective earth conductor (FCR PRIMA T2 (CR-IR 392)). ● When using the equipment within the environment where the patient may get into touch with it, the user must not touch the equipment’s exterior, such as covers and metal...

  • Page 9: Electromagnetic Compatibility (Emc)

    FCR PRIMA T2 (CR-IR 392). • The FCR PRIMA T2 (CR-IR 392) should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the FCR PRIMA T2 (CR-IR 392) should be observed to verify normal operation in the configuration in which it will be used. FCR PRIMA T2 Operation Manual 897N102546...
  • Page 10 3 A/m 3 A/m location in a typical commercial or IEC 61000-4-8 hospital environment. EN 61000-4-8 NOTE: U is the a.c. mains voltage prior to application of the test level. FCR PRIMA T2 Operation Manual 897N102546...
  • Page 11 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the CR-IR 392 is used exceeds the applicable RF compliance, the CR-IR 392 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the CR-IR 392. b Over the frequency range 150 kHz to 80 MHz, field strength should be less than 3 V/m. FCR PRIMA T2 Operation Manual 897N102546...
  • Page 12 (W) according to the transmitter manufacturer. NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. FCR PRIMA T2 Operation Manual 897N102546...

  • Page 13: Precautions To Take When Using The Fcr Prima T2 (Cr-Ir 392)

    392), the FCR PRIMA T2 (CR-IR 392) may topple over and cause injury. 4. Do not sit on the FCR PRIMA T2 (CR-IR 392) or apply your weight to it by leaning forward and placing your hands on the FCR PRIMA T2 (CR-IR 392) to keep the FCR PRIMA T2’s (CR-IR 392) cassette set unit from breaking and to prevent possible injury from fragments or the like.

  • Page 14: Location Of Each Label And Mark

    Be sure to use the power cord Use this terminal to connect the our official dealer additional protective ground wire. or local presentative provided. Caution Label 2 Additional Protective Ground Mark Cassette Insertion Label 1-10 FCR PRIMA T2 Operation Manual 897N102546...
  • Page 15 Be sure to use the power cord Use this terminal to connect the our official dealer additional protective ground wire. or local presentative provided. Caution Label 2 Additional Protective Ground Mark Cassette Insertion Label 1-11 FCR PRIMA T2 Operation Manual 897N102546...

  • Page 16: Safety And Other Signs

    1.6.2 Safety and Other Signs The following safety signs are used in the FCR PRIMA T2 (CR-IR 392) labels or on its body. Sign Description This symbol indicates compliance of the equipment with Directive 93/42/EEC. Attention, consult ACCOMPANYING DOCUMENTS. Power-OFF...

  • Page 17: Chapter 2 Product Overview

    (IP). The IP is used as an X-ray image detector. It records the image information of an image captured by an X-ray exposure. This section explains features of a system employing the FCR PRIMA T2 (CR-IR 392) and FCR PRIMA T2 (CR-IR 392)-equipped system configuration examples.

  • Page 18: Units Names And The Functions

    2.2 Units Names and the Functions Described below are units component of the FCR PRIMA T2 (CR-IR 392) main unit and the Operation Panel. 2.2.1 FCR PRIMA T2 (CR-IR 392) Main Unit Left-side cover Right-side cover Front cover Rear cover...

  • Page 19: Operation Panel

    Function Stand-by Switch Turns on/off the power to the FCR PRIMA T2 (CR-IR 392). This switch is used when the FCR PRIMA T2 (CR-IR 392) is started up singly. When the buzzer sounds because of an error or detection of excessive amount of X-rays and this switch is pressed, the buzzer stops and the cassette lock is released.

  • Page 20: Operation Panel Display At The Time Of Startup/Shutdown

    Mode Indicator Removal Ready Display LED X-ray Display Lamp Lamp Lamp Lamp Status FCR PRIMA T2 initialization completion/Console connected FCR PRIMA T2 is in shutting down ON(green) operation Stand-by switch is OFF FCR PRIMA T2 Operation Manual 897N102546...

  • Page 21: Chapter 3 Basic Operation

    Mode Indicator Lamp The power/erasing mode indicator lamp will be turned from green to orange. Insert a cassette. Erasure will be performed. Upon completion of the erasure, the cassette removal lamp will blink. Remove the cassette. FCR PRIMA T2 Operation Manual 897N102546...

  • Page 22: System Startup/Shutdown And Image Reading (Console)

    3.2 System Startup/Shutdown and Image Reading (Console) The startup and shutdown of the FCR PRIMA T2 (CR-IR 392) is performed under the control of the Console’s power ON/OFF switch. To start up only the FCR PRIMA T2 (CR-IR 392), use the procedure described in [3.3 Starting Up/ Shutting Down the FCR PRIMA T2 Main Unit].

  • Page 23: Shutting Down The System

    3.2.2 Shutting Down the System If a cassette is still inserted, make certain that the FCR PRIMA T2 has finished reading, and then remove the cassette. The Cassette Removal Lamp should be blinking. On a screen from which the console can be shut down, select The following dialog appears.

  • Page 24: Reading Cassette Ip Images

    If a cassette is inserted incorrectly Explained below is the procedure to read IP images wrong side or direction, like at a slant, of a cassette inserted into the FCR PRIMA T2. the Image Reader can be damaged. ● When inserting the cassette, be careful 1. Confirm that the Cassette Ready Lamp is lit...

  • Page 25: Starting Up/Shutting Down The Fcr Prima T2 Main Unit

    Starting up the FCR PRIMA T2 main unit CAUTION An error may occur if you turn on the Main Power Switch of FCR PRIMA T2 right after turning it off. Once turning it off, wait at least 15 seconds before turning it on again.

  • Page 26: Shutting Down The Fcr Prima T2 Main Unit

    Stand-by Switch The status display LED changes from off-line to shutdown processing. When FCR PRIMA T2 shuts down, the status display LED goes out. See [2.2.3 Operation Panel Display at the Time of Startup/Shutdown] for the operation panel display at the time of FCR PRIMA T2 start.

  • Page 27: Chapter 4 Care And Maintenance

    In order to use the FCR PRIMA T2 always in good working order, perform daily checks and maintenance on it. As for the daily checks, make certain that the FCR PRIMA T2 starts up normally and all equipment that is connected to the FCR PRIMA T2 can communicate normally with the FCR PRIMA T2.

  • Page 28: Users Check Sheet

    Is the communication possible normally with the Daily connected equipment? Does the S value remain Every six constant? months ● Cleaning Unit for cleaning Frequency Date of cleaning Every three Cassette set unit months FCR PRIMA T2 Operation Manual 897N102546...

  • Page 29: About Preventive Maintenance

    12,000 is reached Perform the preventive maintenance shown below. Cleaning of the parts • Suction cups, rubber rollers • Reflection plate, and filter of the erasure unit • Light-collecting guide • Covers, shutter Checking the Machine • Erasure lamp lighting time • Protective grounding • Image/conveyance • S value • Error log FCR PRIMA T2 Operation Manual 897N102546...
  • Page 30 five years or when a process count of about 30,000 is reached Perform the preventive maintenance shown below. Cleaning of the parts • Reflection plate, and filter of the erasure unit • Covers, shutter Checking the Machine • Erasure lamp lighting time • Protective grounding • Image/conveyance • S value • Error log FCR PRIMA T2 Operation Manual 897N102546...

  • Page 31: Appendix A Specifications

    (1) Operating conditions Temperature: 15˚C (40% RH) - 30˚C (80% RH) Humidity: 15% RH (30˚C) - 80% RH (30˚C) (no dew condensation) Atmospheric pressure: 750 hPa-1060 hPa (2) Non-operating conditions Temperature: 0˚C-45˚C (no freeze condensation) Humidity: 10% RH-90% RH (no dew condensation) Temperature 15°C 30°C Atmospheric pressure: 750 hPa-1060 hPa Options Table fix kit, stand wagon, add stand for monitor, cassette rack, cassette rack for the long-view cassette, arm for monitor, stand wall fix kit, CPU floor mount kit, support bar for the long-view cassette. FCR PRIMA T2 Operation Manual 897N102546...
  • Page 32 FCR PRIMA T2 Operation Manual 897N102546...

  • Page 33: Maintenance And Inspection

    Maintenance and Inspection 1 Maintenance and Inspection Items Assigned to Specified Dealer For periodical inspection of the equipment and necessary arrangements, consult our official dealer or local representative. FCR PRIMA T2 Operation Manual 897N102546...
