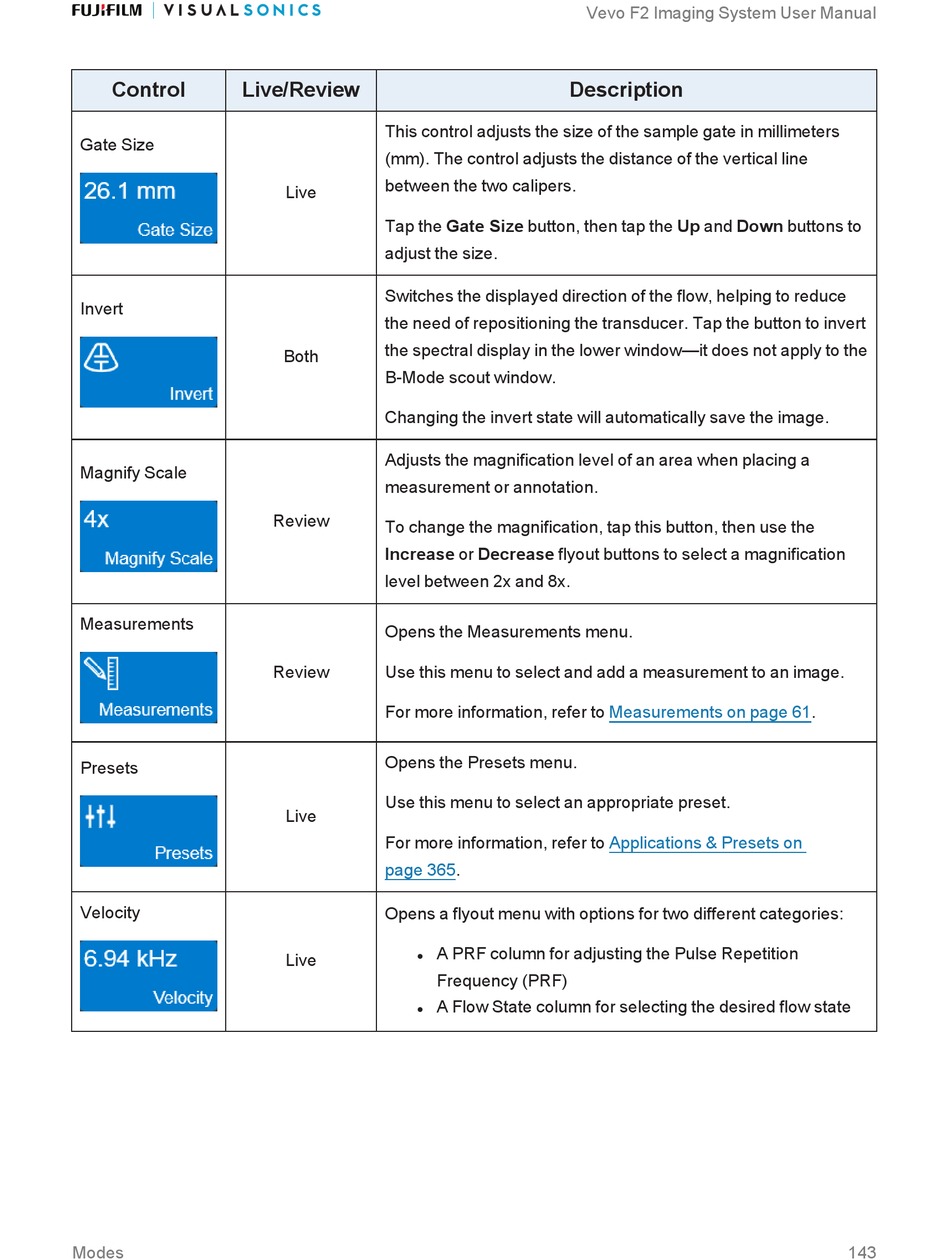

FujiFilm VisualSonics Vevo F2 User Manual page 143

Control Live/Review
Gate Size
Invert
Magnify Scale
Measurements
Presets
Velocity
Modes
This control adjusts the size of the sample gate in millimeters
(mm). The control adjusts the distance of the vertical line
between the two calipers.
Live
Tap the Gate Size button, then tap the Up and Down buttons to
adjust the size.
Switches the displayed direction of the flow, helping to reduce
the need of repositioning the transducer. Tap the button to invert
the spectral display in the lower window—it does not apply to the
Both
B-Mode scout window.
Changing the invert state will automatically save the image.
Adjusts the magnification level of an area when placing a
measurement or annotation.
Review
To change the magnification, tap this button, then use the
Increase or Decrease flyout buttons to select a magnification
level between 2x and 8x.
Opens the Measurements menu.
Review Use this menu to select and add a measurement to an image.
For more information, refer to Measurements on page 61.
Opens the Presets menu.
Use this menu to select an appropriate preset.
Live
For more information, refer to Applications & Presets on
page 365.
Opens a flyout menu with options for two different categories:
A PRF column for adjusting the Pulse Repetition
l
Live
Frequency (PRF)
A Flow State column for selecting the desired flow state
l
