1. Cube view
2. Cross view
3. Orientation indicator
4. Transverse view
5. Sagittal view
View Panes
The view panes can show up to four different views of the 3D Mode image at the same time. These panes
can be configured through the control panel, and have the following features:
The currently active pane is outlined with a yellow border. Active panes are selected through the
l
control panel.
An orientation indicator is displayed with the cube view, and rotates as the cube is rotated.
l
Each image is surrounded a wireframe that can be toggled on and off with the Wireframe control.
l
When you export a stored image that is set to only send the image area, this is the area of the Image
l
Display that is exported.
3D Mode Control Panel
When the 3D Mode scan is complete, the control panel displays the following interface:
Modes

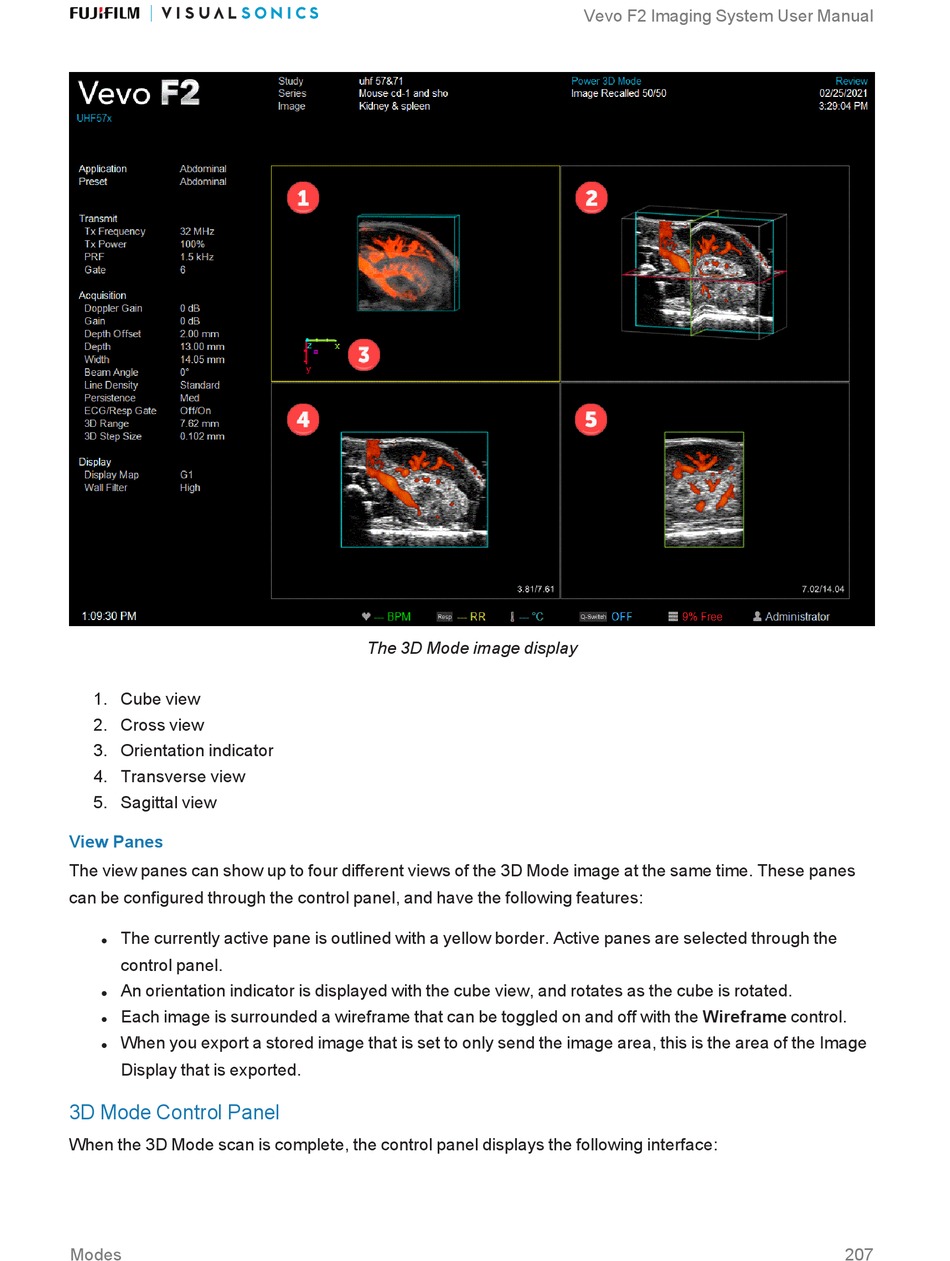

The 3D Mode image display
