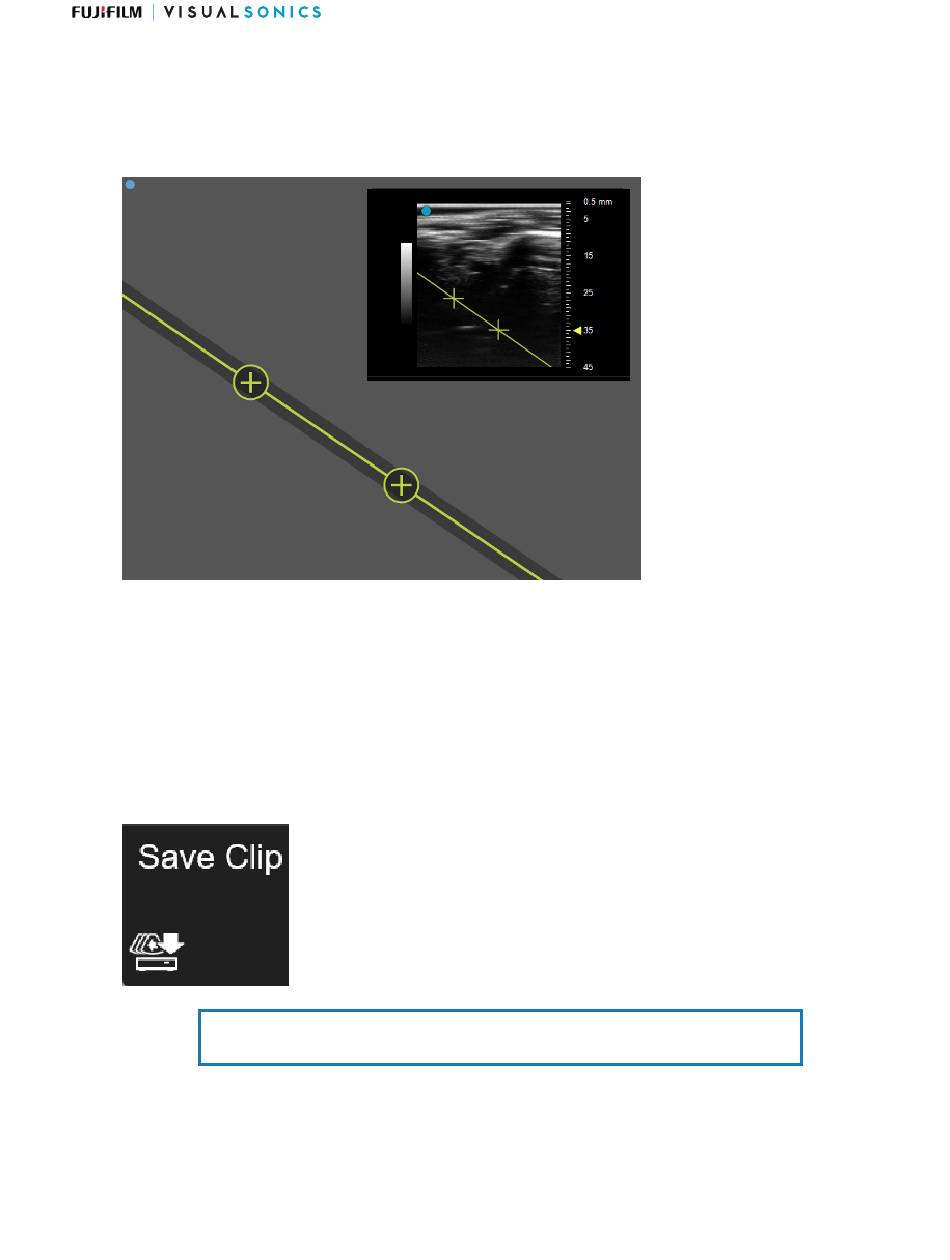

A Needle Guide overlay with two calipers appears on the control panel. A line extends through the
calipers, indicating the direction the needle will take during the injection.
4. Drag the Needle Guide controls to the desired location on the control panel. You will see the changes
in the overlay on the image display.
5. Drag the first caliper t o the location where the needle enters the edge of the image window.
6. Drag the second c aliper to the tip of the needle (where it appears on the image display).
7. Retract the needle, and ensure that the needle moves along the needle guide overlay.
8. Bring the target into the image plane, and line up the target with the part of the needle guide that
indicates the needle tip.
9. Bring the needle back into the image plane.
10. Slowly advance the needle tip to the tissue target and start the guided injection.
11. When the needle tip is within the target area, inject the sample.
12. If saving a clip of the injection event, tap Save Clip.
Note:
13. Retract the needle.
Modes
The needle guide is included in the saved clip/frame.
