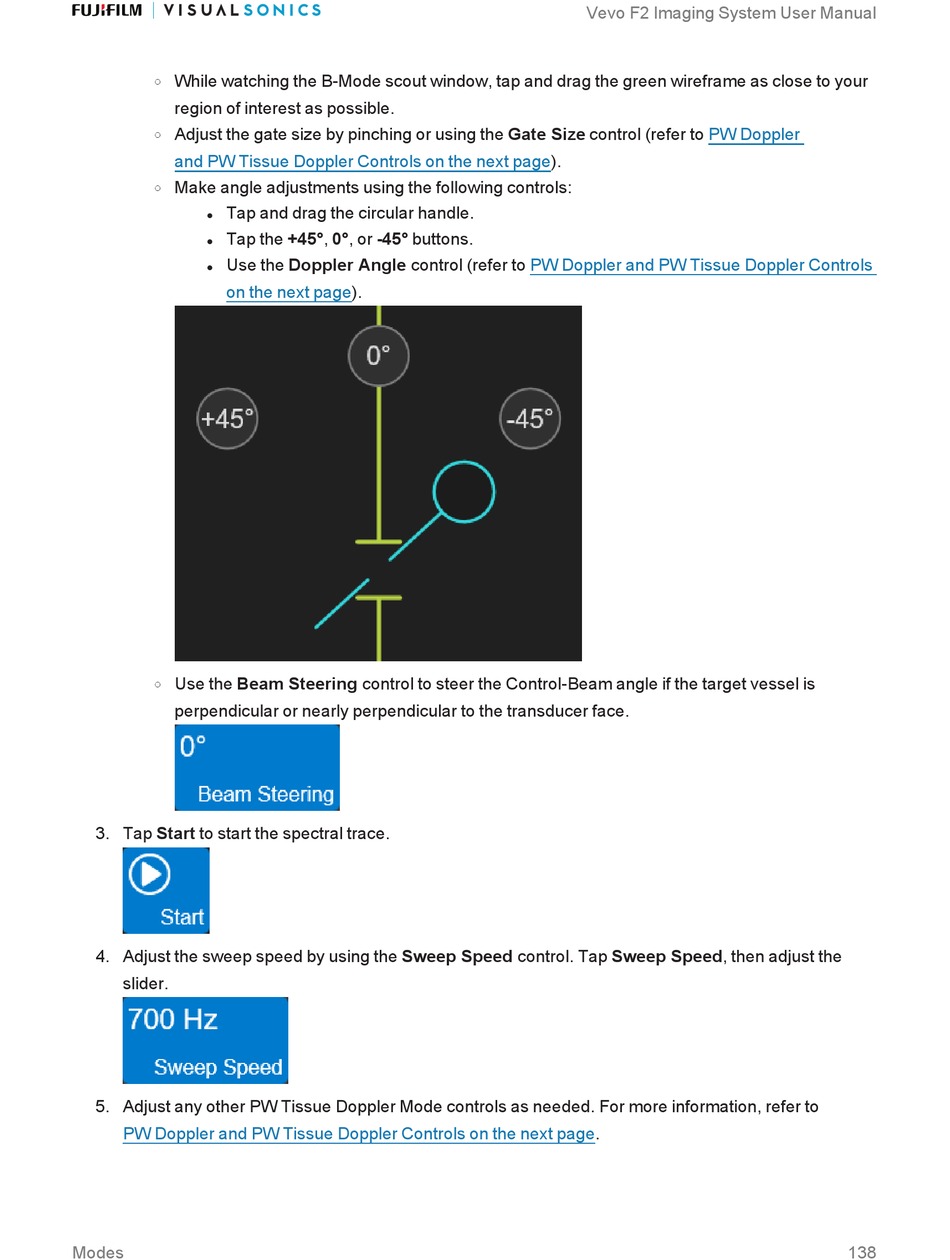

While watching the B-Mode scout window, tap and drag the green wireframe as close to your
o
region of interest as possible.
Adjust the gate size by pinching or using the Gate
o
and PW Tissue Doppler Controls on the next page).
Make angle adjustments using the following controls:
o
Tap and drag the circular handle.
l
Tap the +45°, 0°, or -45° buttons.
l
Use the Doppler Angle
l
on the next page).
Use the Beam Steering control to steer the Control-Beam angle if the target vessel is
o
perpendicular or nearly perpendicular to the transducer face.
3. Tap Start to start the spectral trace.
4. Adjust the sweep speed by using the Sweep Speed control. Tap Sweep Speed, then adjust the
slider.
5. Adjust any other PW Tissue Doppler Mode controls as needed. For more information, refer to
PW Doppler and PW Tissue Doppler Controls on the next page.
