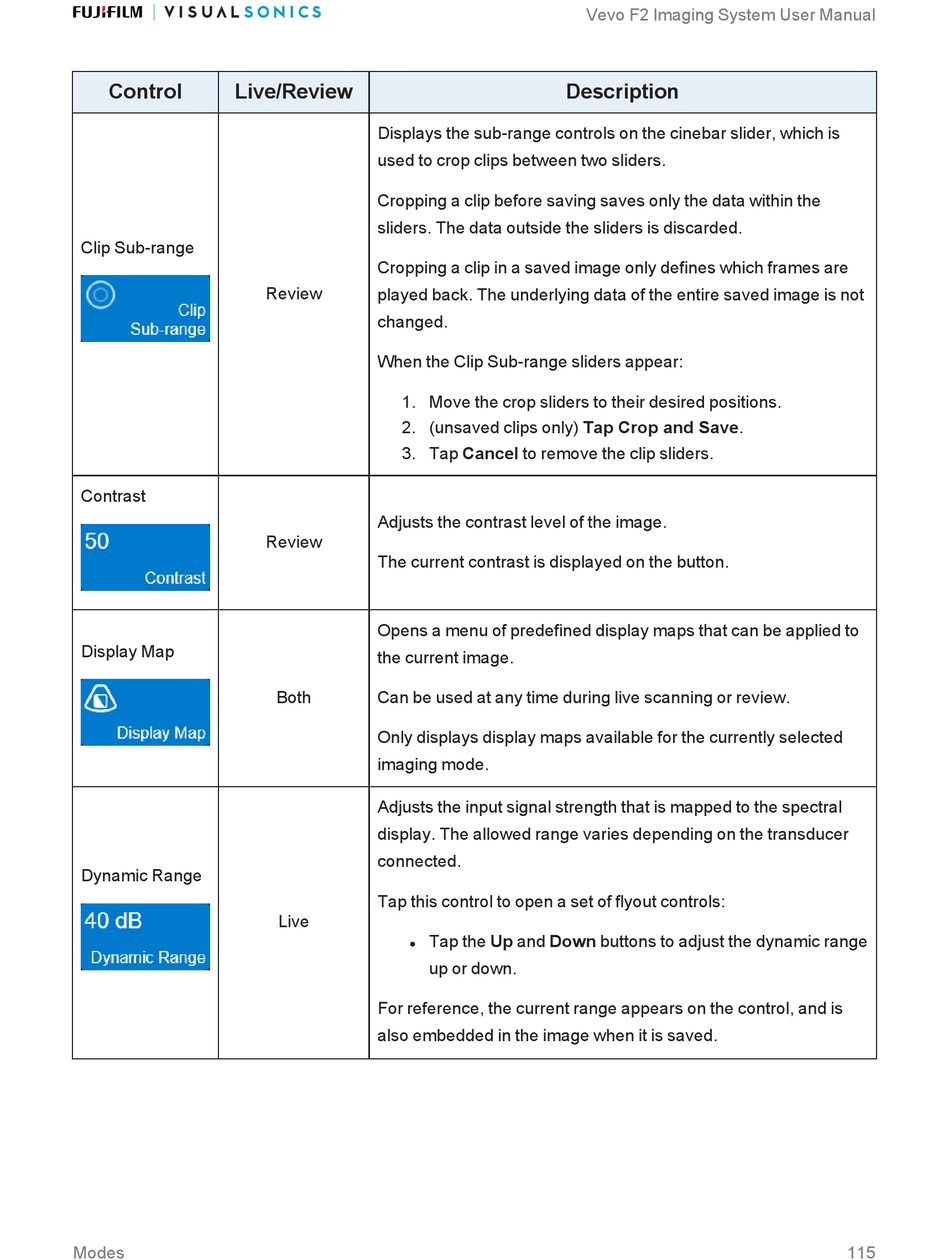

FujiFilm VisualSonics Vevo F2 User Manual page 115

Control Live/Review
Clip Sub-range
Contrast
Display Map
Dynamic Range
Modes
Displays the sub-range controls on the cinebar slider, which is
used to crop clips between two sliders.
Cropping a clip before saving saves only the data within the
sliders. The data outside the sliders is discarded.
Cropping a clip in a saved image only defines which frames are
Review
played back. The underlying data of the entire saved image is not
changed.
When the Clip Sub-range sliders appear:
1. Move the crop sliders to their desired positions.
2. (unsaved clips only) Tap Crop and Save.
3. Tap Cancel to remove the clip sliders.
Adjusts the contrast level of the image.
Review
The current contrast is displayed on the button.
Opens a menu of predefined display maps that can be applied to
the current image.
Both Can be used at any time during live scanning or review.
Only displays display maps available for the currently selected
imaging mode.
Adjusts the input signal strength that is mapped to the spectral
display. The allowed range varies depending on the transducer
connected.
Tap this control to open a set of flyout controls:
Live
Tap the Up and Down buttons to adjust the dynamic range
l
up or down.
For reference, the current range appears on the control, and is
also embedded in the image when it is saved.
