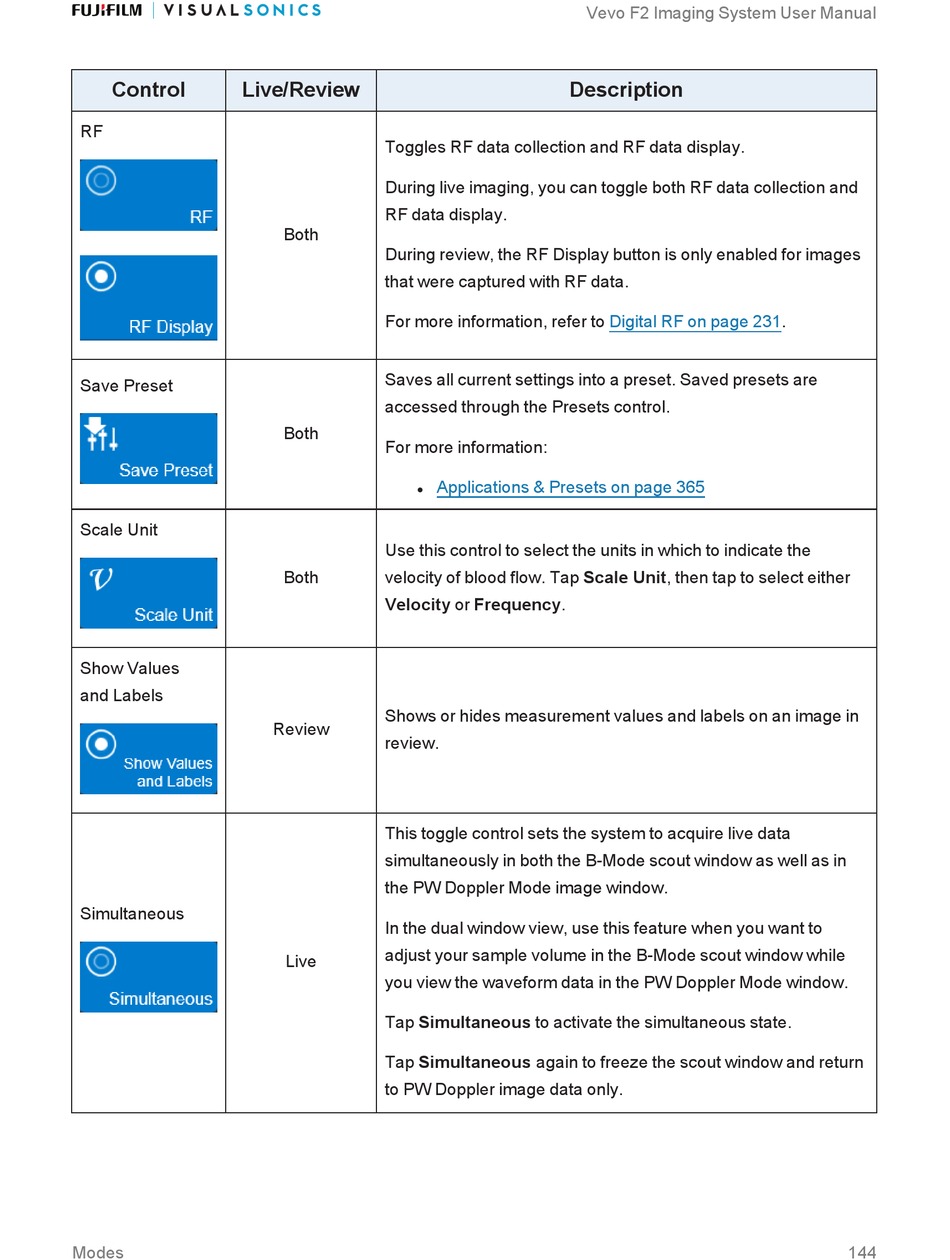

FujiFilm VisualSonics Vevo F2 User Manual page 144

Control Live/Review
RF
Save Preset
Scale Unit
Show Values
and Labels
Simultaneous
Modes
Toggles RF data collection and RF data display.
During live imaging, you can toggle both RF data collection and
RF data display.
Both
During review, the RF Display button is only enabled for images
that were captured with RF data.
For more information, refer to Digital RF o
Saves all current settings into a preset. Saved presets are
accessed through the Presets control.
Both
For more information:
Applications & Presets on page 365
l
Use this control to select the units in which to indicate the
Both velocity of blood flow. T ap Scale Unit, then tap to select either
Velocity or Frequency.
Shows or hides measurement values and labels on an image in
Review
review.
This toggle control sets the system to acquire live data
simultaneously in both the B-Mode scout window as well as in
the PW Doppler Mode image window.
In the dual window view, use this feature when you want to
adjust your sample volume in the B-Mode scout window while
Live
you view the waveform data in the PW Doppler Mode window.
Tap Simultaneous to activate the simultaneous state.
Tap Simultaneous again to freeze the scout window and return
to PW Doppler image data only.
Vevo F2 Imaging System User Manual
Description
n page 231.
