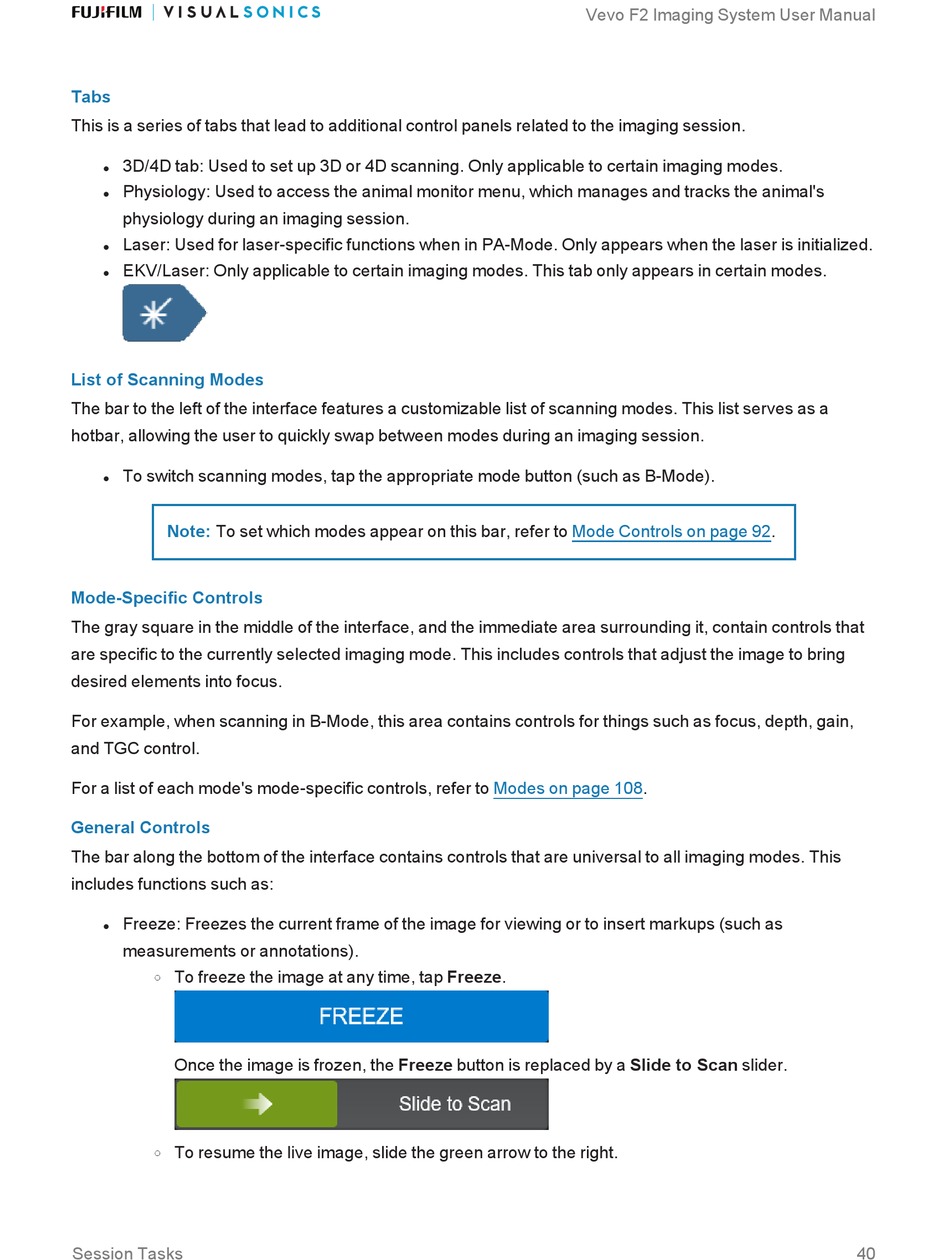

FujiFilm VisualSonics Vevo F2 User Manual page 40

Tabs
This is a series of tabs that lead to additional control panels related to the imaging session.
3D/4D tab: Used to set up 3D or 4D scanning. Only applicable to certain imaging modes.
l
Physiology: Used to access the animal monitor menu, which manages and tracks the animal's
l
physiology during an imaging session.
Laser: Used for laser-specific functions when in PA-Mode. Only appears when the laser is initialized.
l
EKV/Laser: Only applicable to certain imaging modes. This tab only appears in certain modes.
l
List of Scanning Modes
The bar to the left of the interface features a customizable list of scanning modes. This list serves as a
hotbar, allowing the user to quickly swap between modes during an imaging session.
To switch scanning modes, tap the appropriate mode button (such as B-Mode).
l
Note: To set which modes appear on this bar, refer to Mode Controls on page 92.
Mode-Specific Controls
The gray square in the middle of the interface, and the immediate area surrounding it, contain controls that
are specific to the currently selected imaging mode. This includes controls that adjust the image to bring
desired elements into focus.
For example, when scanning in B-Mode, this area contains controls for things such as focus, depth, gain,
and TGC control.
For a list of each mode's mode-specific controls, refer to Modes on page 108.
General Controls
The bar along the bottom of the interface contains controls that are universal to all imaging modes. This
includes functions such as:
Freeze: Freezes the current frame of the image for viewing or to insert markups (such as
l
measurements or annotations).
To freeze the image at any time, tap Freeze.
o
Once the image is frozen, the Freeze button is replaced by a Slide to Scan slider.
To resume the live image, slide the green arrow to the right.
o
Session Tasks
