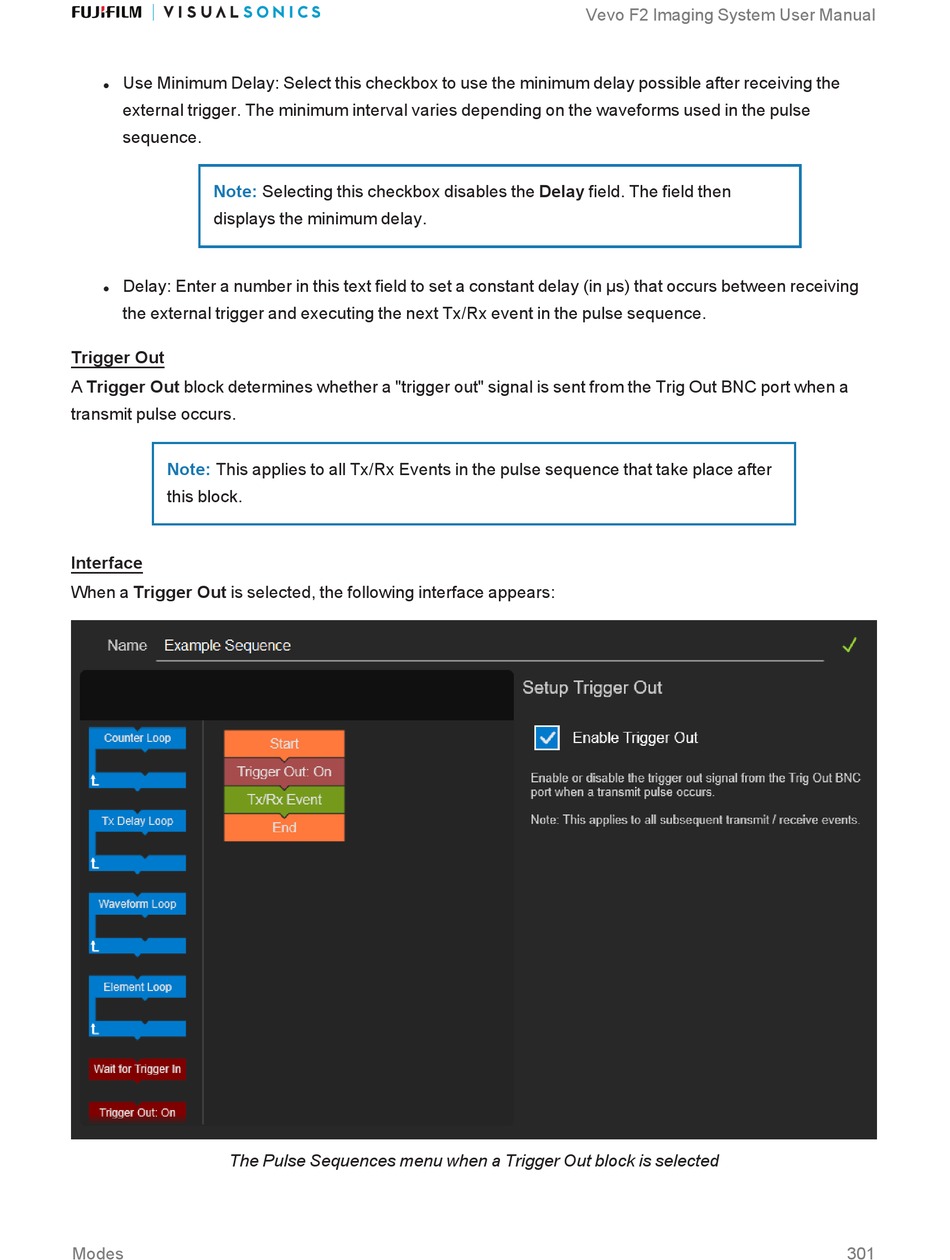

FujiFilm VisualSonics Vevo F2 User Manual page 301

Imaging system
Table of Contents

Advertisement


Use Minimum Delay: Select this checkbox to use the minimum delay possible after receiving the
l
external trigger. The minimum interval varies depending on the waveforms used in the pulse
sequence.
Note:
displays the minimum delay.

Delay: Enter a number in this text field to set a constant delay (in µs) that occurs between receiving
l
the external trigger and executing the next Tx/Rx event in the pulse sequence.
Trigger Out
A Trigger Out block determines whether a "trigger out" signal is sent from the Trig Out BNC port when a
transmit pulse occurs.
Note:
This applies to all Tx/Rx Events in the pulse sequence that take place after
this block.
Interface
When a Trigger Out is selected, the following interface appears:
The Pulse Sequences menu when a Trigger Out block is selected
Modes
Selecting this checkbox disables the Delay field. The field then
Vevo F2 Imaging System User Manual
301
