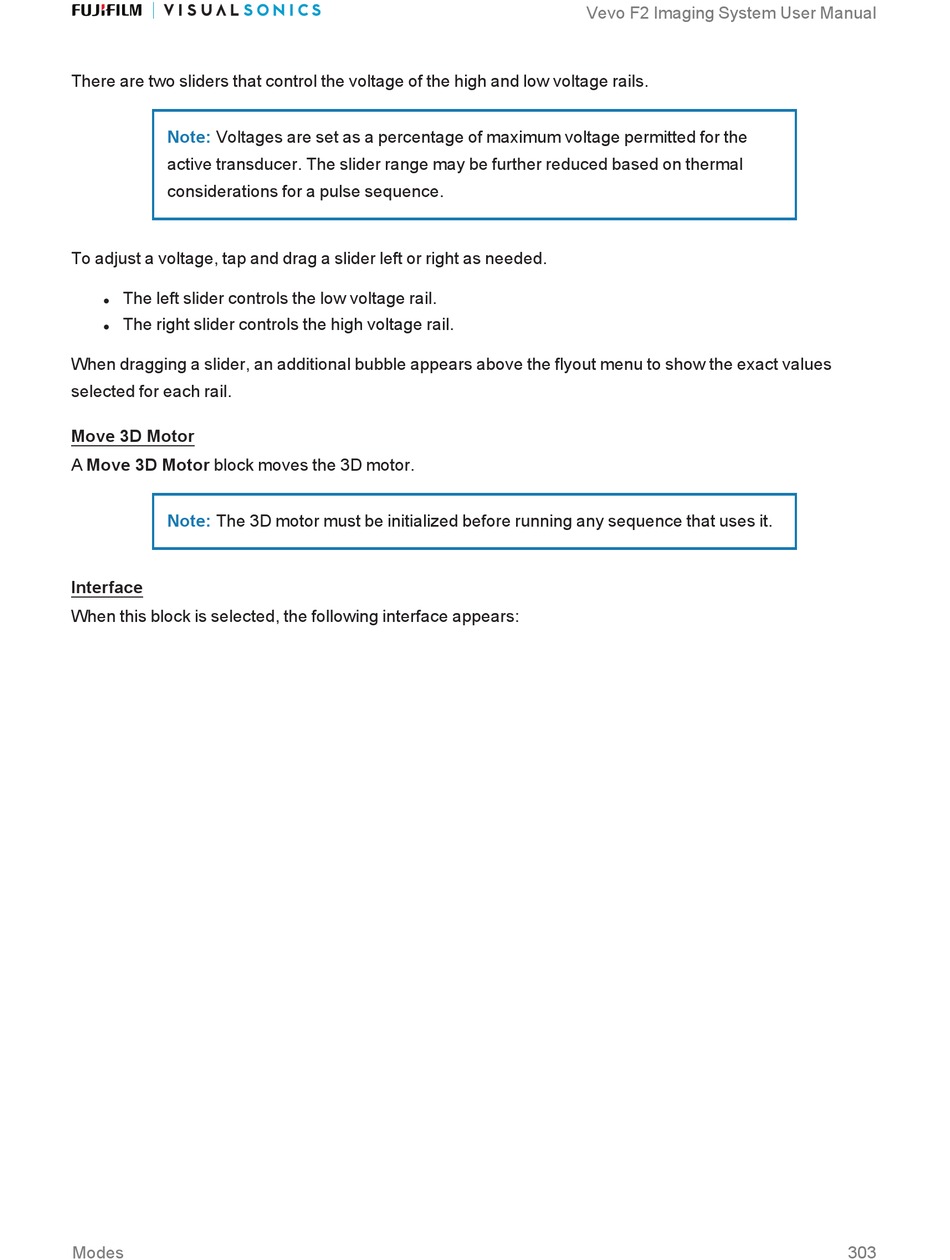

FujiFilm VisualSonics Vevo F2 User Manual page 303

There are two sliders that control the voltage of the high and low voltage rails.
Note: Voltages are set as a percentage of maximum voltage permitted for the
active transducer. The slider range may be further reduced based on thermal
considerations for a pulse sequence.
To adjust a voltage, tap and drag a slider left or right as needed.
The left slider controls the low voltage rail.
l
The right slider controls the high voltage rail.
l
When dragging a slider, an additional bubble appears above the flyout menu to show the exact values
selected for each rail.
Move 3D Motor
A Move 3D Motor block moves the 3D motor.
Note: The 3D motor must be initialized before running any sequence that uses it.
Interface
When this block is selected, the following interface appears:
Modes
