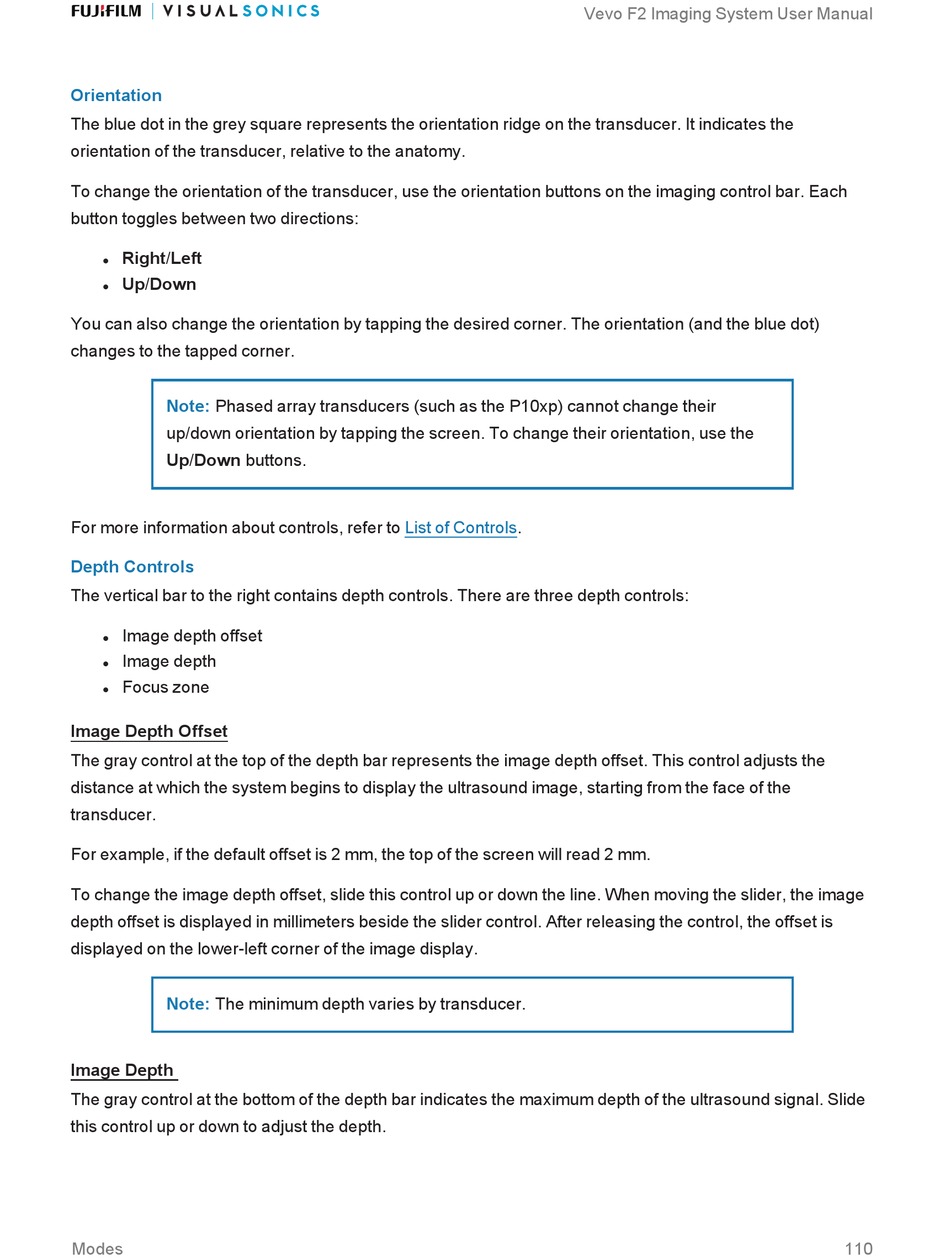

Orientation
The blue dot in the grey square represents the orientation ridge on the transducer. It indicates the
orientation of the transducer, relative to the anatomy.
To change the orientation of the transducer, use the orientation buttons on the imaging control bar. Each
button toggles between two directions:
Right/Left
l
Up/Down
l
You can also change the orientation by tapping the desired corner. The orientation (and the blue dot)
changes to the tapped corner.
Note: Phased array transducers (such as the P10xp) cannot change their
up/down orientation by tapping the screen. To change their orientation, use the
Up/Down buttons.
For more information about controls, refer to List of Controls.
Depth Controls
The vertical bar to the right contains depth controls. There are three depth controls:
Image depth offset
l
Image depth
l
Focus zone
l
Image Depth Offset
The gray control at the top of the depth bar represents the image depth offset. This control adjusts the
distance at which the system begins to display the ultrasound image, starting from the face of the
transducer.
For example, if the default offset is 2 mm, the top of the screen will read 2 mm.
To change the image depth offset, slide this control up or down the line. When moving the slider, the image
depth offset is displayed in millimeters beside the slider control. After releasing the control, the offset is
displayed on the lower-left corner of the image display.
Note: The minimum depth varies by transducer.
Image Depth
The gray control at the bottom of the depth bar indicates the maximum depth of the ultrasound signal. Slide
this control up or down to adjust the depth.
