Vevo Fiber Jacket and Vevo Optical Fiber: Used to direct the laser.
l
Vevo LAZRTight Enclosure: Provides a safe environment for photoacoustic imaging.
l
Vevo Integrated Rail System
The Vevo Integrated Rail System is a series of rails and mounting devices used to hold a small animal and
related research devices during imaging procedures.
For information about how to use the Vevo Imaging Station, refer to the Vevo Integrated Rail System User
Guide.
Vevo Animal Monitoring System
The Vevo Animal Monitoring System (also known as the Vevo Monitor) supports the subject and measures
physiological data, which is then fed to the Vevo F2 Imaging System. Its two main components are a heated
animal platform and accompanying tablet.
Components

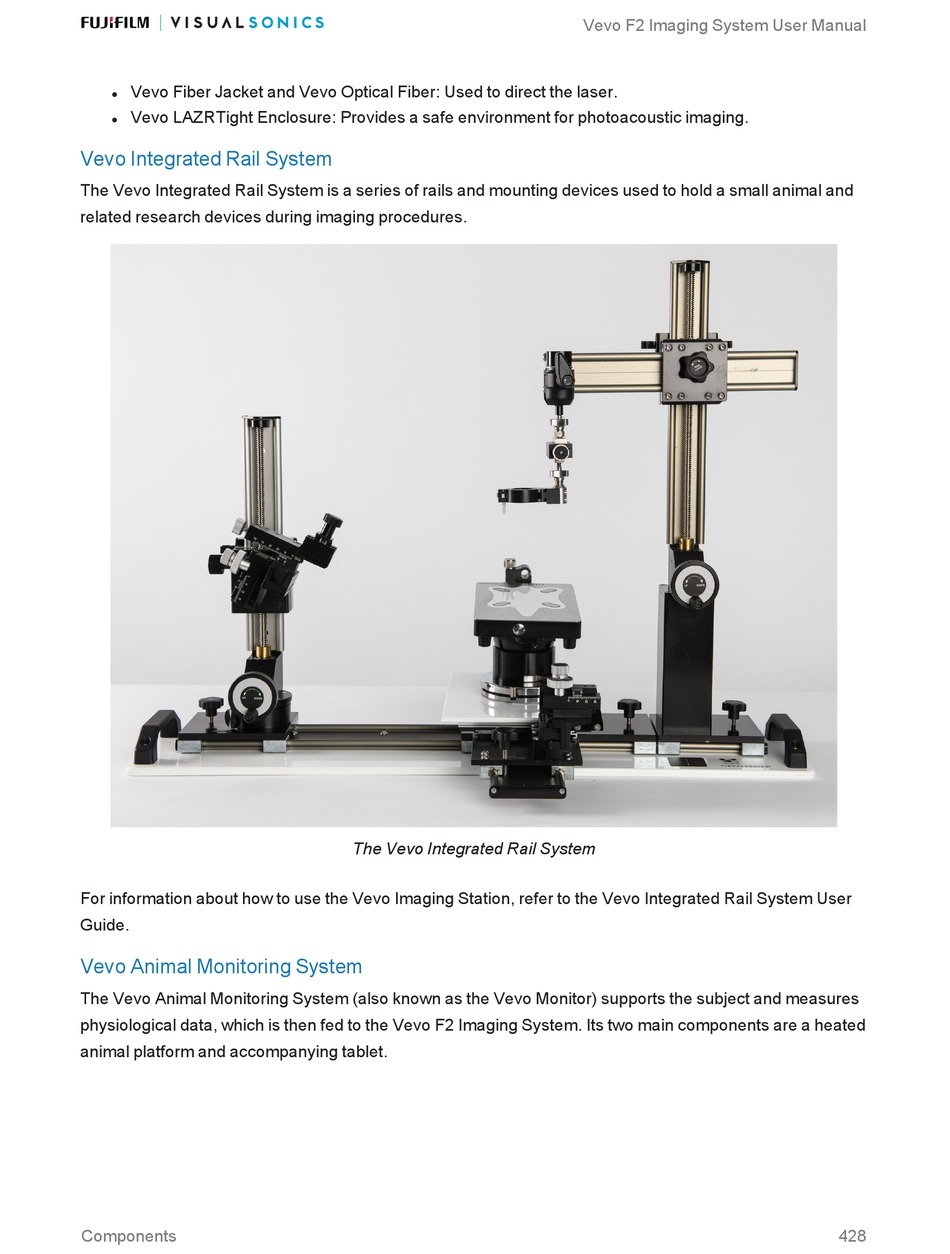

The Vevo Integrated Rail System
