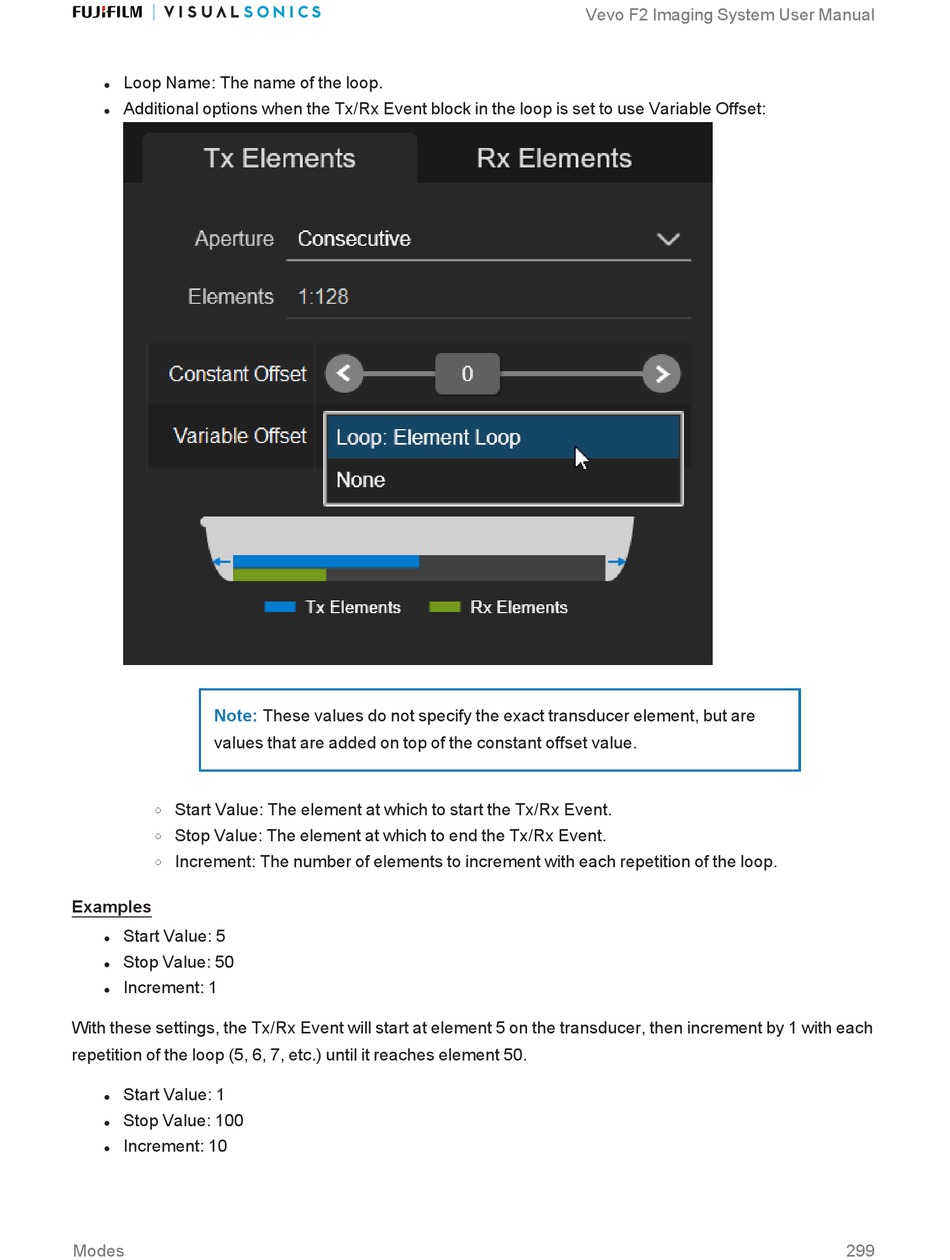

Loop Name: The name of the loop.
l
Additional options when the Tx/Rx Event block in the loop is set to use Variable Offset:
l
Note:
values that are added on top of the constant offset value.
Start Value: The element at which to start the Tx/Rx Event.
o
Stop Value: The element at which to end the Tx/Rx Event.
o
Increment: The number of elements to increment with each repetition of the loop.
o
Examples
Start Value: 5
l
Stop Value: 50
l
Increment: 1
l
With these settings, the Tx/Rx Event will start at element 5 on the transducer, then increment by 1 with each
repetition of the loop (5, 6, 7, etc.) until it reaches element 50.
Start Value: 1
l
Stop Value: 100
l
Increment: 10
l
Modes
These values do not specify the exact transducer element, but are
