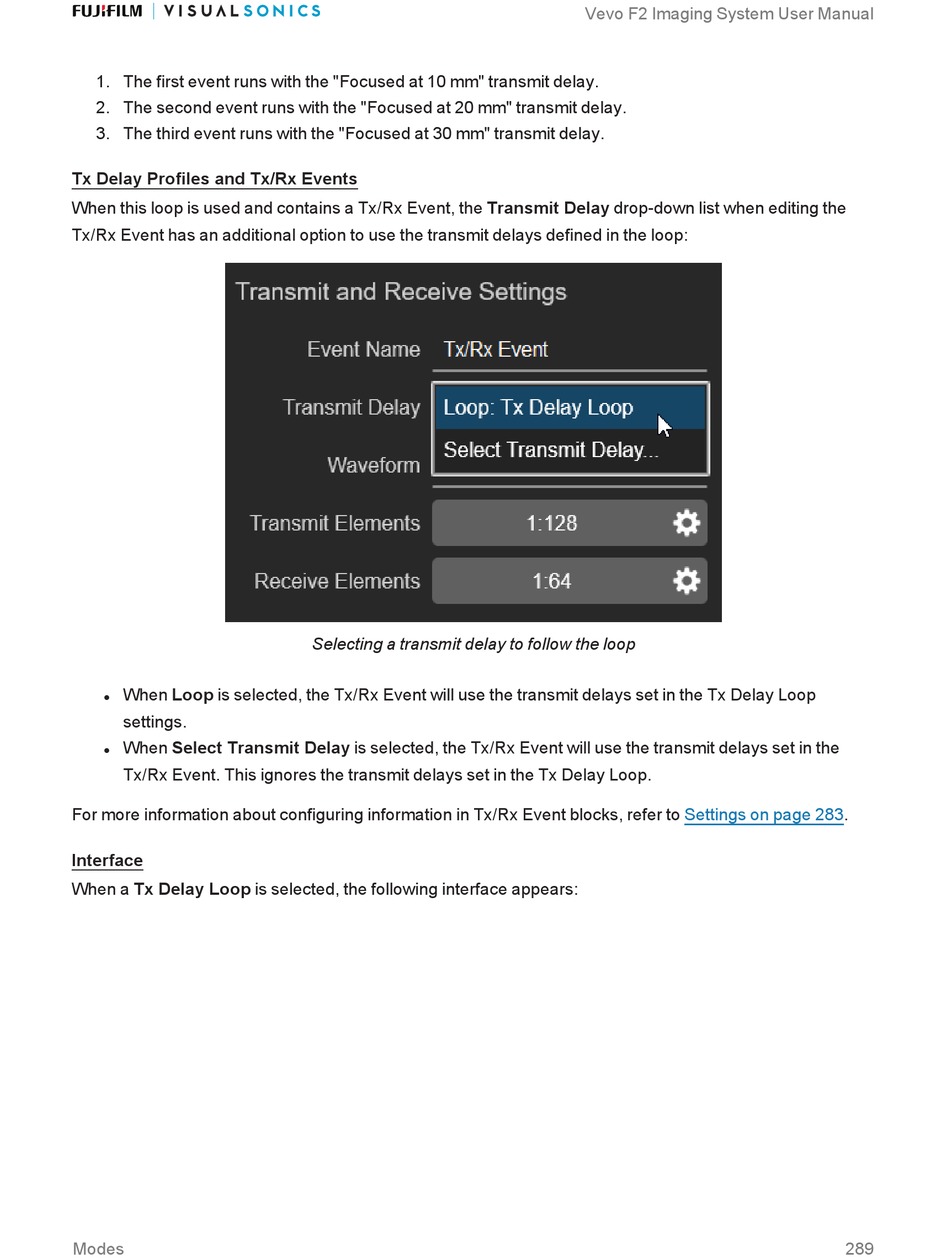

FujiFilm VisualSonics Vevo F2 User Manual page 289

1. The first event runs with the "Focused at 10 mm" transmit delay.
2. The second event runs with the "Focused at 20 mm" transmit delay.
3. The third event runs with the "Focused at 30 mm" transmit delay.
Tx Delay Profiles and Tx/Rx Events
When this loop is used and contains a Tx/Rx Event, the Transmit Delay drop-down list when editing the
Tx/Rx Event has an additional option to use the transmit delays defined in the loop:
When Loop is selected, the Tx/Rx Event will use the transmit delays set in the Tx Delay Loop
l
settings.
When Select Transmit Delay is selected, the Tx/Rx Event will use the transmit delays set in the
l
Tx/Rx Event. This ignores the transmit delays set in the Tx Delay Loop.
For more information about configuring information in Tx/Rx Event blocks, refer to Settings on page 283.
Interface
When a Tx Delay Loop is selected, the following interface appears:
Modes
Selecting a transmit delay to follow the loop
