Power Plug
The Vevo LAZR-X laser cart plugs into a wall o utlet.
For optimal system performance, use a dedicated, interference-free g rounded/earthed wall outlet.
Note: FUJIFILM VisualSonics recommends plugging the laser into a different
circuit from the Vevo F2.
Precautions
Make sure the plug is compatible with your type of wall outlet.
l
Ensure the wall outlet provides the correct amount of voltage for the laser.
l
Do not modify the power plug or use an adapter, as doing so could c ause an electrical hazard. If you
l
need to use a different plug, contact T
page 477.
Do not move the laser cart while it is plugged in.
l
Ensure the power cable is undamaged before plugging the laser directly into the wall outlet. Do not
l
connect the laser's power supply to an MPSO or extension cord. The voltage is specified on the label
located under the AC power cord connector on the back of the laser.
Laser Ports
The Vevo LAZR-X laser cart features two laser ports that provide different wavelengths.
The Signal port provides wavelengths between 680 - 970 nm.
l
The Idler port provides wavelengths betwen 1200 - 2000 nm.
l
To select a port and wavelength:
Components

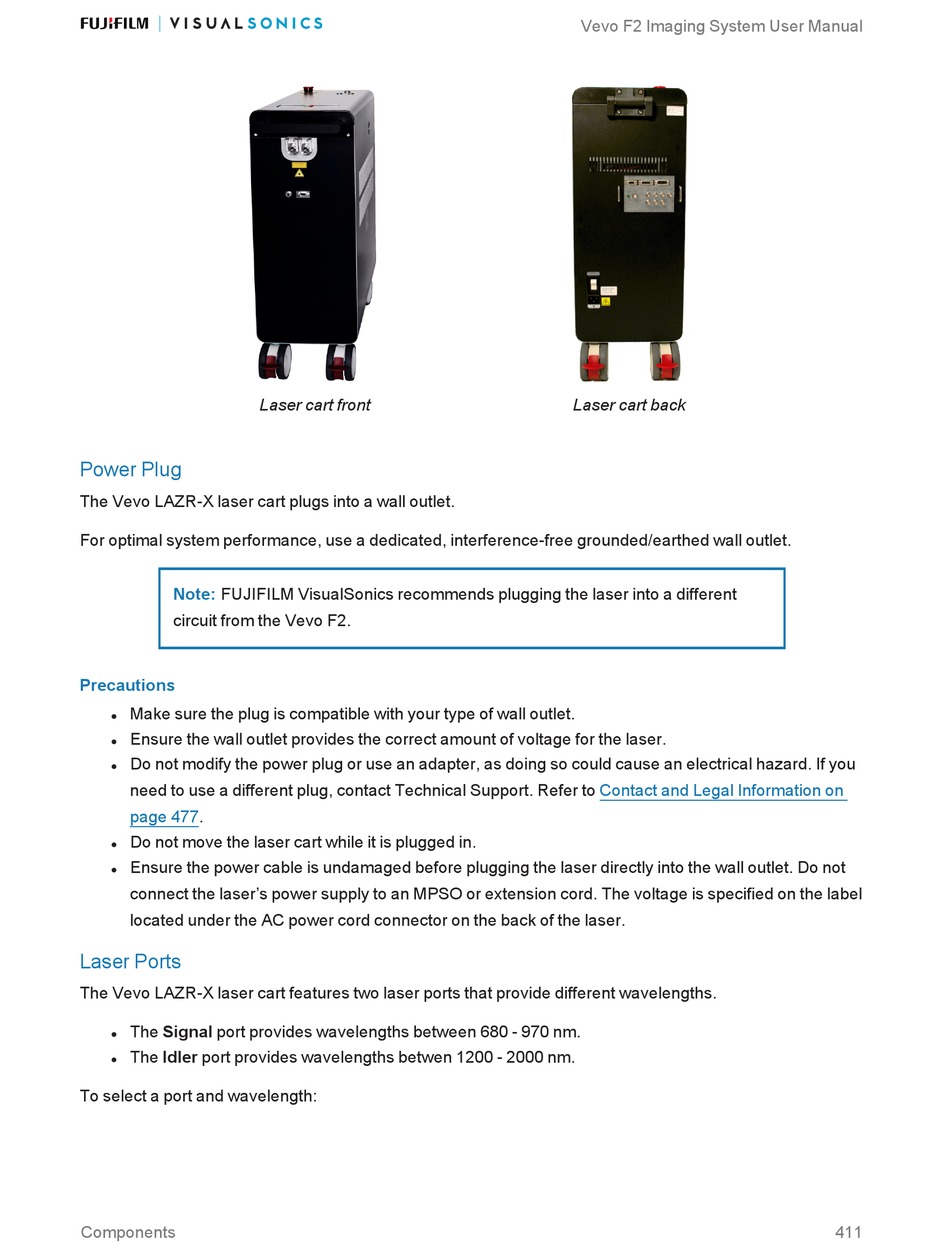

Laser cart front
echnical Support. Refer to Contact and Legal Information on
Vevo F2 Imaging System User Manual
Laser cart back
411
