The control panel contains the following features:
A top bar that navigates between menus within the Vevo F2 software.
l
A working area that contains image adjustment controls for the currently selected imaging mode.
l
A collection of control buttons that carry out one of the following functions:
l
Selects an imaging mode
o
Opens features of the currently selected imaging mode
o
Adjusts the current image
o
Executes a function on the current image
o
Customizable sidebars that are used to hold the most commonly used control buttons.
l
Note: For more information about the control panel interface, refer to Control
Panel Interface (Scanning) on page 38 and Control Panel Interface (Review) on
page 41.
Basic Touchscreen Actions
The control panel is a touchscreen that serves as the main control interface for the Vevo F2. This screen
supports the same actions as those of typical touchscreen devices.
The following table lists common touchscreen actions, and a list of Vevo F2 functions that associated with
those actions.
Introduction
Vevo F2 Imaging System User Manual

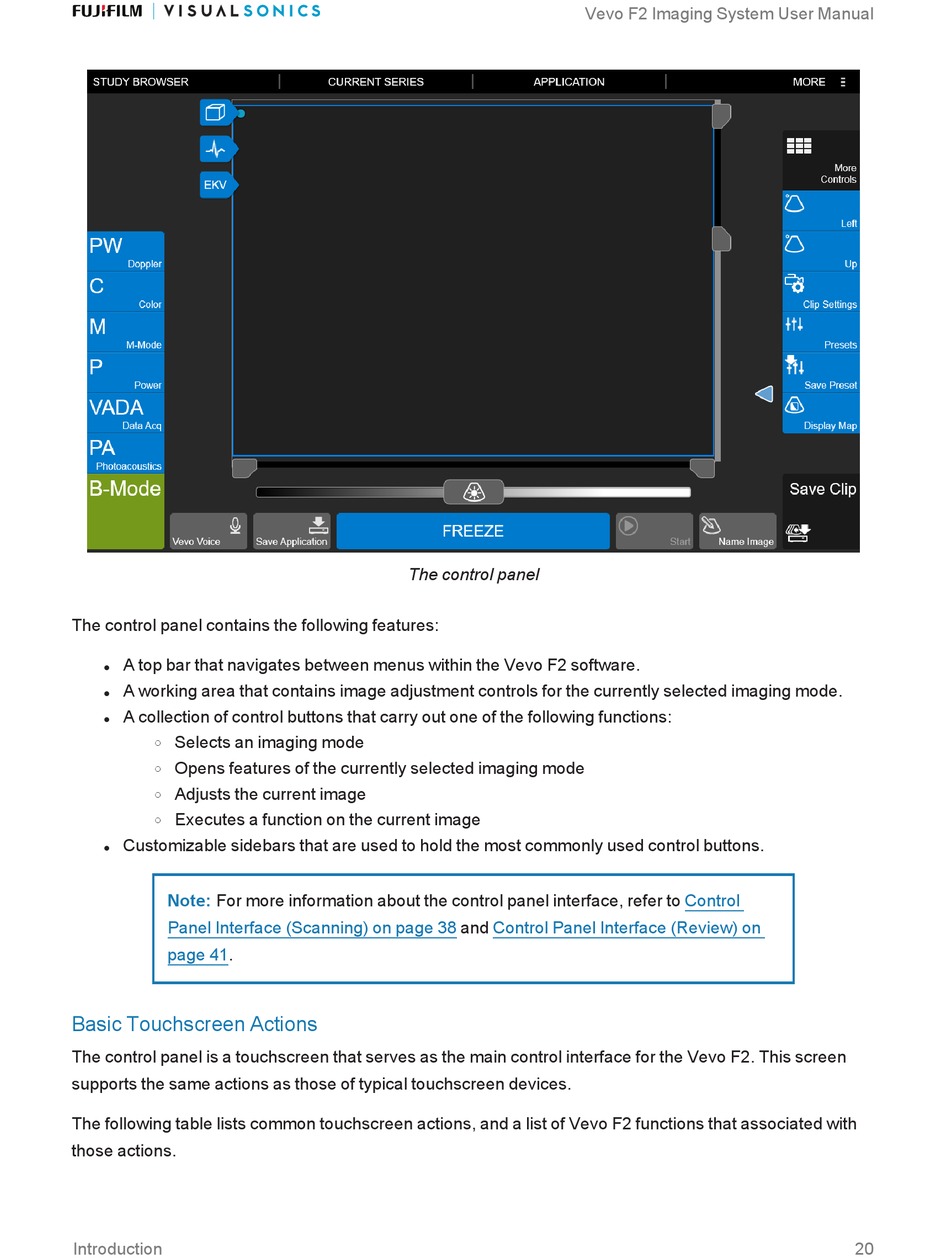

The control panel
20
