This interface contains the following features in addition to the standard B-Mode interface:
1. Sample Gate
2. Beam Steering
3. Start/Stop button
4. PW Doppler Mode window
5. PW Doppler baseline
6. PW Doppler gain
Sample Gate
In PW Doppler Mode, the region of interest is the image data that the transducer acquires along the vertical
line between the brackets of the green wireframe in the B-Mode image. This line is called the sample gate.
The sample gate can be adjusted in the following ways:
To reposition the sample gate, tap and drag the green wireframe.
l
To change the size of the sample gate, tap the Gate Size control.
l
To steer the beam angle, use the Beam Steering control.
l
Note: For more information about the Gate Size and Beam Steering controls,
refer to PW Doppler and PW Tissue Doppler Controls on page 139.
Modes

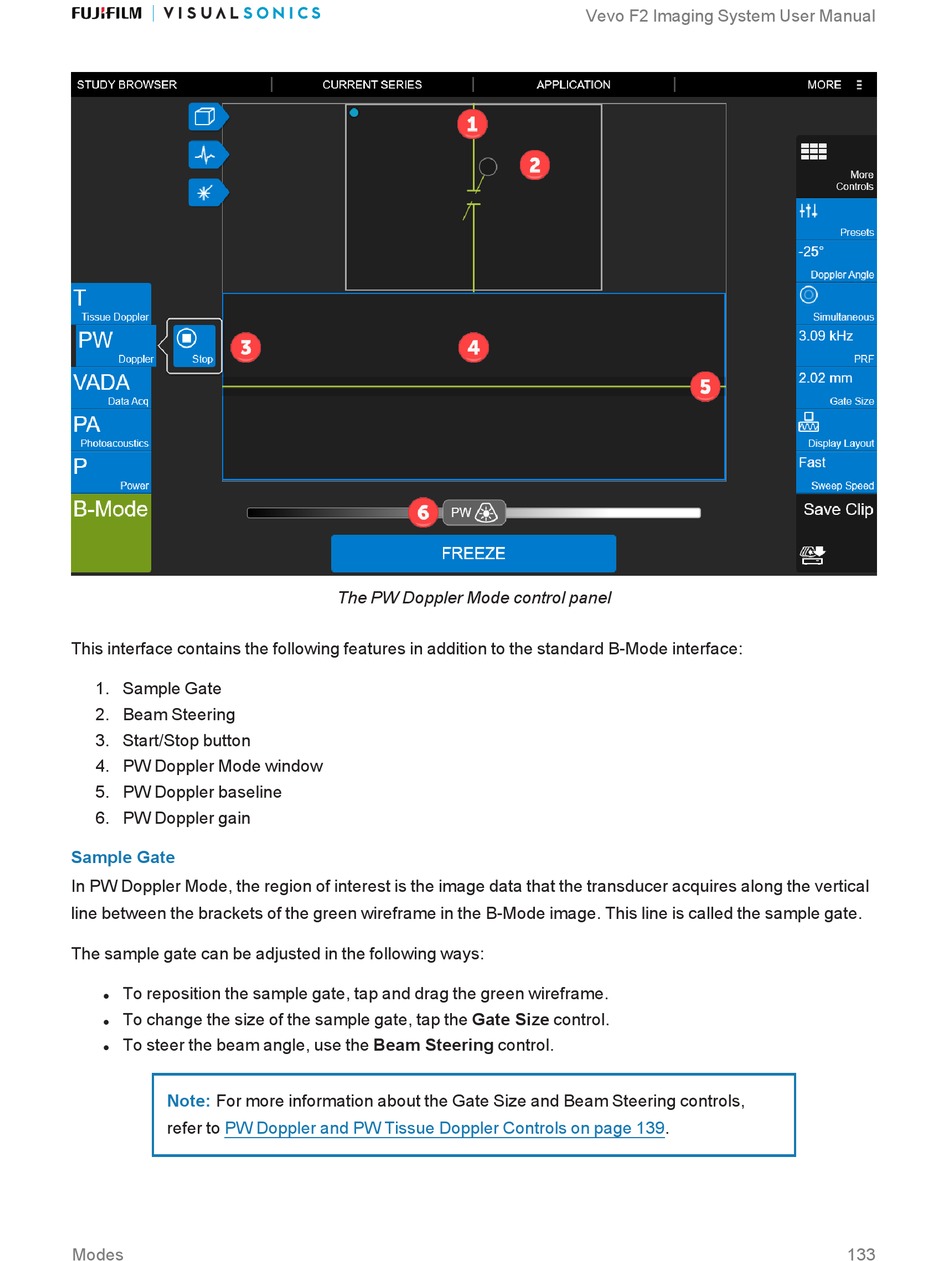

The PW Doppler Mode control panel
