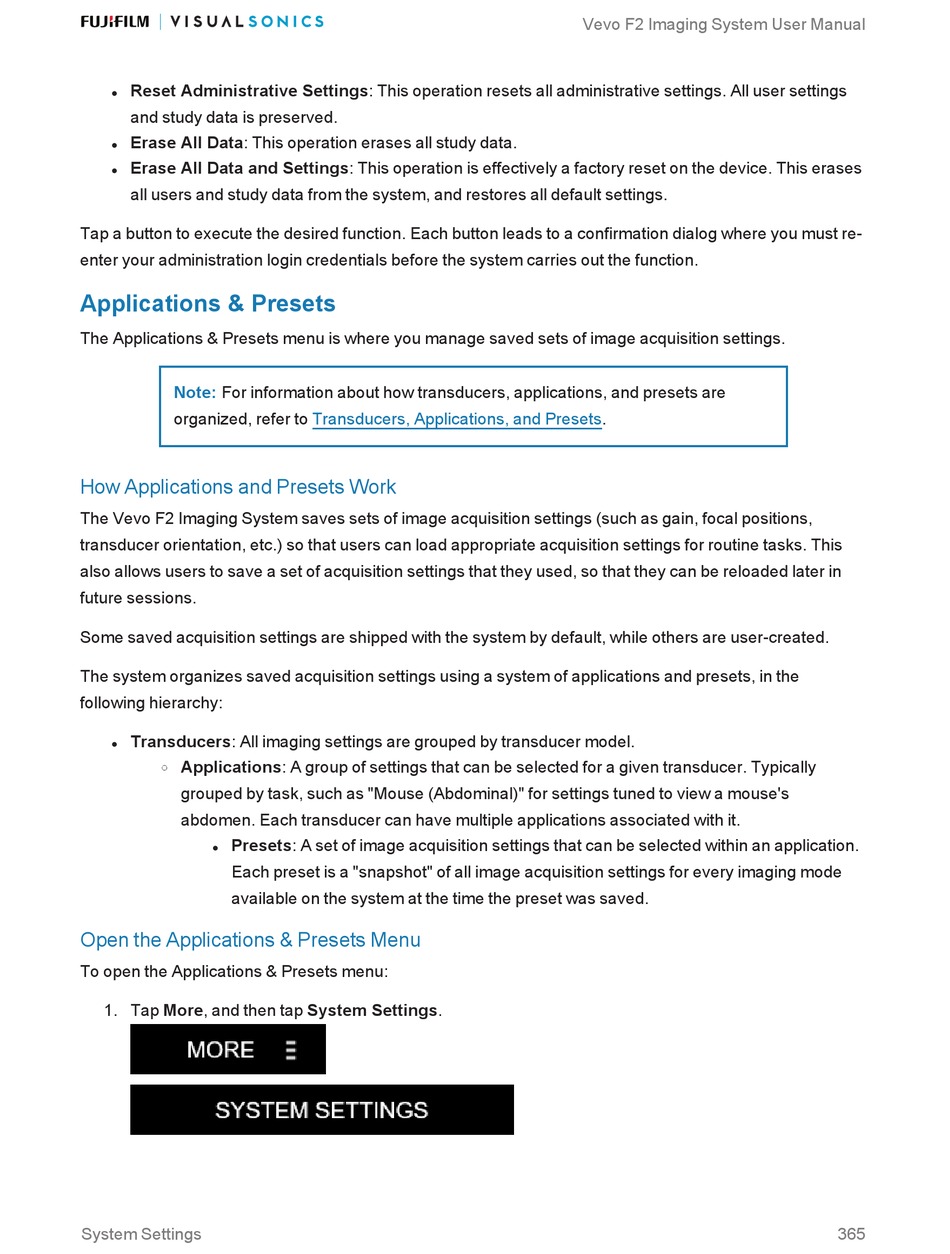

Reset Administrative Settings: This operation resets all administrative settings. All user settings
l
and study data is preserved.

Erase All Data: This operation erases all study data.
l

Erase All Data and Settings: This operation is effectively a factory reset on the device. This erases
l
all users and study data from the system, and restores all default settings.
Tap a button to execute the desired function. Each button leads to a confirmation dialog where you must re-
enter your administration login credentials before the system carries out the function.
Applications & Presets
The Applications & Presets menu is where you manage saved sets of image acquisition settings.
Note:
For information about how transducers, applications, and presets are
organized, refer to Transducers, Applications, and Presets.
How Applications and Presets Work
The Vevo F2 Imaging System saves sets of image acquisition settings (such as gain, focal positions,
transducer orientation, etc.) so that users can load appropriate acquisition settings for routine tasks. This
also allows users to save a set of acquisition settings that they used, so that they can be reloaded later in
future sessions.
Some saved acquisition settings are shipped with the system by default, while others are user-created.
The system organizes saved acquisition settings using a system of applications and presets, in the
following hierarchy:

Transducers: All imaging settings are grouped by transducer model.
l

Applications: A group of settings that can be selected for a given transducer. Typically
o
grouped by task, such as "Mouse (Abdominal)" for settings tuned to view a mouse's
abdomen. Each transducer can have multiple applications associated with it.

Presets: A set of image acquisition settings that can be selected within an application.
l
Each preset is a "snapshot" of all image acquisition settings for every imaging mode
available on the system at the time the preset was saved.
Open the Applications & Presets Menu
To open the Applications & Presets menu:
 1.  Tap More, and then tap System Settings.
System Settings
Vevo F2 Imaging System User Manual
365
