FujiFilm VisualSonics Vevo F2 User Manual page 379

Interface Overview
The General menu contains the following fields and controls:
Institution name: This is the name that appears in Image Area exports.
l
Startup: The default location that the system navigates to after a user logs in.
l
Foot Pedal Configuration: Use the dropdowns to assign an action to each of the foot pedals.
l
Note:
the current mode, according to the Scanning Mode buttons order on the left
of the control panel.
When switching to M-Mode, PW Doppler Mode, or PA-Mode, using Next
Mode once will evoke the mode "Start" state. To begin scanning, you must
use Next Mode again.
Display Options: Select the Display advanced mode parameters checkbox to show additional
l
parameters on the left side of the Image Display.
System Settings

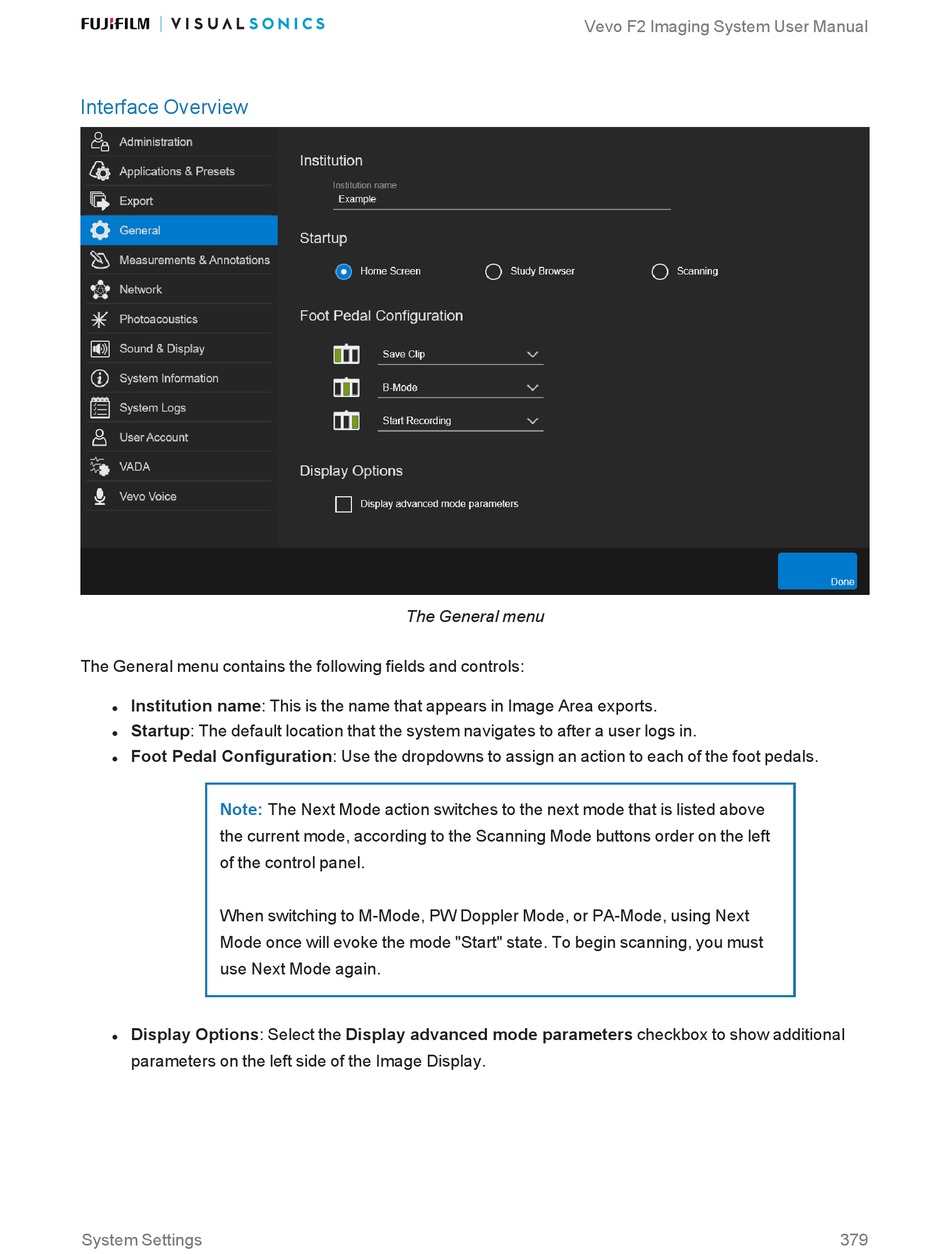

The General menu
The Next Mode action switches to the next mode that is listed above
Vevo F2 Imaging System User Manual
379
