shown when both RF Data and RF Display are enabled.
 5.  Analog gain: If Flatten Analog Gain is enabled, the information to the left of the screen shows that it
is enabled, along with the current analog gain setting.
Review an RF Image
Reviewing an image saved with RF data is similar to reviewing the image in its base mode.
The only difference is that the RF Display control is available.

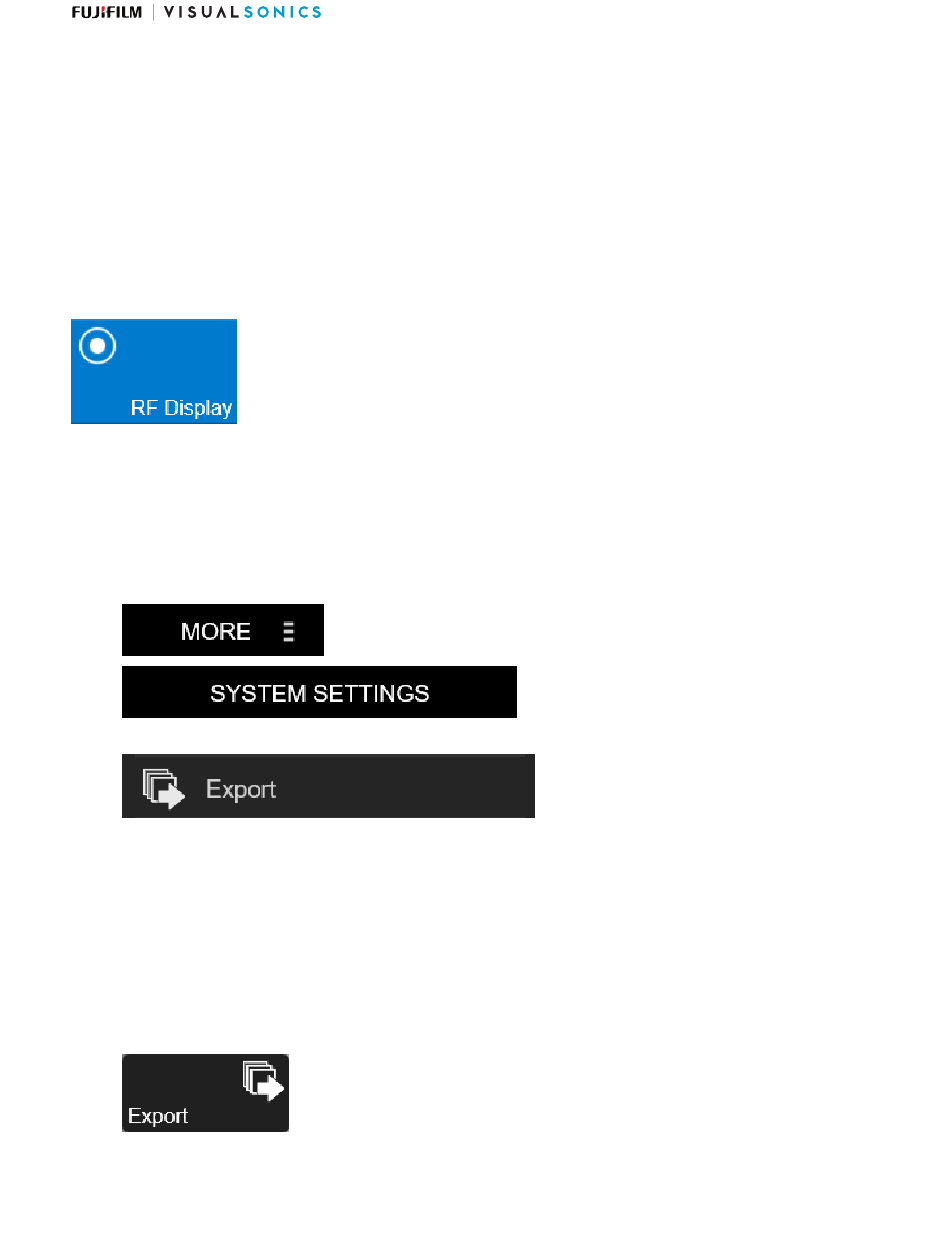

Tap RF Display to toggle the display of RF data in the saved image.
Export RF Data
RF data files can be exported from open images or directly from the Study     B rowser by tapping the Export
button.
Before You Begin
 1.  Tap More, and then tap System Settings.
 2.  Tap the Export tab.
 3.  On the Export page, select the desired RF data file formats. Depending on the mode that was used
with RF data, the following formats are available:

RAW data file (*.raw.xml): Data file used to display the log compressed data as gray     s cale.
o

RF data file (*.rf.xml): Beamformed RF data. Useful when the original         f requency information
o
is required.
To Export RF Data
 1.  Open a saved image that has RF data.
 2.  Tap Export.
 3.  In the Export Image window, select the target folder for the export.
Modes
Vevo F2 Imaging System User Manual
234
