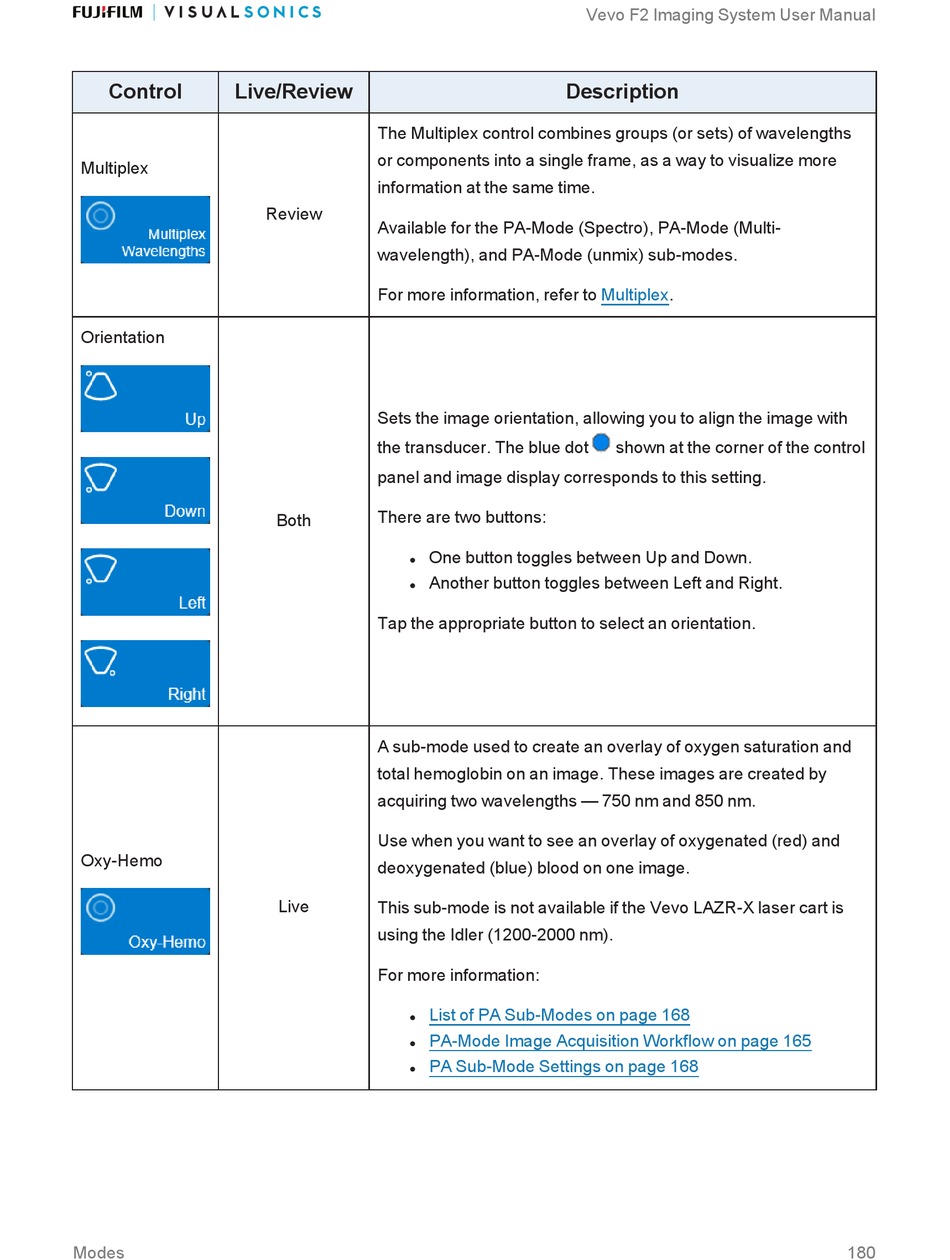

FujiFilm VisualSonics Vevo F2 User Manual page 180

Imaging system
Table of Contents

Advertisement

Control
Live/Review
Multiplex
Orientation
Oxy-Hemo
Modes
The Multiplex control combines groups (or sets) of wavelengths
or components into a single frame, as a way to visualize more
information at the same time.
Review
Available for the PA-Mode (Spectro), PA-Mode (Multi-
wavelength), and PA-Mode (unmix) sub-modes.
For more information, refer to Multiplex.
Sets the image orientation, allowing you to align the image with
the transducer. The blue dot
panel and image display corresponds to this setting.
There are two buttons:
Both

One button toggles between Up and Down.
l

Another button toggles between Left and Right.
l
Tap the appropriate button to select an orientation.
A sub-mode used to create an overlay of oxygen saturation and
total hemoglobin on an image. These images are created by
acquiring   t wo wavelengths — 750 nm and 850 nm.
Use when you want to see an overlay of oxygenated (red) and
deoxygenated (blue) blood on one image.
Live
This sub-mode is not available if the Vevo LAZR-X laser cart is
using the Idler (1200-2000 nm).
For more information:

List of PA Sub-Modes on page 168
l

PA-Mode Image Acquisition Workflow on page 165
l

PA Sub-Mode Settings on page 168
l
Vevo F2 Imaging System User Manual
Description
 shown at the corner of the control
180
