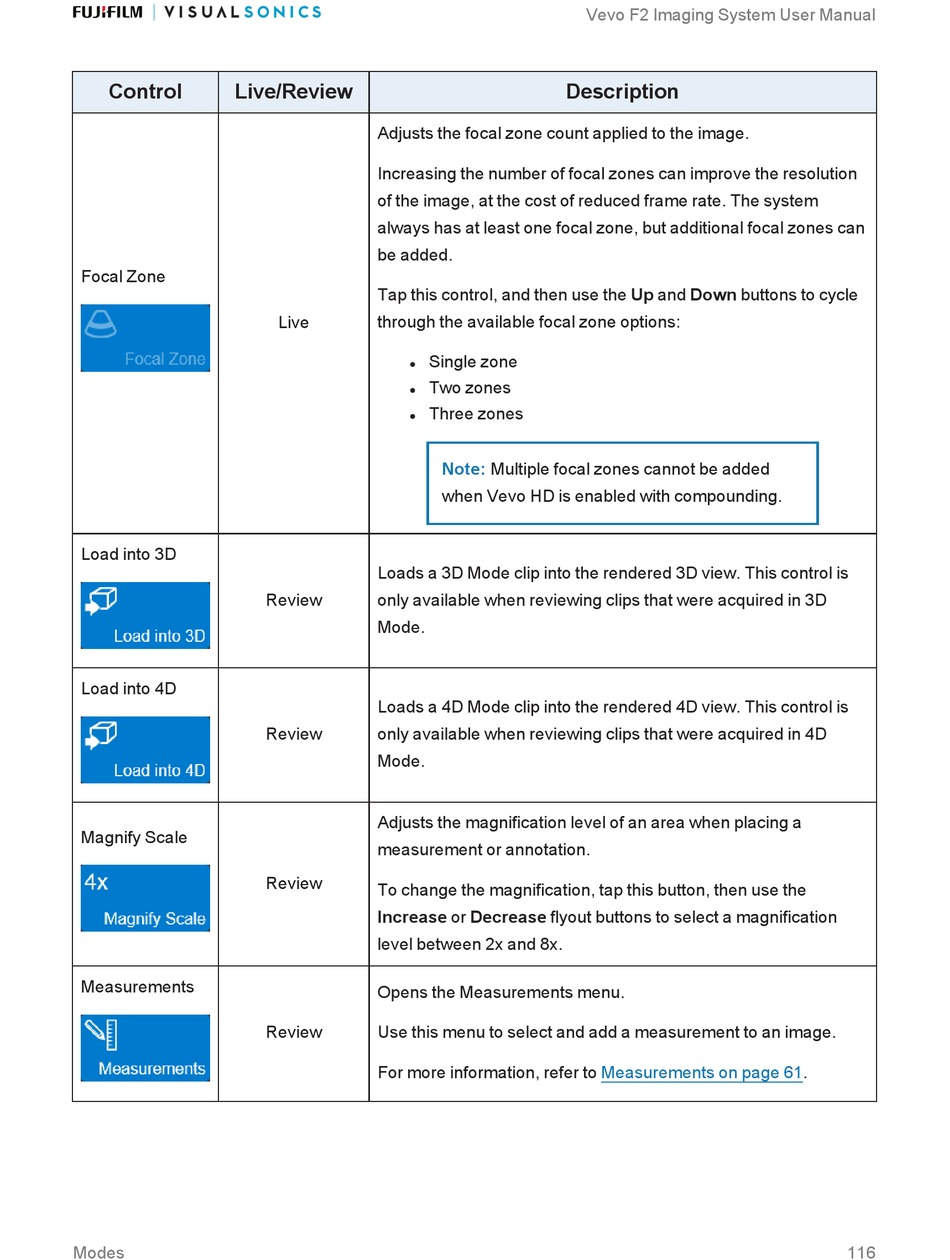

FujiFilm VisualSonics Vevo F2 User Manual page 116

Control Live/Review
Focal Zone
Load into 3D
Load into 4D
Magnify Scale
Measurements
Modes
Adjusts the focal zone count applied to the image.
Increasing the number of focal zones can improve the resolution
of the image, at the cost of reduced frame rate. The system
always has at least one focal zone, but additional focal zones can
be added.
Tap this control, and then use the Up and Down buttons to cycle
Live through the available focal zone options:
Single zone
l
Two zones
l
Three zones
l
Note:
when Vevo HD is enabled with compounding.
Loads a 3D Mode clip into the rendered 3D view. This control is
Review only available when reviewing clips that were acquired in 3D
Mode.
Loads a 4D Mode clip into the rendered 4D view. This control is
Review only available when reviewing clips that were acquired in 4D
Mode.
Adjusts the magnification level of an area when placing a
measurement or annotation.
Review
To change the magnification, tap this button, then use the
Increase or Decrease flyout buttons to select a magnification
level between 2x and 8x.
Opens the Measurements menu.
Review Use this menu to select and add a measurement to an image.
For more information, refer to Measurements on page 61.
Vevo F2 Imaging System User Manual
Description
Multiple focal zones cannot be added
