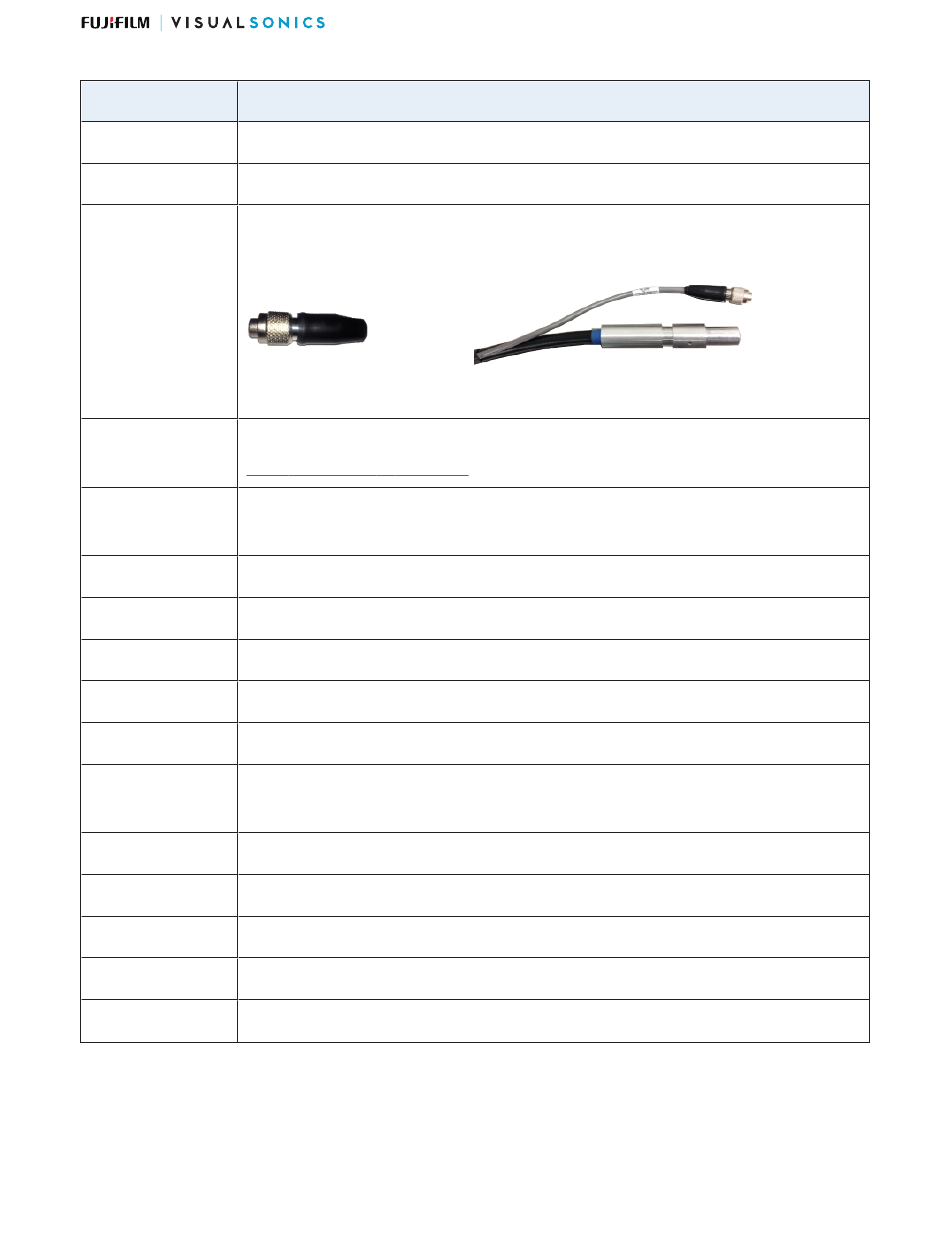

Connector
Left fiber port
Idler fiber port with a tuning range of 1200 - 2000 nm.
Right fiber port
Signal fiber port with a tuning range of 680 - 970 nm.
A safety interlock that controls the delivery of laser light. The laser defeater or
transducer interlock cable must be connected in order for the laser to operate.
Delivery interlock
External energy
Connect the external energy sensor when you need to calibrate the laser. Refer to
sensor
Laser Calibration on page 190.
Communication cable. Connect the USB/DB-9 cable from here to an USB
RS232 REMOTE
connector on the system.
STATUS OUTPUT Used by Technical Support only.
CONTROL INPUT
Used by Technical Support only.
USB 2.0 B
Used by Technical Support only.
LAMP SYNC IN
Used by Technical Support only.
LAMP SYNC OUT
Connect a BNC cable from here to the Trig In connector on the back of the system.
Connect a BNC cable from here to the Trig Out connector on the back of the
Q TRIG IN
system.
Q TRIG OUT
Used by Technical Support only.
S TRIG OUT
Used by Technical Support only.
ENC A OUT
Used by Technical Support only.
ENC B OUT
Used by Technical Support only.
HOP TRIG OUT
Used by Technical Support only.
Components
Defeater
Transducer interlock cable (top) and fiber optic ferrule (bottom)
Vevo F2 Imaging System User Manual
Description
416
