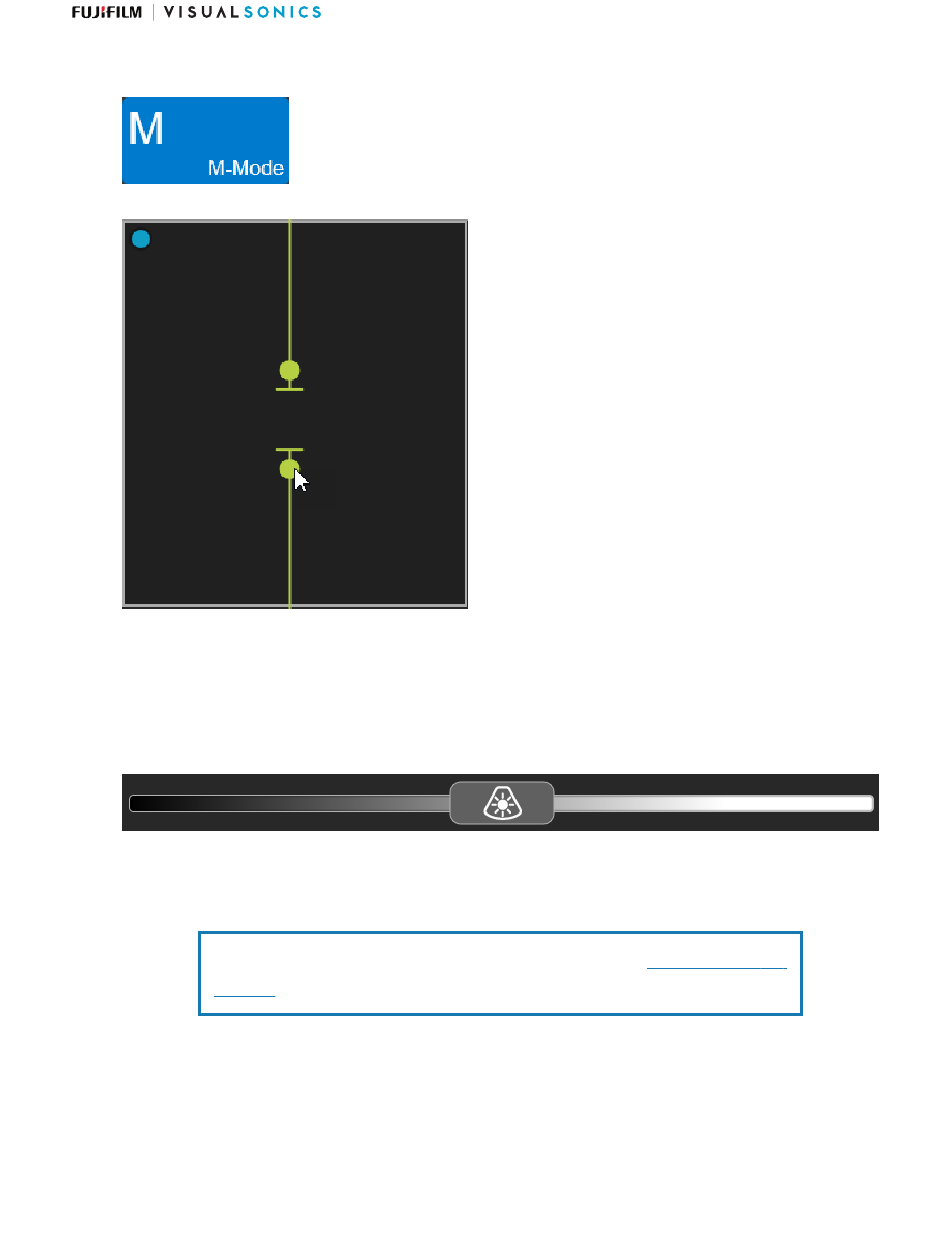

 1.  Start an imaging session, then tap M-Mode.
The B-Mode scout window appears with the sample gate.
 2.  Make any necessary adjustments to the gate:

To reposition the gate, tap and drag it to a new location.
o

To resize the gate, tap and drag either side of the gate, or use the Gate Size control.
o
 3.  (AM-Mode) To adjust the angle of the line, use the AM-Mode Angle control. This automatically
switches the system to AM-Mode.
 4.  To adjust the   g ain, use the gain slider.
 5.  Adjust any other controls as needed.
 6.  Tap Start.
 7.  To save the image, tap Save Clip or Save Frame.
Note: For more information about saving images, refer to Saving Images on
page 98
 8.  Tap Stop to stop scanning.
M-Mode and AM-Mode Controls
This section contains a list of controls that appear on the M-Mode tab of the More Controls menu.
Modes
