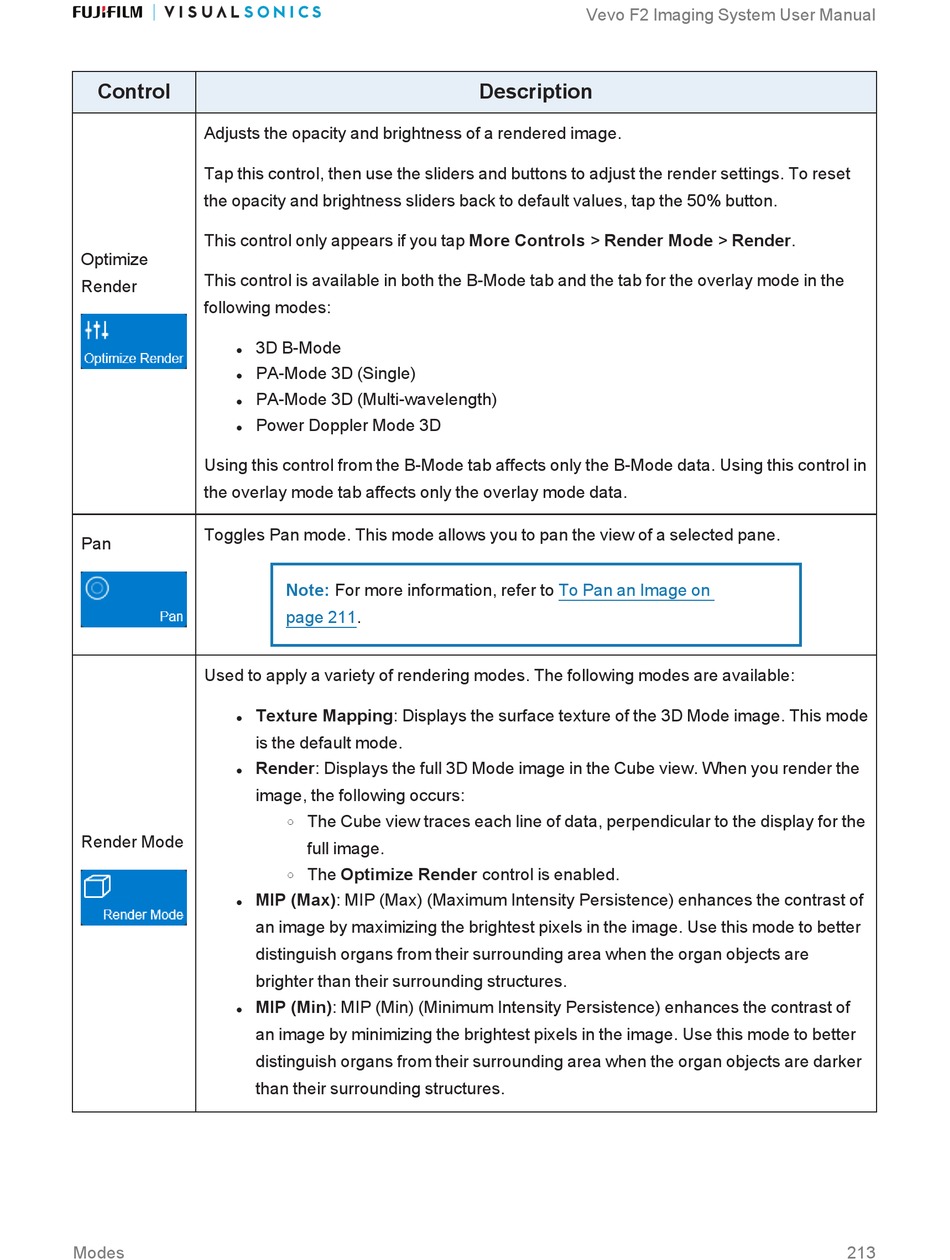

FujiFilm VisualSonics Vevo F2 User Manual page 213

Control
Adjusts the opacity and brightness of a rendered image.
Tap this control, then use the sliders and buttons to adjust the render settings. To reset
the opacity and brightness sliders back to default values, tap the 50% button.
This control only appears if you tap More Controls > Render Mode > Render.
Optimize
This control is available in both the B-Mode tab and the tab for the overlay mode in the
Render
following modes:
l
l
l
l
Using this control from the B-Mode tab affects only the B-Mode data. Using this control in
the overlay mode tab affects only the overlay mode data.
Toggles Pan mode. This mode allows you to pan the view of a selected pane.
Pan
Used to apply a variety of rendering modes. The following modes are available:
l
l
Render Mode
l
l
Modes
3D B-Mode
PA-Mode 3D (Single)
PA-Mode 3D (Multi-wavelength)
Power Doppler Mode 3D
Note: For more information, refer to To Pan an Image on
page 211.
Texture Mapping: Displays the surface texture of the 3D Mode image. This mode
is the default mode.
Render: Displays the full 3D Mode image in the Cube view. When you render the
image, the following occurs:
The Cube view traces each line of data, perpendicular to the display for the
o
full image.
The Optimize Render control is enabled.
o
MIP (Max): MIP (Max) (Maximum Intensity Persistence) enhances the contrast of
an image by m aximizing the brightest pixels in the image. Use this mode to better
distinguish o rgans from their surrounding area when the organ objects are
brighter than their s urrounding structures.
MIP (Min): MIP (Min) (Minimum Intensity Persistence) enhances the contrast of
an image by m inimizing the brightest pixels in the image. Use this mode to better
distinguish o rgans from their surrounding area when the organ objects are darker
than their s urrounding structures.
Vevo F2 Imaging System User Manual
Description
213
