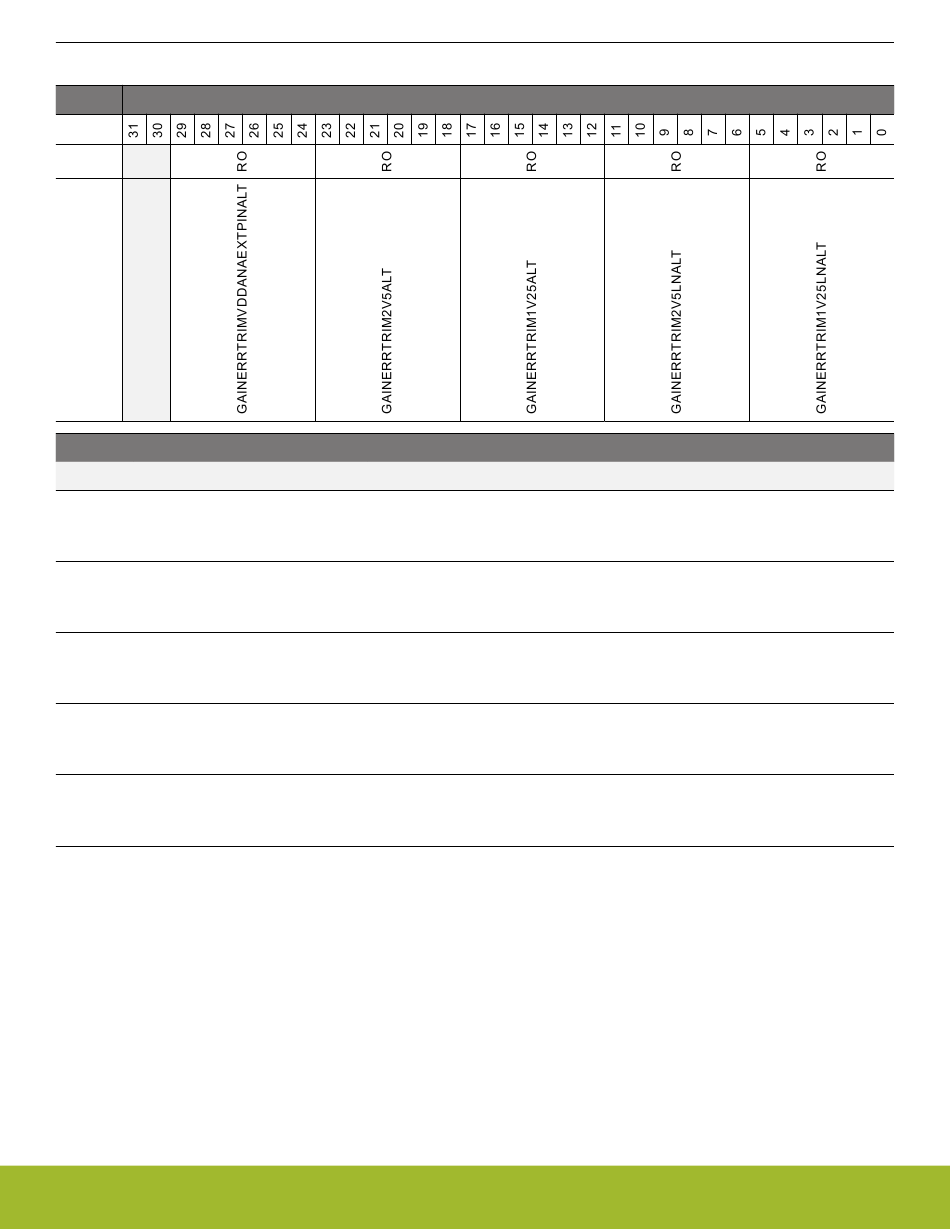

4.7.46 VDAC0ALTCAL - VDAC0 Cals for Alternate Path

Offset
0x188
Access
Name
Bit Name
31:30 Reserved
29:24 GAINERRTRIMVDDANAEXTPI-
NALT
23:18 GAINERRTRIM2V5ALT
17:12 GAINERRTRIM1V25ALT
11:6 GAINERRTRIM2V5LNALT
5:0 GAINERRTRIM1V25LNALT
silabs.com | Building a more connected world.
Bit Position
Access Description
Reserved for future use
RO Gain Error Trim Value for DAC alternative output using referen-
ces VDDANA and EXTPIN
RO Gain Error Trim Value for DAC alternative output using reference
2V5
RO Gain Error Trim Value for DAC alternative output using reference
1V25
RO Gain Error Trim Value for DAC alternative output using reference
2V5LN
RO Gain Error Trim Value for DAC alternative output using reference
1V25LN
