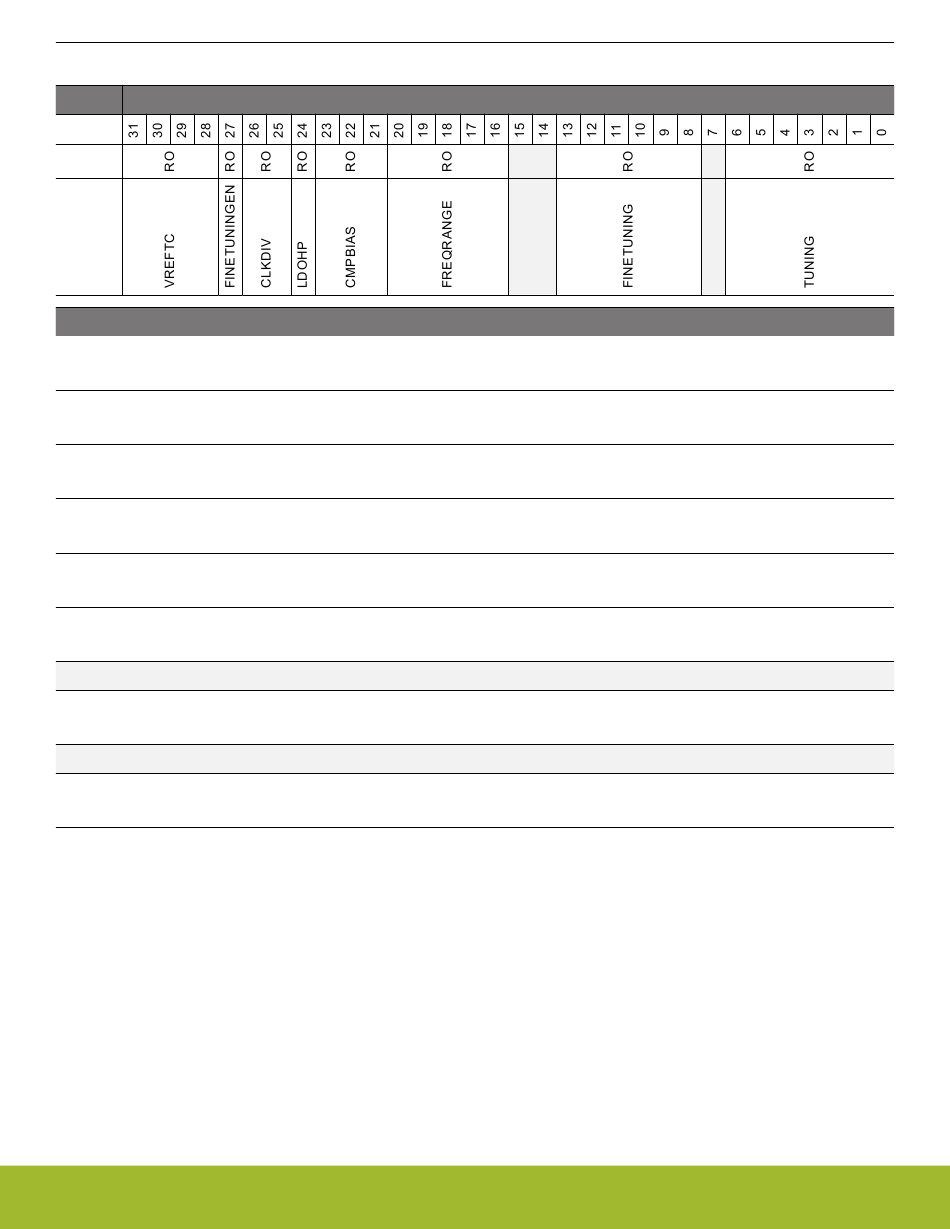

4.7.19 HFRCOCAL6 - HFRCO Calibration Register (13 MHz)

Offset
0x098
Access
Name
Bit Name
31:28 VREFTC
27 FINETUNINGEN
26:25 CLKDIV
24 LDOHP
23:21 CMPBIAS
20:16 FREQRANGE
15:14 Reserved
13:8 FINETUNING
7 Reserved
6:0 TUNING
silabs.com | Building a more connected world.
Bit Position
Access Description
RO HFRCO Temperature Coefficient Trim on Comparator Reference
RO HFRCO enable reference for fine tuning
RO HFRCO Clock Output Divide
RO HFRCO LDO High Power Mode
RO HFRCO Comparator Bias Current
RO HFRCO Frequency Range
Reserved for future use
RO HFRCO Fine Tuning Value
Reserved for future use
RO HFRCO Tuning Value
Reference Manual
