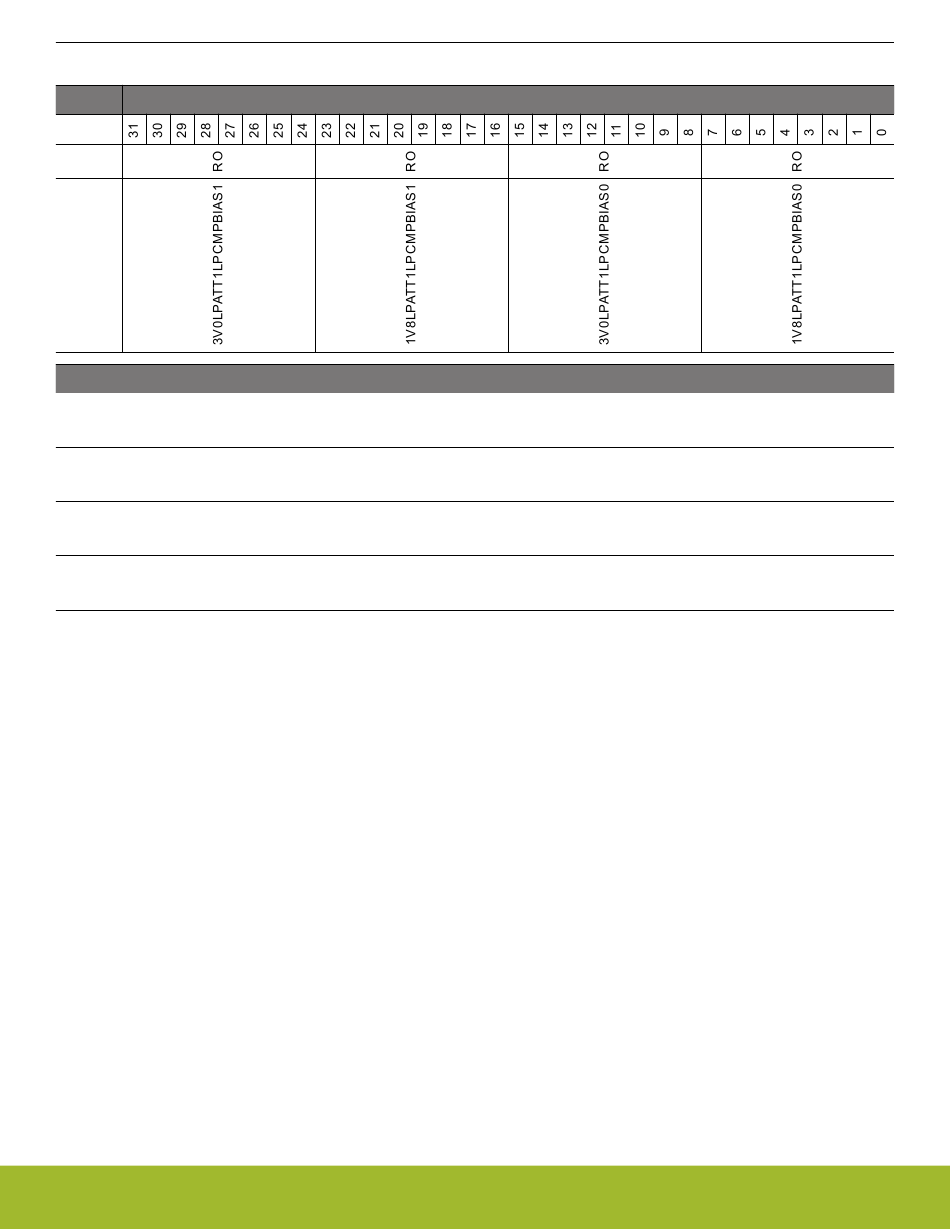

4.7.41 DCDCLPVCTRL2 - DCDC Low-power VREF Trim Register 2

Offset
0x174
Access
Name
Bit Name
31:24 3V0LPATT1LPCMPBIAS1
23:16 1V8LPATT1LPCMPBIAS1
15:8 3V0LPATT1LPCMPBIAS0
7:0 1V8LPATT1LPCMPBIAS0
silabs.com | Building a more connected world.
Bit Position
Access Description
RO DCDC LPVREF Trim for 3.0V output, LPATT=1, LPCMPBIAS=1
RO DCDC LPVREF Trim for 1.8V output, LPATT=1, LPCMPBIAS=1
RO DCDC LPVREF Trim for 3.0V output, LPATT=1, LPCMPBIAS=0
RO DCDC LPVREF Trim for 1.8V output, LPATT=1, LPCMPBIAS=0
Reference Manual
