4.7.14 ADC0CAL1 - ADC0 calibration register 1

Offset
0x064
Access
Name
Bit Name
31 Reserved
30:24 GAIN5VDIFF
23:20 NEGSEOFFSET5VDIFF
19:16 OFFSET5VDIFF
15 Reserved
14:8 GAINVDD
7:4 NEGSEOFFSETVDD
3:0 OFFSETVDD
silabs.com | Building a more connected world.

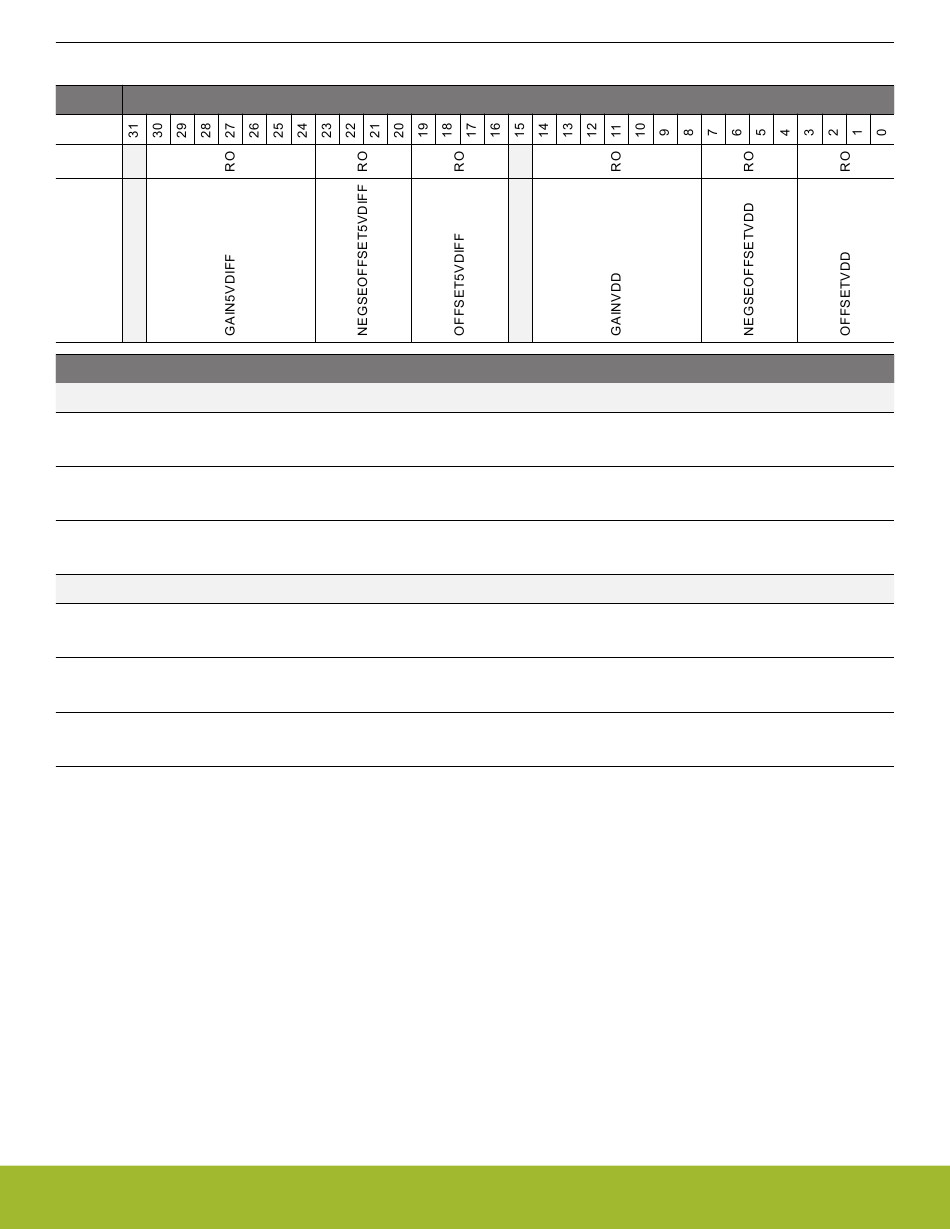

Bit Position
Access Description
Reserved for future use
RO Gain for for 5V differential reference
RO Negative single ended offset with for 5V differential reference
RO Offset for 5V differential reference
Reserved for future use
RO Gain for VDD reference
RO Negative single ended offset for VDD reference
RO Offset for VDD reference
