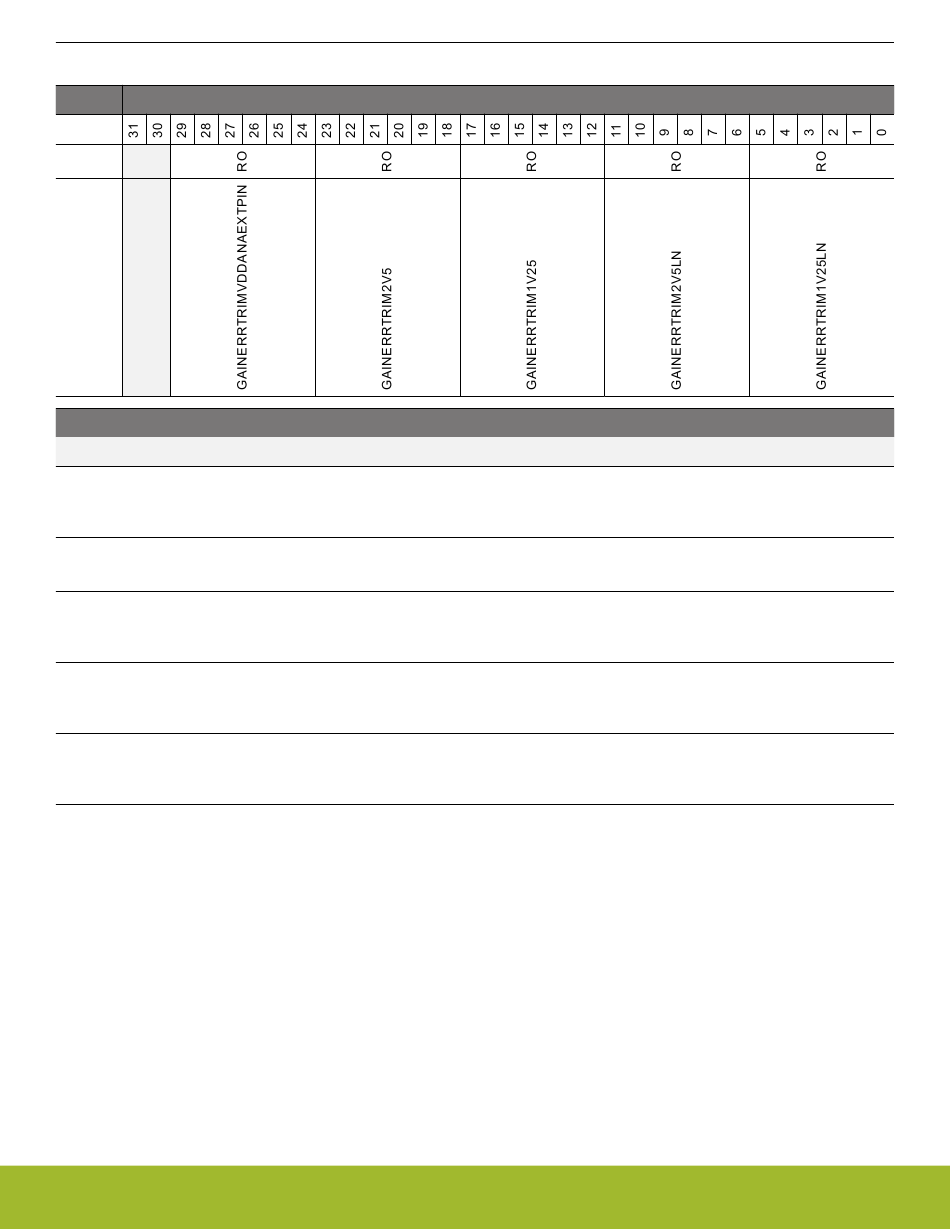

4.7.45 VDAC0MAINCAL - VDAC0 Cals for Main Path

Offset
0x184
Access
Name
Bit Name
31:30 Reserved
29:24 GAINERRTRIMVDDANAEXTPIN
23:18 GAINERRTRIM2V5
17:12 GAINERRTRIM1V25
11:6 GAINERRTRIM2V5LN
5:0 GAINERRTRIM1V25LN
silabs.com | Building a more connected world.
Bit Position
Access Description
Reserved for future use
RO Gain Error Trim Value for DAC main output using references
VDDANA and EXTPIN
RO Gain Error Trim Value for DAC main output using reference 2V5
RO Gain Error Trim Value for DAC main output using reference
1V25
RO Gain Error Trim Value for DAC main output using reference
2V5LN
RO Gain Error Trim Value for DAC main output using reference
1V25LN
