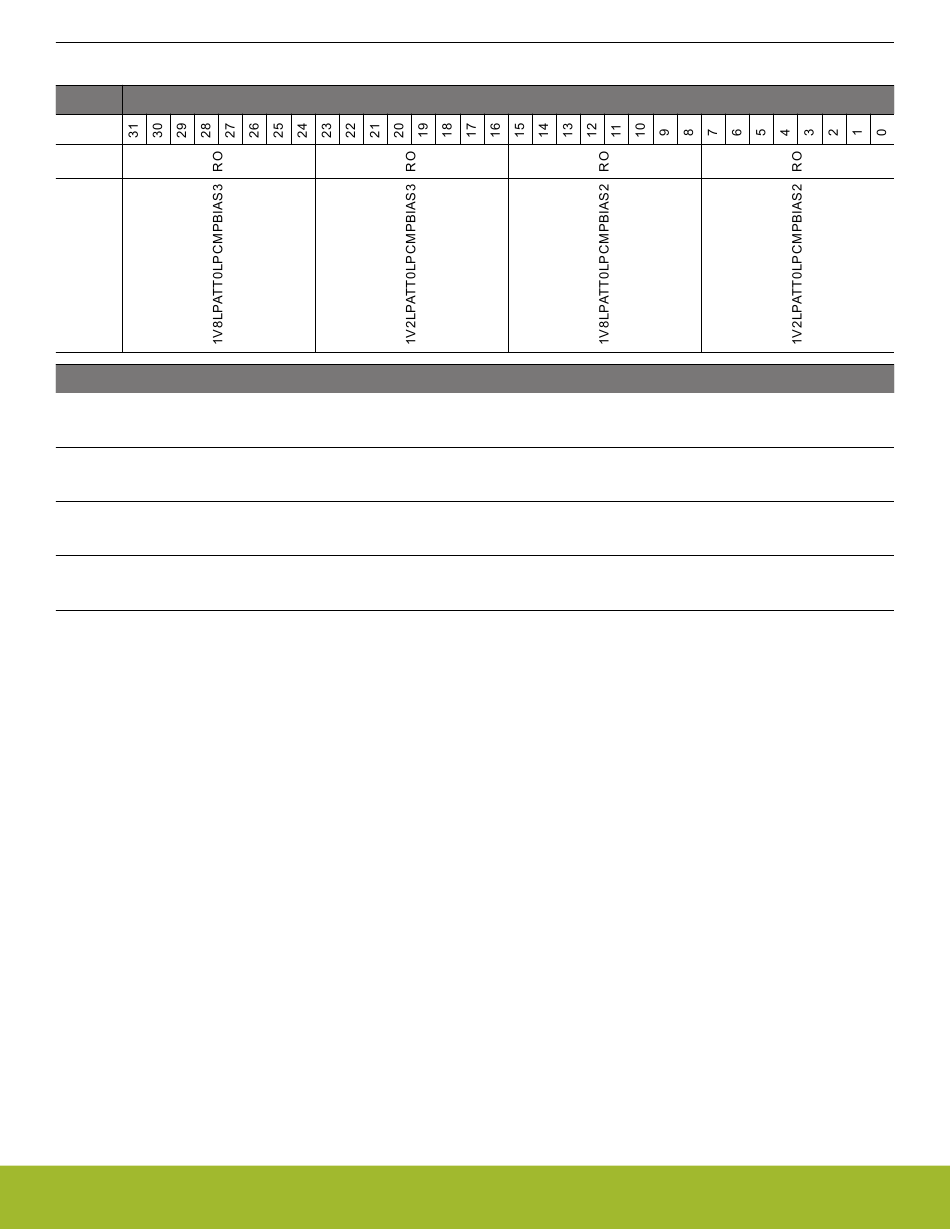

4.7.40 DCDCLPVCTRL1 - DCDC Low-power VREF Trim Register 1

Offset
0x170
Access
Name
Bit Name
31:24 1V8LPATT0LPCMPBIAS3
23:16 1V2LPATT0LPCMPBIAS3
15:8 1V8LPATT0LPCMPBIAS2
7:0 1V2LPATT0LPCMPBIAS2
silabs.com | Building a more connected world.
Bit Position
Access Description
RO DCDC LPVREF Trim for 1.8V output, LPATT=0, LPCMPBIAS=3
RO DCDC LPVREF Trim for 1.2V output, LPATT=0, LPCMPBIAS=3
RO DCDC LPVREF Trim for 1.8V output, LPATT=0, LPCMPBIAS=2
RO DCDC LPVREF Trim for 1.2V output, LPATT=0, LPCMPBIAS=2
Reference Manual
