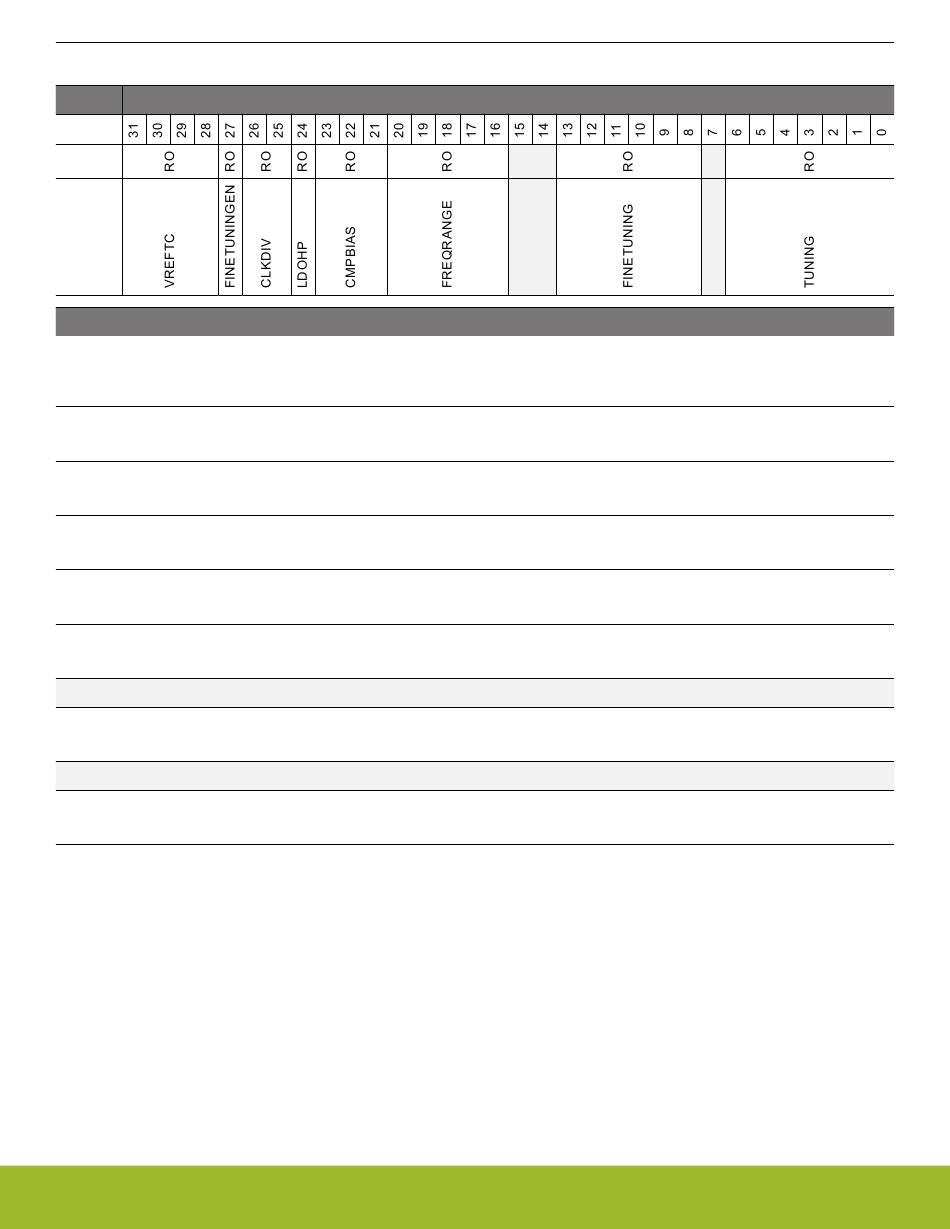

4.7.31 AUXHFRCOCAL11 - AUXHFRCO Calibration Register (32 MHz)

Offset
0x10C
Access
Name
Bit Name
31:28 VREFTC
27 FINETUNINGEN
26:25 CLKDIV
24 LDOHP
23:21 CMPBIAS
20:16 FREQRANGE
15:14 Reserved
13:8 FINETUNING
7 Reserved
6:0 TUNING
silabs.com | Building a more connected world.
Bit Position
Access Description
RO AUXHFRCO Temperature Coefficient Trim on Comparator Ref-
erence
RO AUXHFRCO enable reference for fine tuning
RO AUXHFRCO Clock Output Divide
RO AUXHFRCO LDO High Power Mode
RO AUXHFRCO Comparator Bias Current
RO AUXHFRCO Frequency Range
Reserved for future use
RO AUXHFRCO Fine Tuning Value
Reserved for future use
RO AUXHFRCO Tuning Value
Reference Manual
Memory and Bus System
Rev. 1.1 | 83
