5.7

Usage Notes

5.7.1

Contention between Interrupt Generation and Disabling

When an interrupt enable bit is cleared to 0 to mask interrupts, the masking becomes effective
after execution of the instruction.
When an interrupt enable bit is cleared to 0 by an instruction such as BCLR or MOV, if an
interrupt is generated during execution of the instruction, the interrupt concerned will still be
enabled on completion of the instruction, and so interrupt exception handling for that interrupt will
be executed on completion of the instruction. However, if there is an interrupt request of higher
priority than that interrupt, interrupt exception handling will be executed for the higher-priority
interrupt, and the lower-priority interrupt will be ignored. The same also applies when an interrupt
source flag is cleared to 0. Figure 5.6 shows an example in which the TCIEV bit in the TPU's
TIER_0 register is cleared to 0. The above contention will not occur if an enable bit or interrupt
source flag is cleared to 0 while the interrupt is masked.
φ
Internal
address bus
Internal
write signal
TCIEV
TCFV
TCIV
interrupt signal

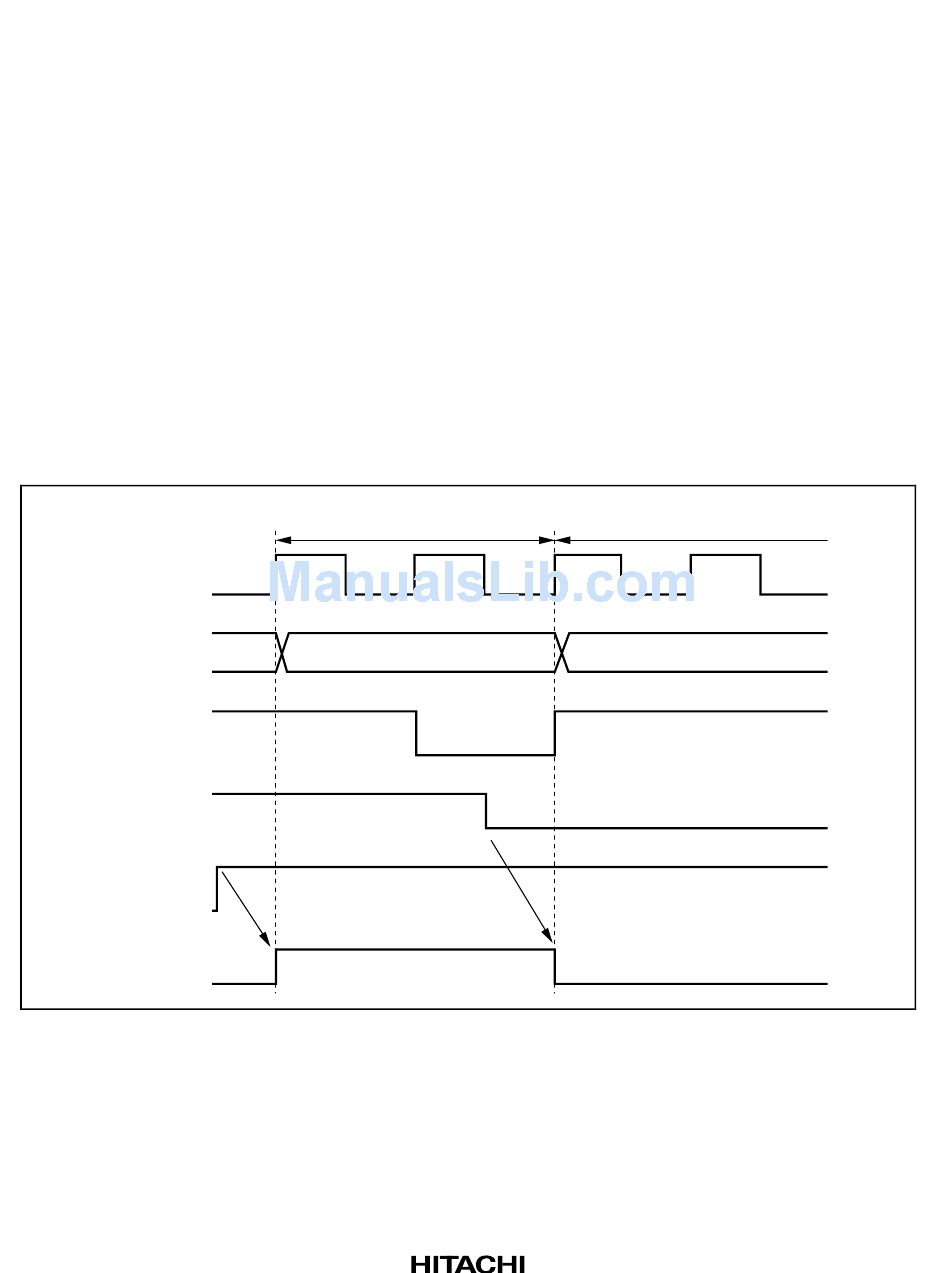

Figure 5.6 Contention between Interrupt Generation and Disabling
Rev. 1.0, 09/01, page 102 of 904
TIER_0 write cycle by CPU
TIER_0 address
TCIV exception handling
