Low-power universal asynchronous receiver transmitter (LPUART)
1.
Write the LPUART_TDR register address in the DMA control register to configure it as
the destination of the transfer. The data is moved to this address from memory after
each TXE (or TXFNF if FIFO mode is enabled) event.
2.
Write the memory address in the DMA control register to configure it as the source of
the transfer. The data is loaded into the LPUART_TDR register from this memory area
after each TXE (or TXFNF if FIFO mode is enabled) event.
3.
Configure the total number of bytes to be transferred to the DMA control register.
4.
Configure the channel priority in the DMA register
5.
Configure DMA interrupt generation after half/ full transfer as required by the
application.
6.
Clear the TC flag in the LPUART_ISR register by setting the TCCF bit in the
LPUART_ICR register.
7.
Activate the channel in the DMA register.
When the number of data transfers programmed in the DMA Controller is reached, the DMA
controller generates an interrupt on the DMA channel interrupt vector.
In transmission mode, once the DMA has written all the data to be transmitted (the TCIF flag
is set in the DMA_ISR register), the TC flag can be monitored to make sure that the
LPUART communication is complete. This is required to avoid corrupting the last
transmission before disabling the LPUART or entering low-power mode. Software must wait
until TC = 1. The TC flag remains cleared during all data transfers and it is set by hardware
at the end of transmission of the last frame.
Idle preamble
TX line
TXE flag
DMA request
F1
LPUART_TDR
TC flag
DMA writes
LPUART_TDR
DMA TCIF flag(transfer complete)
Software
configures
DMA writes F1
DMA to send 3
into
data blocks
LPUART_TDR
and enables
LPUART
Note:
When FIFO management is enabled, the DMA request is triggered by Transmit FIFO not full
(i.e. TXFNF = 1).
1220/1450

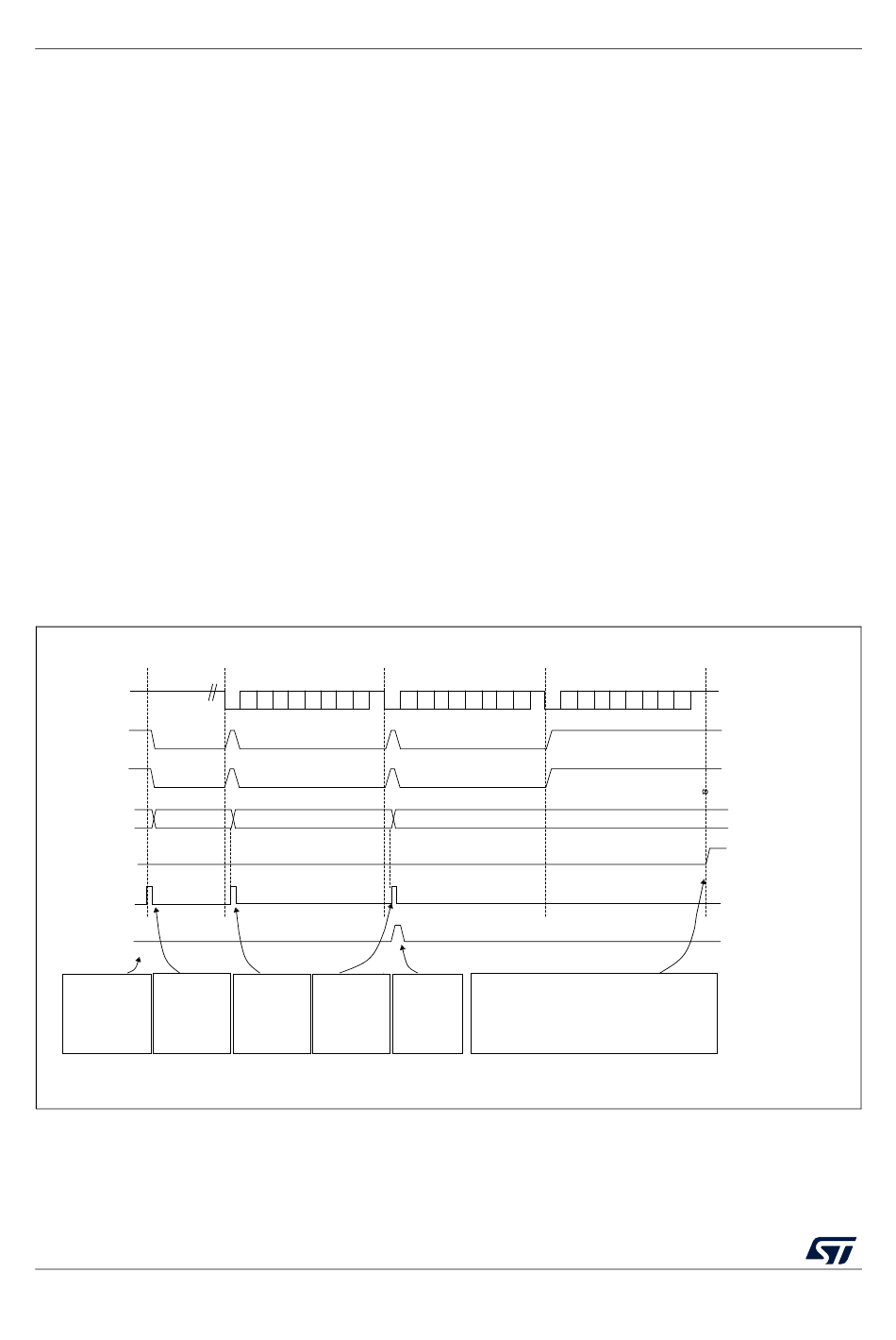

Figure 340. Transmission using DMA

Frame 1
Set by hardware cleared by
Set by hardware cleared
DMA read
by DMA read
F2
Set by hardware
The DMA
DMA writes F2
DMA writes F3
transfer is
into
into
complete
LPUART_TDR
LPUART_TDR
(TCIF=1 in
DMA_ISR)
RM0453 Rev 5
Frame 2
Set by hardware
Ignored by the DMA because the transfer
is complete
F3
Cleared by software
Software waits until TC=1
Frame 3
Set by hardware
MSv31890V2
