Figure 295. Transfer Bus Diagrams For I2C Master Transmitter; (Mandatory Events Only) - STMicroelectronics STM32WL5 Series Reference Manual

Inter-integrated circuit (I2C) interface
Example I2C master transmitter 2 bytes, automatic end mode (STOP)
NBYTES
INIT: program Slave address, program NBYTES = 2, AUTOEND=1, set START
EV1: TXIS ISR: wr data1
EV2: TXIS ISR: wr data2
Example I2C master transmitter 2 bytes, software end mode (RESTART)
NBYTES
INIT: program Slave address, program NBYTES = 2, AUTOEND=0, set START
EV1: TXIS ISR: wr data1
EV2: TXIS ISR: wr data2
EV3: TC ISR: program Slave address, program NBYTES = N, set START
1076/1450

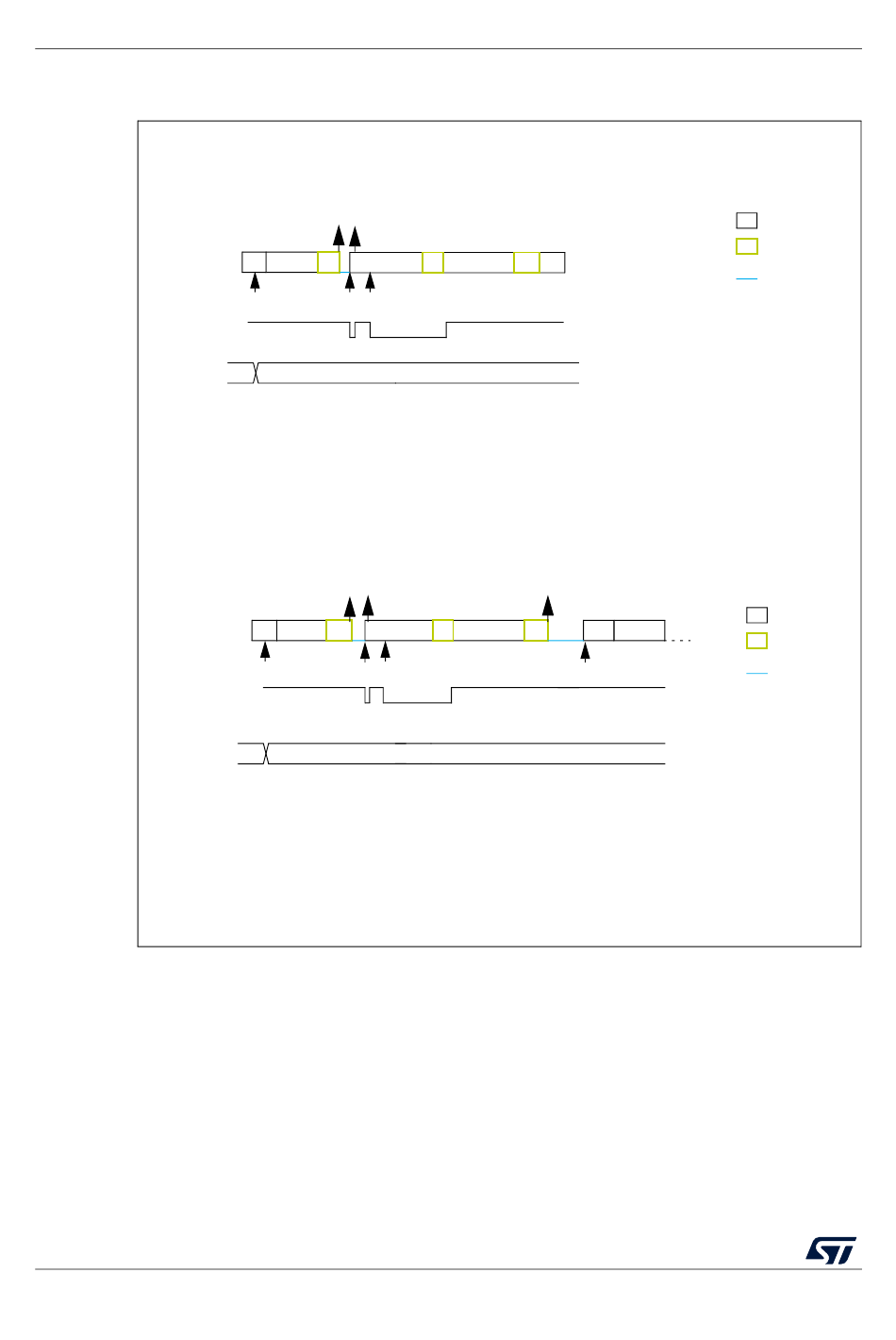

Figure 295. Transfer bus diagrams for I2C master transmitter

TXIS TXIS
S Address A data1
INIT EV1 EV2
TXE
xx
TXIS TXIS
S Address A
INIT
EV1 EV2
TXE
xx

(mandatory events only)

A data2 A P
2
TC
data1 A data2 A
2
