Application Guide | iC7 Series Motion
Sensorless motor/speed/position control
Position
Controller
Feedback source

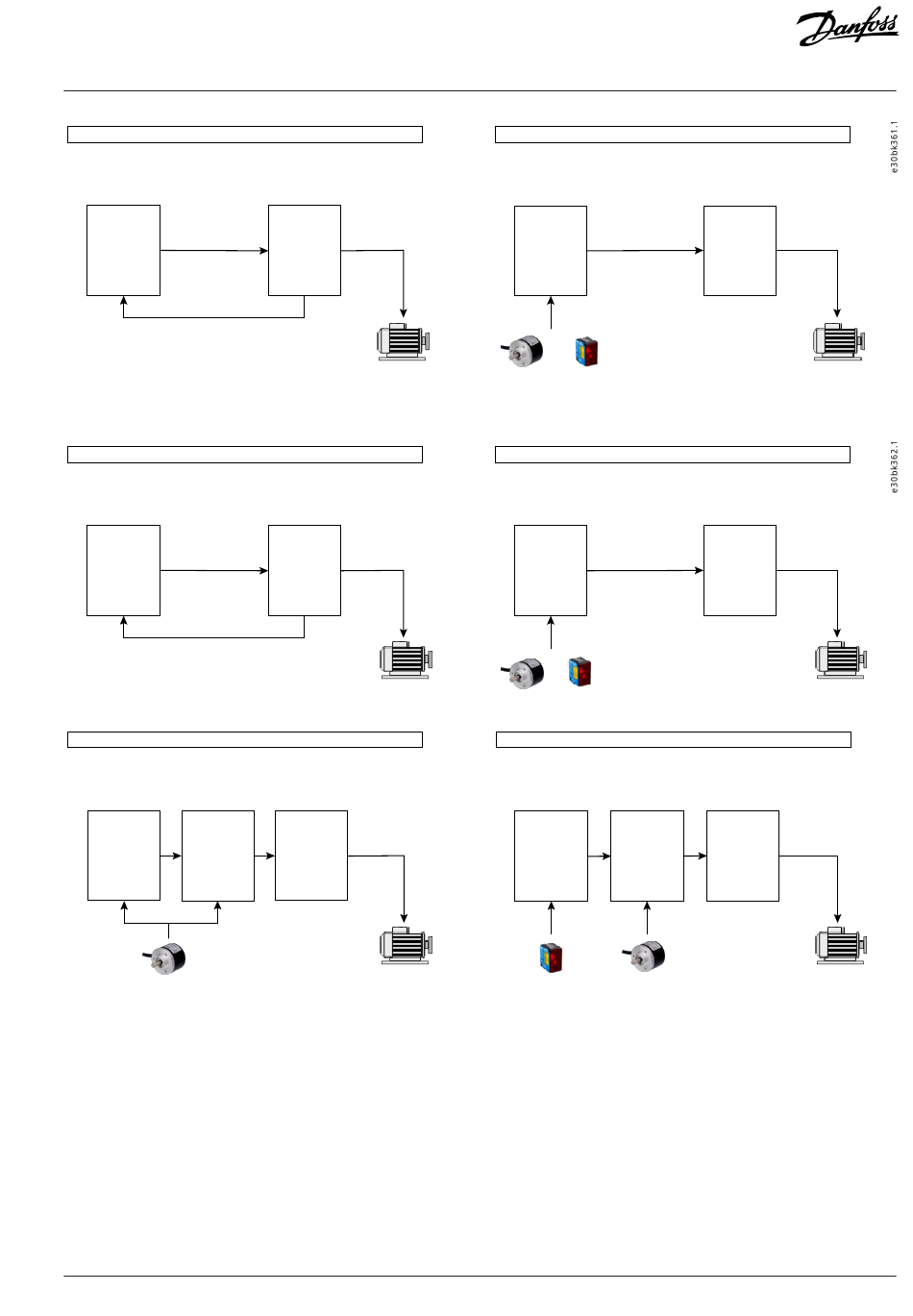

Figure 2: Control Configuration in U/f Motor Control
Sensorless motor/speed/position control
Position
Controller
Feedback source
Sensorless motor control, speed/position control with feedback
Position Speed
Controller Controller
Feedback source Feedback source
Figure 3: Control Configuration in VVC+ Motor Control
© 2023.11
Motor control
U/f
Motor control
VVC+
Motor control
VVC+
Sensorless motor/speed control, position control with feedback
Position
Controller
Feedback source
Sensorless motor/speed control, position control with feedback
Position
Controller
Feedback source
Sensorless motor control, speed and position control with separate feedback
Position Speed
Controller Controller
Feedback source Feedback source
AB318753549016en-000301 / 136R0284 |
Motor control
U/f
Motor control
VVC+
Motor control
VVC+
23
