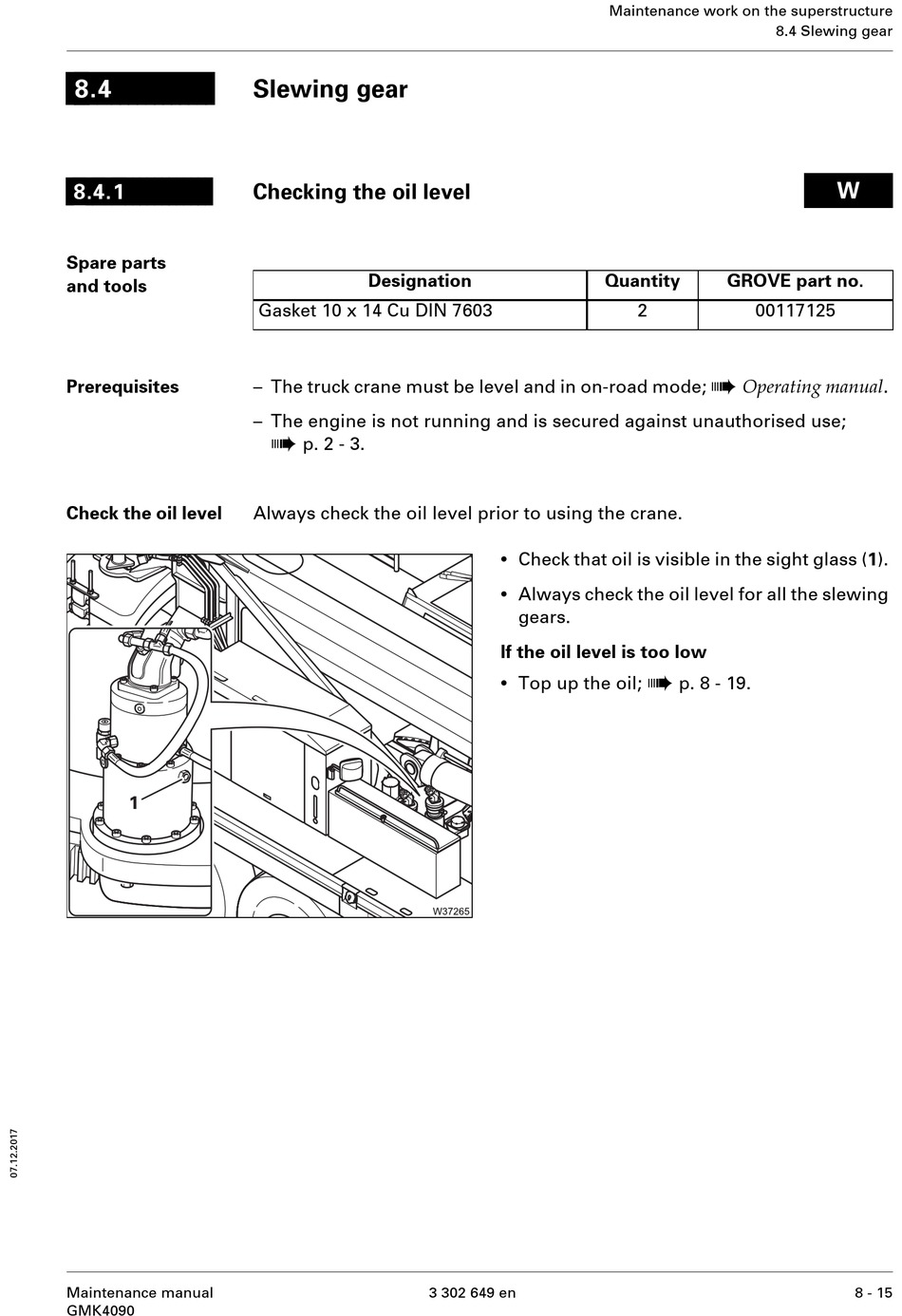

Slewing Gear; Checking The Oil Level - Manitowoc GROVE GMK4090 Maintenance Manual

8.4
8.4.1
Spare parts
and tools
Prerequisites
Check the oil level
Maintenance manual
GMK4090

Slewing gear

Checking the oil level

Designation
Gasket 10 x 14 Cu DIN 7603
– The truck crane must be level and in on-road mode;
– The engine is not running and is secured against unauthorised use;
à
p. 2 - 3.
Always check the oil level prior to using the crane.
•
Check that oil is visible in the sight glass (1).
•
Always check the oil level for all the slewing
gears.
If the oil level is too low
•
Top up the oil;
3 302 649 en
Maintenance work on the superstructure
Quantity GROVE part no.
2 00117125
à
Operating manual .
à
p. 8 - 19.
8.4 Slewing gear
W
8 - 15
