8.4
8.4.1
Spare parts and
tools
Prerequisites
Checking the oil
level
Maintenance manual
GMK5250L

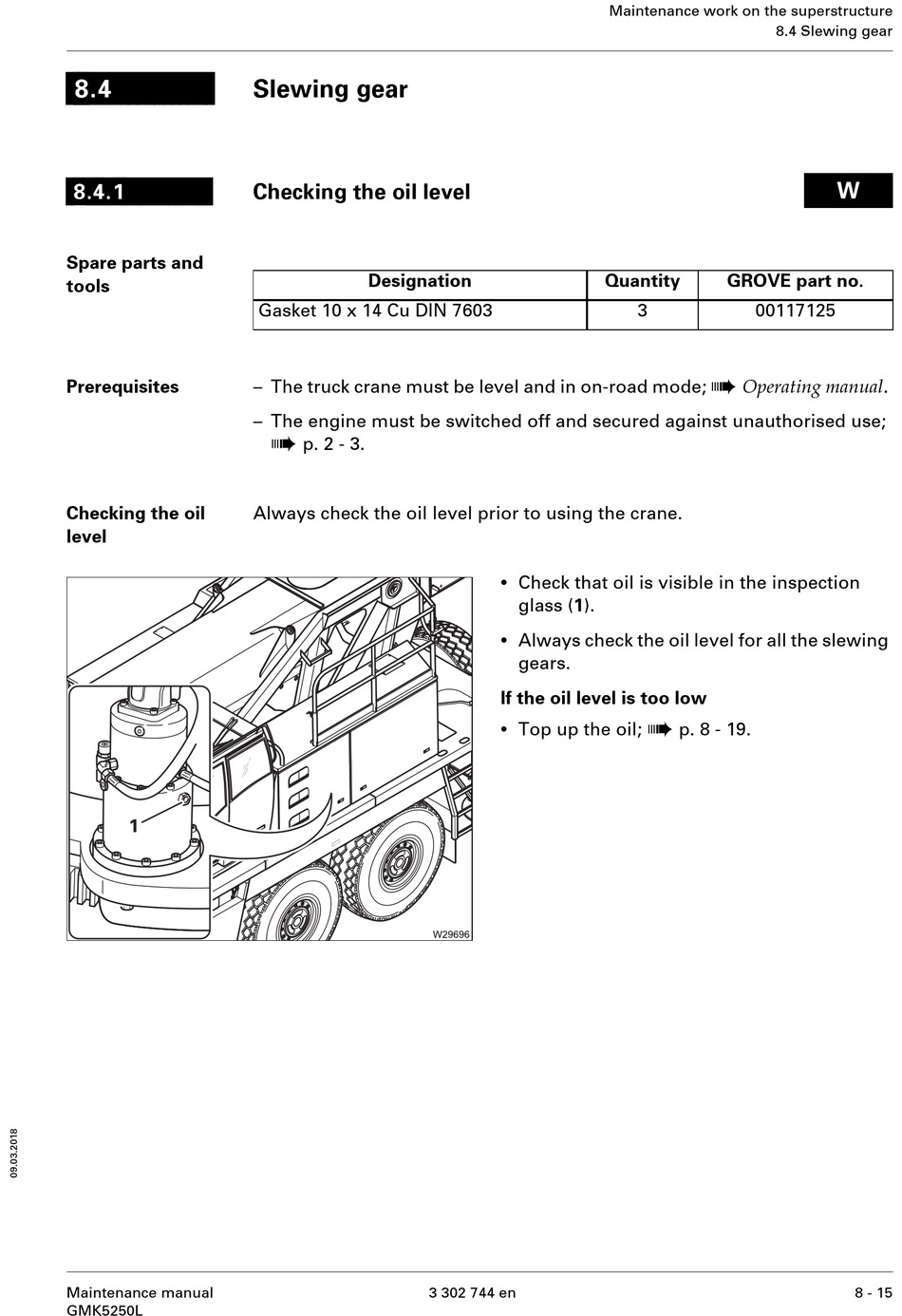

Slewing gear

Checking the oil level

Designation
Gasket 10 x 14 Cu DIN 7603
– The truck crane must be level and in on-road mode;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Always check the oil level prior to using the crane.
•
Check that oil is visible in the inspection
glass (1).
•
Always check the oil level for all the slewing
gears.
If the oil level is too low
•
Top up the oil;
3 302 744 en
Maintenance work on the superstructure
Quantity GROVE part no.
3 00117125
à
Operating manual .
à
p. 8 - 19.
8.4 Slewing gear
W
8 - 15
