Design generation from MIG can be generated using the Create Design flow or the
Verify Pin Changes and Update Design flow. There is no difference between the flow
when generating the design from the MIG tool. Irrespective of the flow by which designs
are generated from the MIG tool, the XCI file is added to the Vivado project. The
implementation flow is the same for all scenarios because the flow depends on the XCI
file added to the project.
6. All MIG generated user design RTL and XDC files are automatically added to the project.
If files are modified and you wish to regenerate them, right-click the XCI file and select
Generate Output Products
X-Ref Target - Figure 5-23
7. Clicking Generate Output Products option brings up the Manage Outputs window
(Figure 5-24).
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
(Figure 5-23).

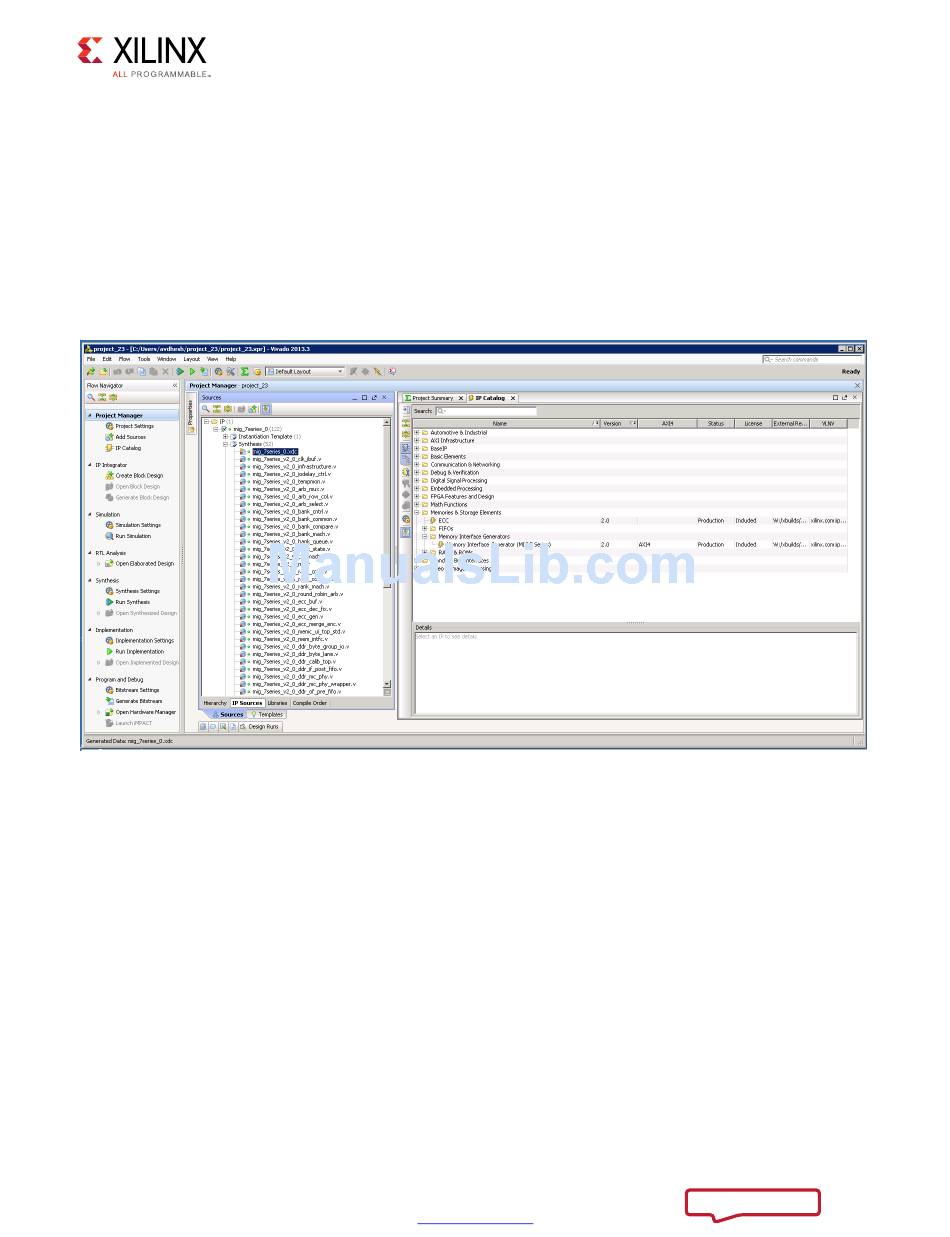

Figure 5-23: Generate RTL and Constraints
