X-Ref Target - Figure 1-14
MIG outputs are generated with the folder name <component name>.
Only alphanumeric characters can be used for <component name>. Special characters
IMPORTANT:
cannot be used. This name should always start with an alphabetical character and can end with an
alphanumeric character.
When invoked from Xilinx Platform Studio (XPS), the component name is corrected to be
the IP instance name from XPS.
4. Click Next to display the Pin Compatible FPGAs page.
Pin Compatible FPGAs
The Pin Compatible FPGAs page lists FPGAs in the selected family having the same
package. If the generated pinout from the MIG tool needs to be compatible with any of
these other FPGAs, this option should be used to select the FPGAs with which the pinout
has to be compatible
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 1: DDR3 and DDR2 SDRAM Memory Interface Solution

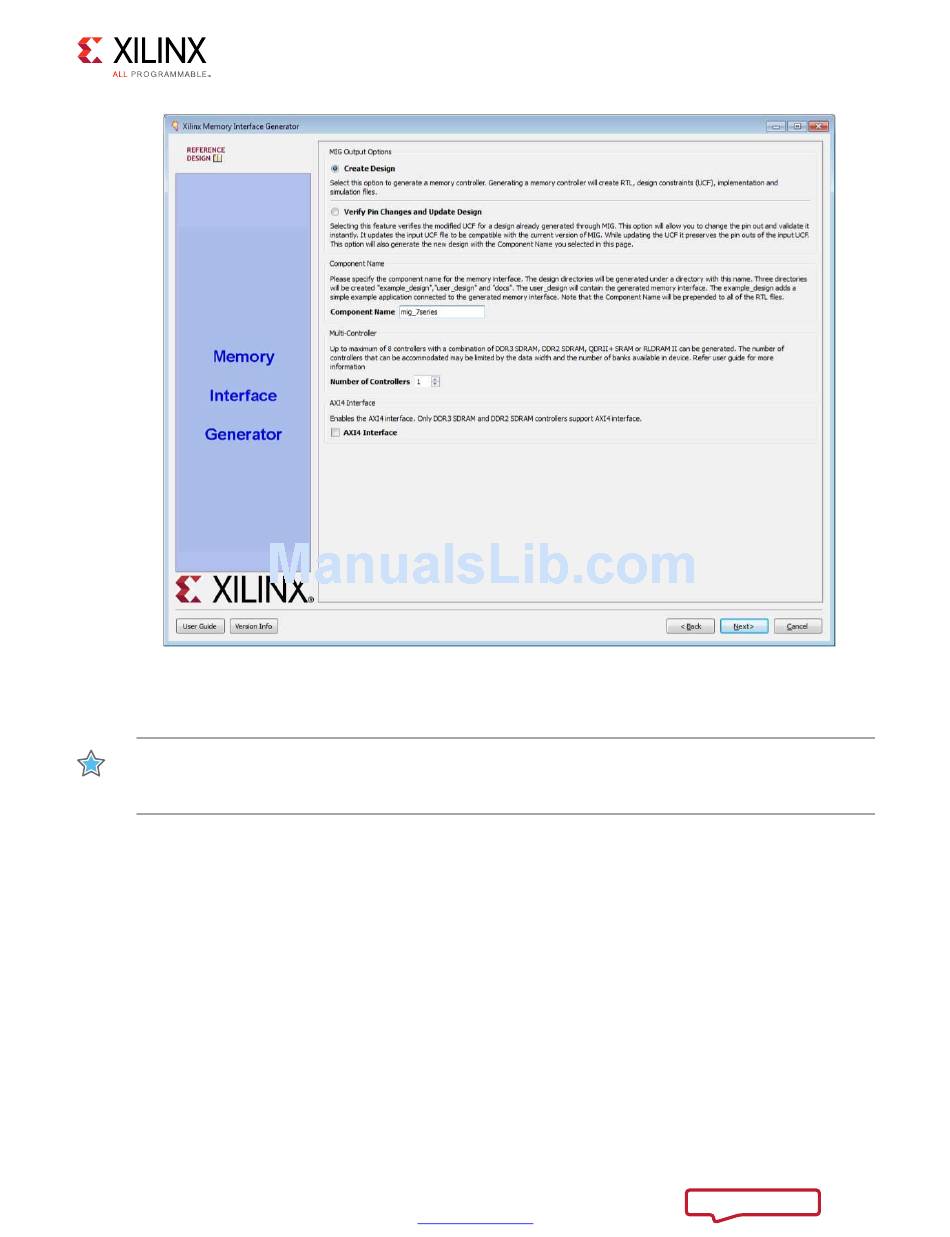

Figure 1-14: MIG Output Options
(Figure 1-15).
