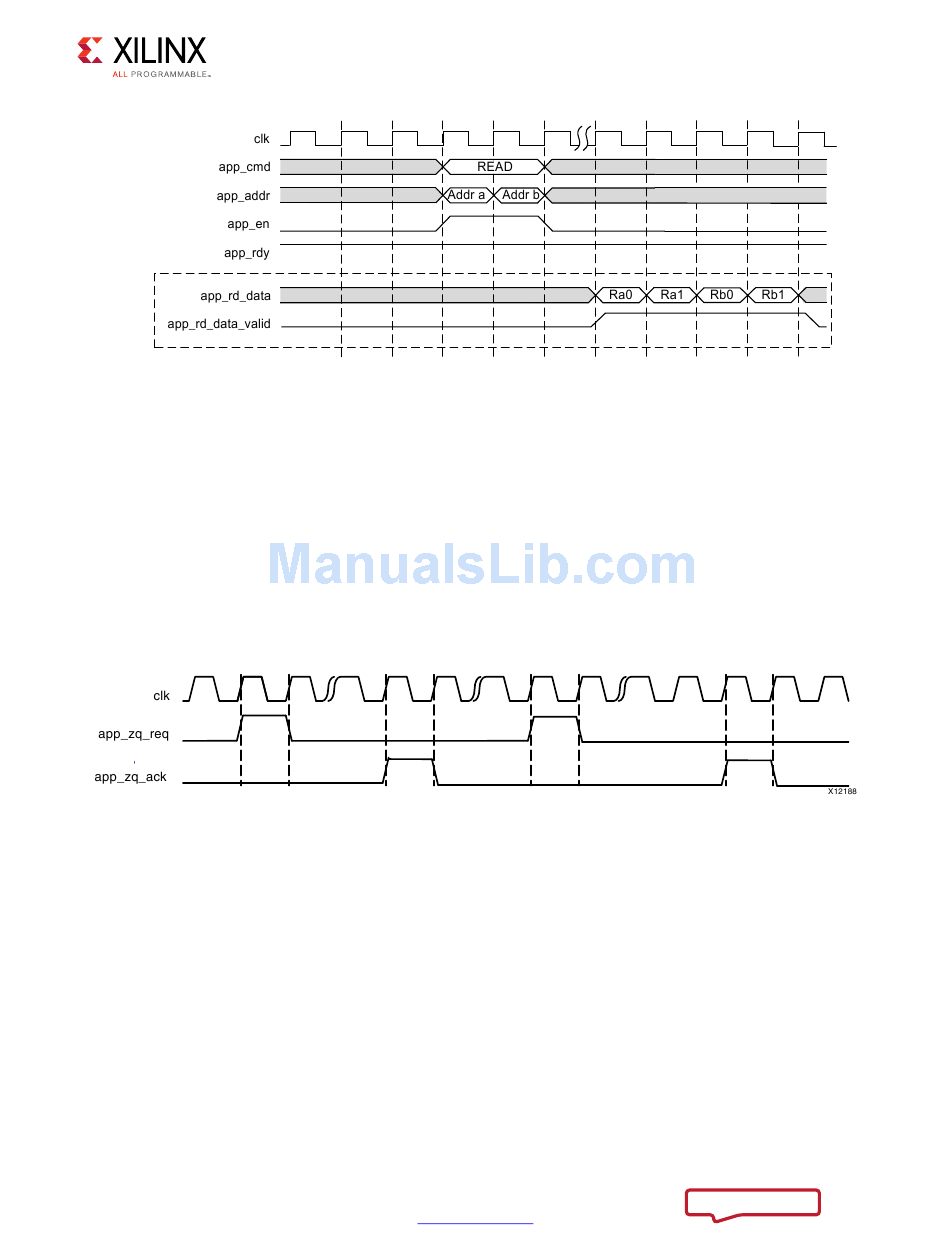

Figure 4-65: UI Interface Read Timing Diagram (Memory Burst Type = BL4 or BL8)
In Figure 4-65, the read data returned is always in the same order as the requests made on
the address/control bus.
User ZQ
For user-controlled ZQ calibration, the Memory Controller managed maintenance should
be disabled by setting the tZQI parameter to 0.
To request a ZQ command, app_zq_req is strobed for one cycle. When the Memory
Controller sends the command to the PHY, it strobes app_zq_ack for one cycle, after
which another request can be sent.
X-Ref Target - Figure 4-66
A user ZQ operation can be performed any time provided the handshake defined above is
followed. There are no additional interfacing requirements with respect to other commands.
However, pending requests affect when the operation goes out. The Memory Controller
fulfills all pending data requests before issuing the ZQ command.
Timing parameters must be considered for each pending request when determining when
to strobe app_zq_req to achieve the desired interval if precision timing is desired. To
account for the worst case, subtract tRCD, CL, the data transit time and tRP for each bank
machine to ensure that all transactions can complete before the target tZQI expires.
Equation 4-1 shows the ZQ request interval maximum.
tZQI
(
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 4: LPDDR2 SDRAM Memory Interface Solution
Figure 4-66
Figure 4-66: User ZQ Interface
tRCD CL 4 tCK
( ( ( ) ×
– + +
www.xilinx.com
illustrates the interface.
tRP nBANK_MACHS
) ) ×
+
)
Equation 4-1
